Xpres SubliJet R Ricoh SG7100DN (Windows Power Driver Setup): Print & Setup Guide CorelDRAW X5 - X6 - Manual (Page 5)

PAGE 5 of 6 >>
SubliJet-R: Ricoh SG 7100DN - PowerDriver-R
Setup and Print Guide: CorelDRAW X5 & X6
Printing from CorelDRAW with PowerDriver R SG 7100DN
7.) With the correct colour settings entered, you are now ready to print. In the Menu Bar, click File > Print.

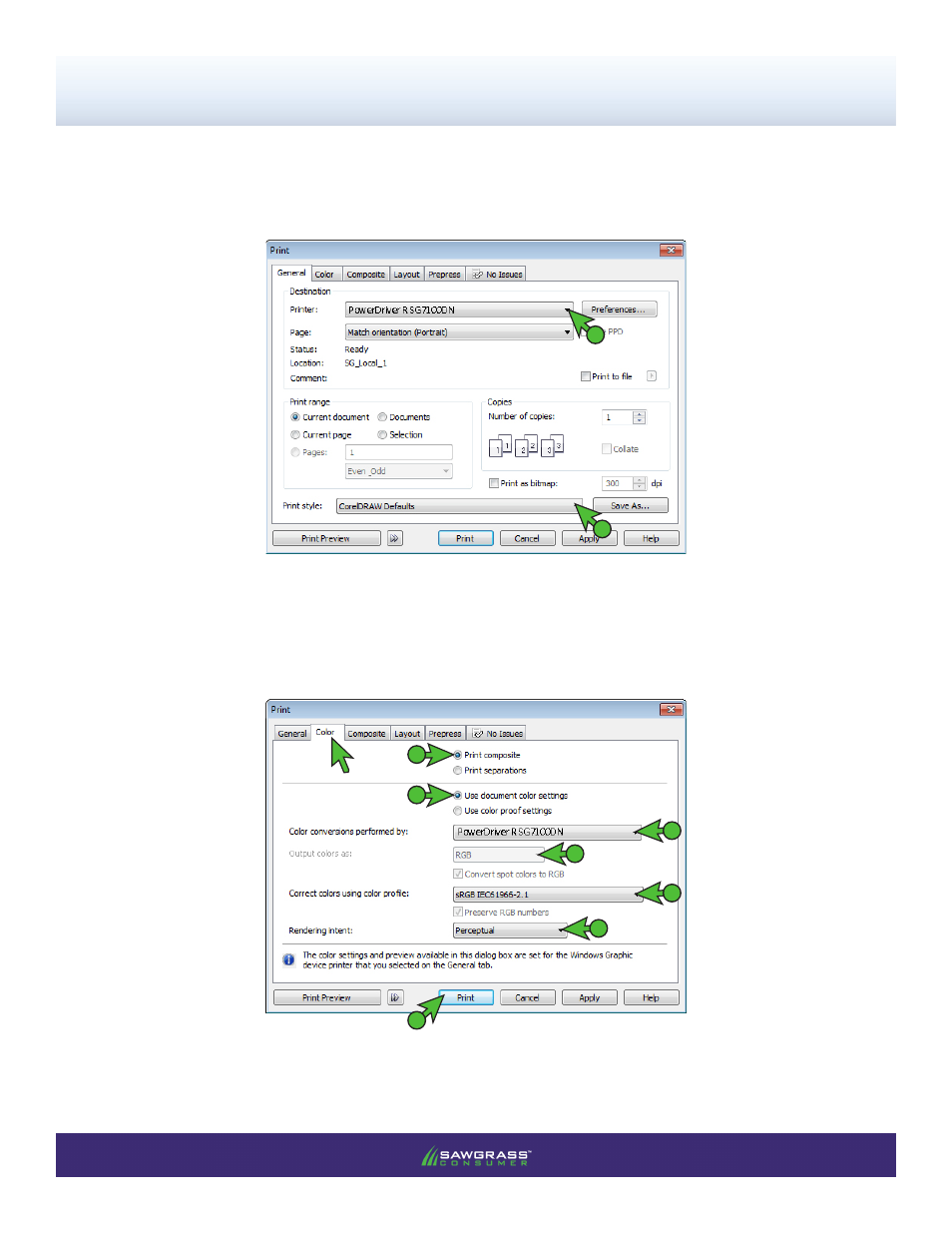

In the Print window, match your settings to those shown below (see FIGURE 7).
A
B
A. Printer: PowerDriver R SG7100DN
8.) In the Print window, click the Color tab and match your settings to those shown below (see FIGURE 8).
A
B
C
F
D
E
FIGURE 8
FIGURE 7
G
B. Print style: CorelDRAW Defaults
A. Select the radio button Print composite
B. Select the radio button Use document color settings
