SubliJet-R: Ricoh SG 7100DN - WinProfile
Setup and Print Guide: Elements 8, 9, 10 & 11
PAGE 3 of 4 >>

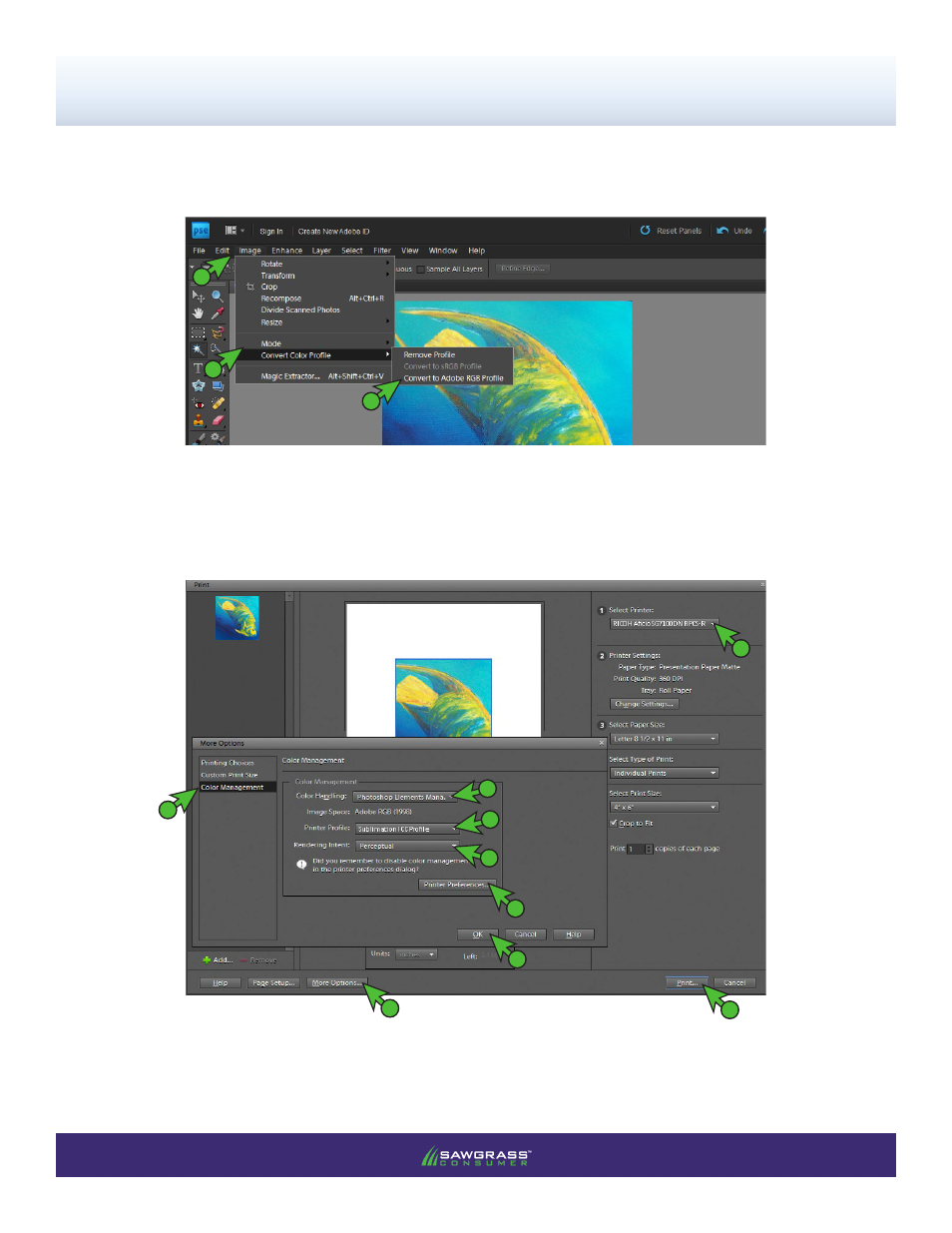

4. Also, once an image has been opened or imported in Elements, you will need to configure the embedded
profile. In the menu bar, click Image > Convert Color Profile > Convert to Adobe RGB Profile (see
FIGURE 4).
FIGURE 4
Printing from Elements with the Ricoh SG 7100DN
5.) With the correct colour settings entered, you are now ready to print. In the Menu Bar, click File > Print.
This will open the Print window. Match your settings to those shown below: (see FIGURE 5)
FIGURE 5
B. Click More Options...
C. Click Color Management
A. Select Printer: RICOH AficioSG7100DN RPCS-R
1
2
A
B
C
E
F
D
G
H
I
3
