Xpres SubliJet R Ricoh SG7100DN (Windows ICC Profile Setup): Driver Configuration - Manual (Page 4)

SubliJet-R: Ricoh SG 7100DN - WinProfile
Configuration Guide
PAGE 4 of 4 >>

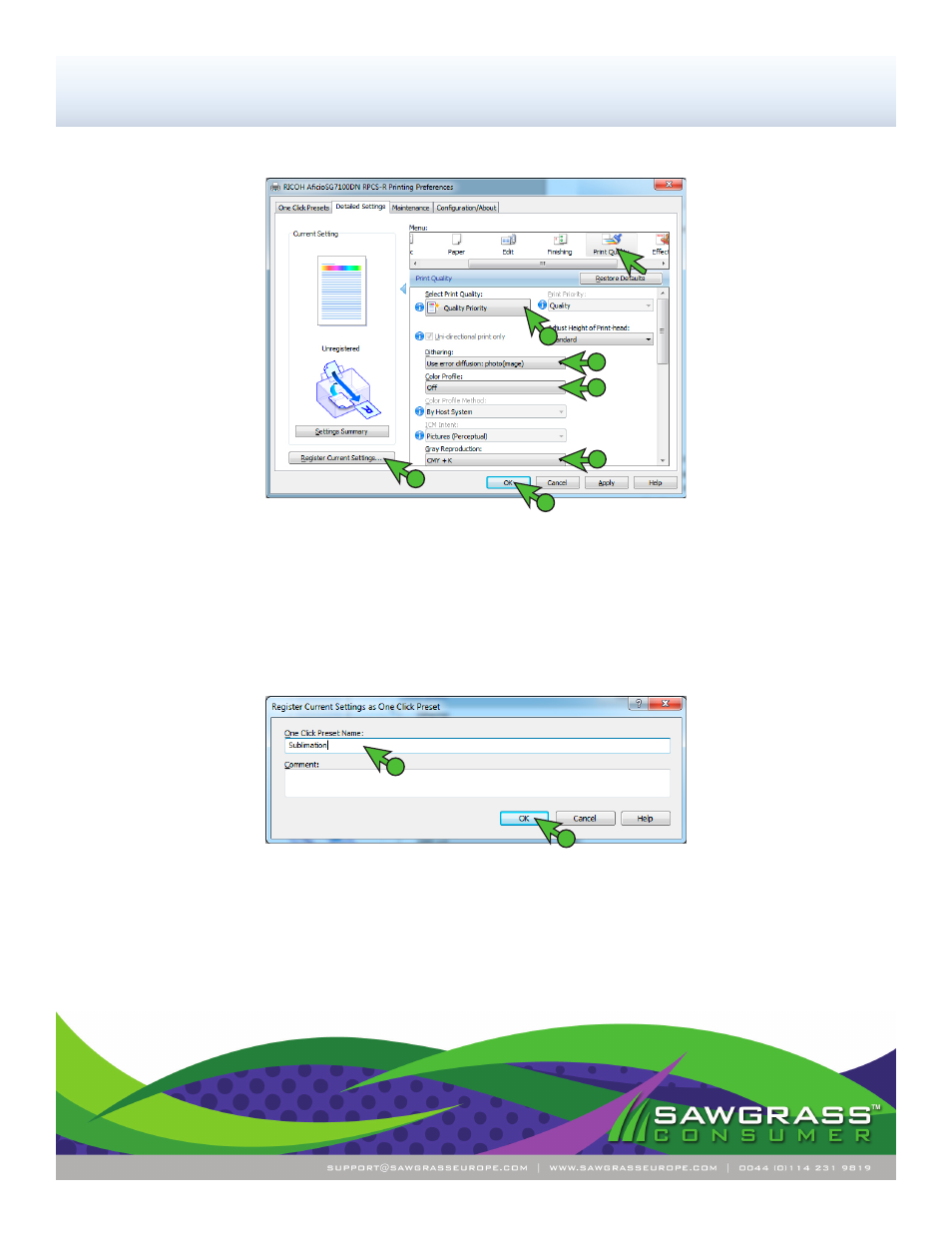

E. Click Register Current Settings (see FIGURE 7). Name your new preset and click OK to
continue (see FIGURE 8).
1
2
FIGURE 8
F. Click OK to complete the configuration (see FIGURE 8)
Congratulations! The SubliJet-R Ricoh SG 7100DN WinProfile configuration is now complete. Please
proceed to the Print Setup Guide that corresponds with your printer model and graphics software.
6.) C lick the Print Quality icon and match your settings to those shown below: (see FIGURE 7)
A
D
C
B
F
E
FIGURE 7
A. Select Print Quality: Quality Priority
B. Dithering: Use error diffusion: photo(image)
C. Color Profile: Off
D. Gray Reproduction: CMY + K
