Ricoh SG 7100DN - MacProfile
Setup and Print Guide: Photoshop CS, CS2, CS3, CS4 & CS5

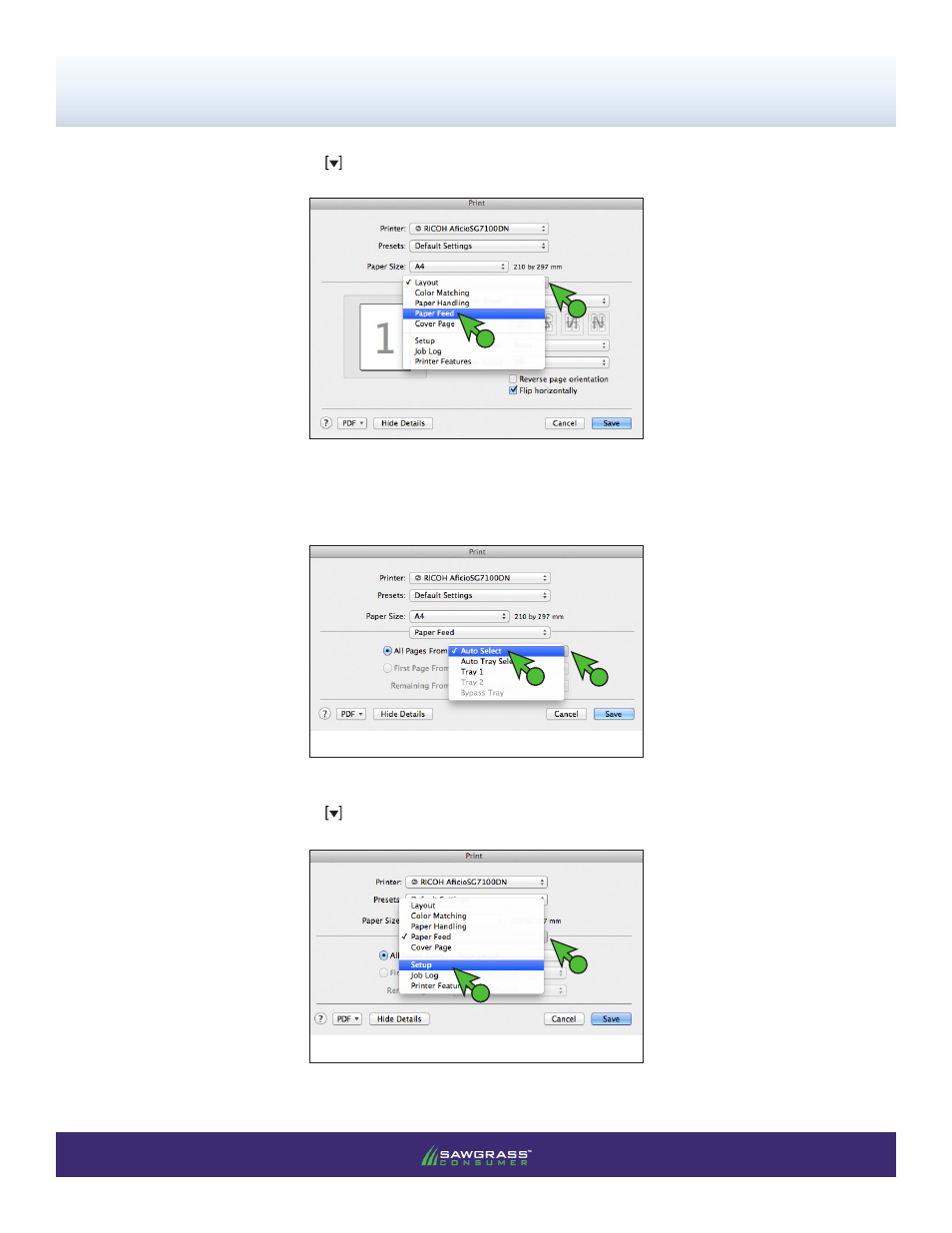

7.) In the paper feed window you are able to select the printer’s paper source. We recommend using Auto
Select unless you have purchased a Bypass Tray. For those users printing with a Bypass Tray, you will
instead select
Bypass Tray (see FIGURE 9).
FIGURE 9
8.) Click the drop-down arrow and select Setup (see FIGURE 10). This will open the Setup window (see
FIGURE 11).
FIGURE 10
2 1
2
1
6.) Click the drop-down arrow and select Paper Feed (see FIGURE 8). This will open the Paper Feed
window (see FIGURE 9).
FIGURE 8
1
2
