Xpres SubliJet R Ricoh SG7100DN (Mac ICC Profile Setup): Print & Setup Guide Illustrator CS - CS6 - Manual (Page 4)

Ricoh SG 7100DN - MacProfile
Setup and Print Guide: Illustrator CS, CS2, CS3, CS4, CS5 & CS6
PAGE 4 of 12 >>

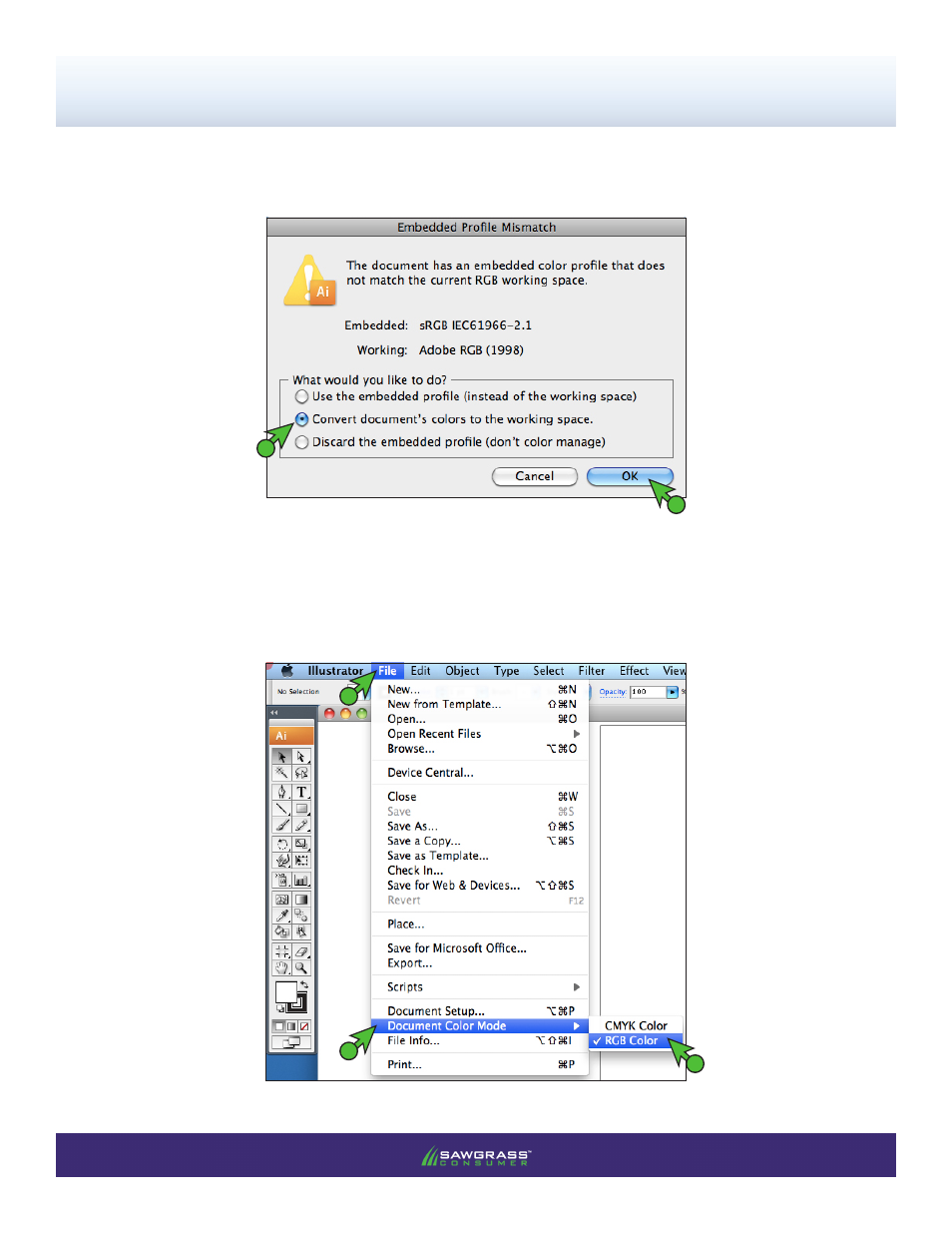

5.) Once an image has been opened or imported into Illustrator, you will need to ensure that RGB color
mode has been selected. In the menu bar, click
File > Document Color Mode > RGB Color. A check
mark should now be visible beside RGB Color (see FIGURE 6).
FIGURE 6
1
3
2
FIGURE 5
4.) When opening images you may encounter an Embedded Profile Mismatch warning. In this instance,
select the radio button
Convert document’s colors to the working space and click OK to continue
(see FIGURE 5).
NOTE: Always choose to use or convert to Adobe RGB (1998).
2
1
