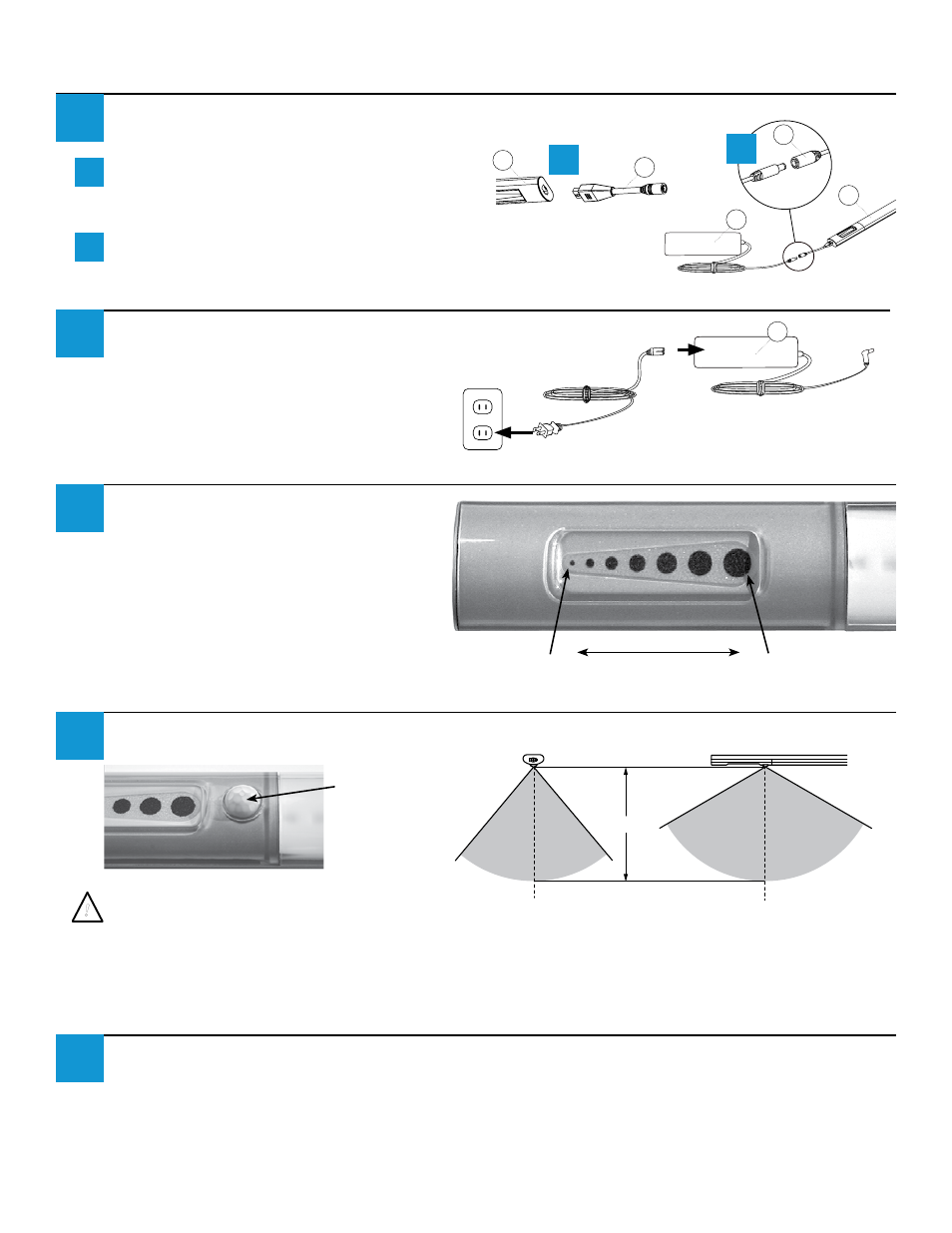

Workrite Ciglio LED Under-Cabinet Parent Lights - Assembly Instructions
#1500189 Rev B
Attach Parent to Transformer
Insert Power Adaptor Cable (D) into either
end of the fixture or at either end of the
daisy chain system.
Connect Power Adaptor Cable (D) to
Transformer (C).
Replacement parts
Occupancy Sensor Models
Universal Mounting Kit ..................................CIG-MOUNT
Power Adapter .............................................CIG-CABLE-PWR
48 W Transformer .........................................TR-48242000-A-RF5.5
Plug Transformer into Wall Outlet
Test the Touch Strip Control
Use the Touch Strip to turn light on
or off and to adjust brightness. To
turn the light on or adjust brightness
simply touch the strip and slide your
finger to the desired brightness. To
turn off, touch the smallest dot.
Note: Install fixture to ensure occupant
is within sensor range as illustrated.
Sensor turns light off after 15 minutes
of inactivity and instantly back on when
activity is detected.
!
0˚
0˚
60˚
40˚
40˚
60˚
96"
2
3
C
C
b
D
A
A
a
D
4
a
b
Off Dimming On
Occupancy
Sensor
(select models)
slide
full brightness
i
5
Occupancy sensor range
and field of view
