41

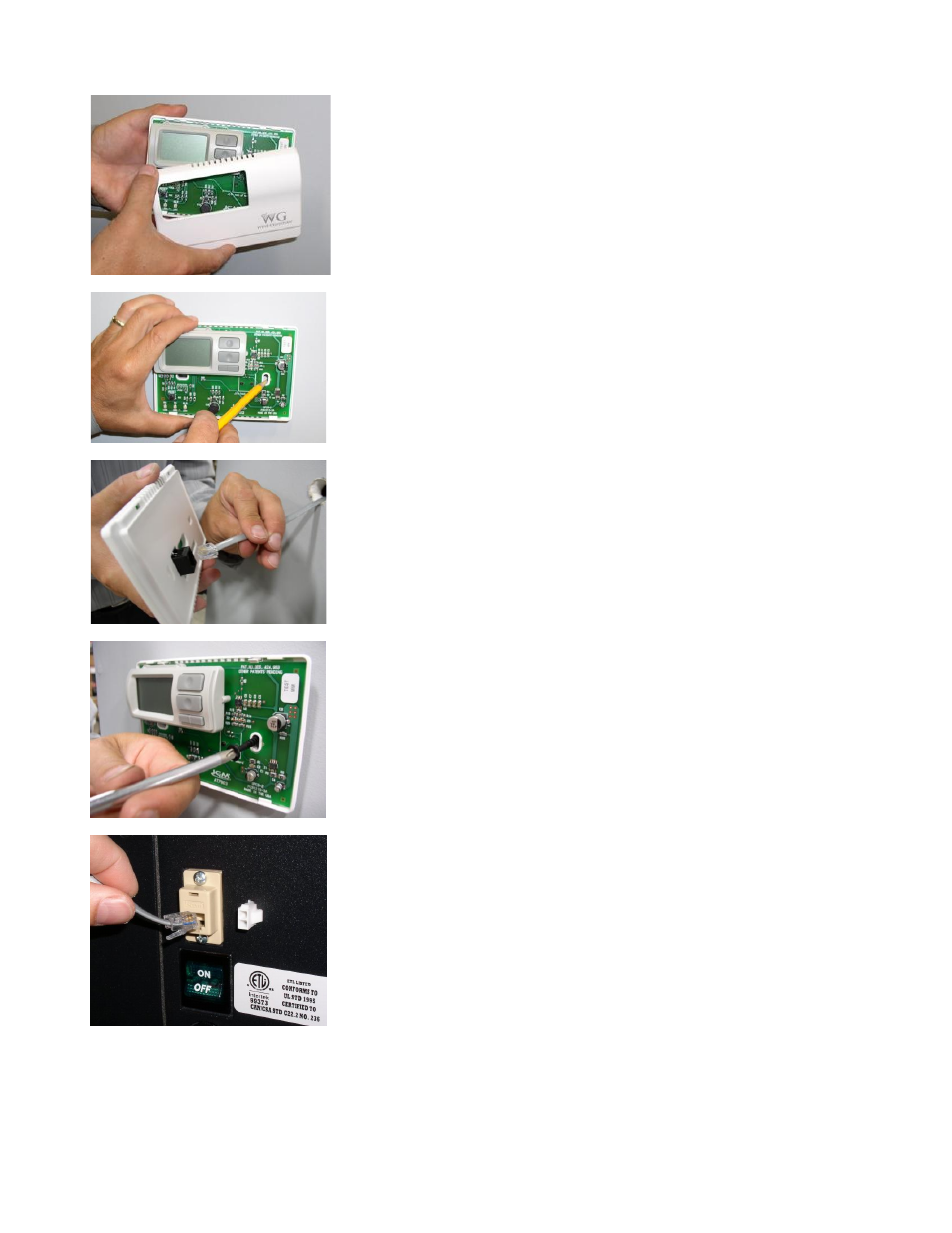

2. Remove the back plate of the controller and mark the
mounting points at the desired location. (Fig. 2)
a) Mark the location of the communication
cable connection as this area will require
sufficient clearance, for instance, a 1½” hole in
the wall for flush mounting of the back plate.
(Fig. 3)
3. Drill two 1/8” holes and insert anchors (provided)
within the mounting surface. Anchors may not be
required if securing to a wall stud or racking system.
4. Plug in the communication cable to the back of the
remote interface controller backing plate. (Fig .4)
a) Attach backing plate to wall using the two screws
provided with the system. (Fig .5)
5. Re-install plastic face plate on to backing plate.
6. Re-attach the communication cable to the side of the
Wine Guardian cooling unit. (Fig. 6)
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
