VRM SERIES
US Cellar Systems / 3070 Golden Ave, Long Beach, CA 90806 / www.uscellarsystems.com
(562) 513-3017 phone and fax / [email protected]

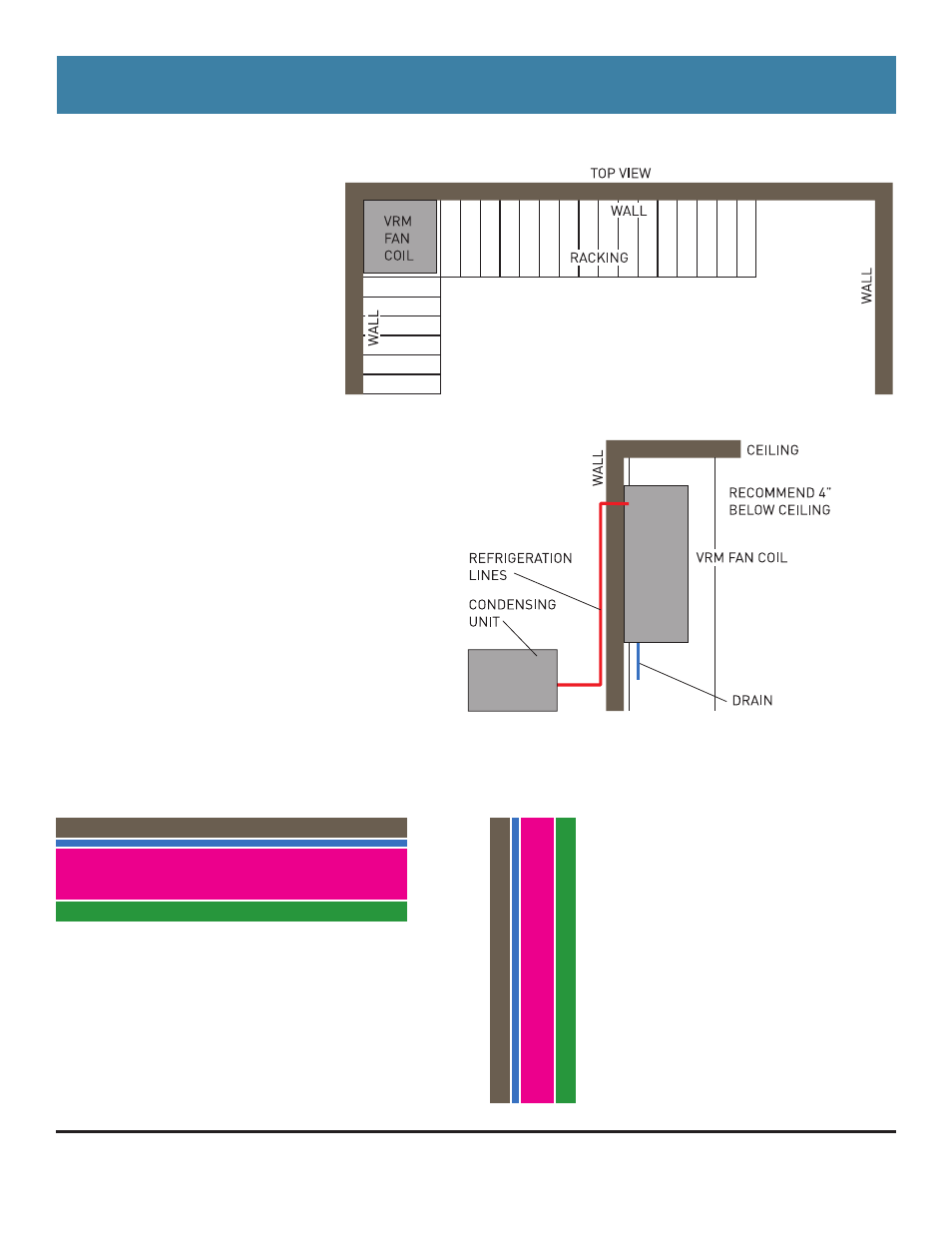

VRM Cooling System Typical Installation
• Keep line sets as short as possible.
• Excessive number of turns will
cause refrigerant flow problems.
This could cause early compressor
failure. Suction line accumulators are
recommended. Required if working
lower than the normal 55-65°
operating range from wine cellar
• Drain line must always flow downhill
to drain or pump
• The system is controlled by a pump
down control system. There is no
control wiring between thermostat
and condensing unit
• The line connections at Fan Coil and
Condensing Unit may not be the
same as the required line sizes
• Standard line sets should be 50’
or less. Extended runs may require
larger line sizes and 3oz. oil must be
added for every 10’ over 35’
(;7(5,25
9$325%$55,(5
,168/$7,21ದ
525%(77(5
,17(5,25
(;7(5,25
9$325%$55,(5
,168/$7,21ದ
525%(77(5
,17(5,25
Wall Construction Ceiling Construction
