RM SERIES
US Cellar Systems / 3070 Golden Ave, Long Beach, CA 90806 / www.uscellarsystems.com
(562) 513-3017 phone and fax / [email protected]

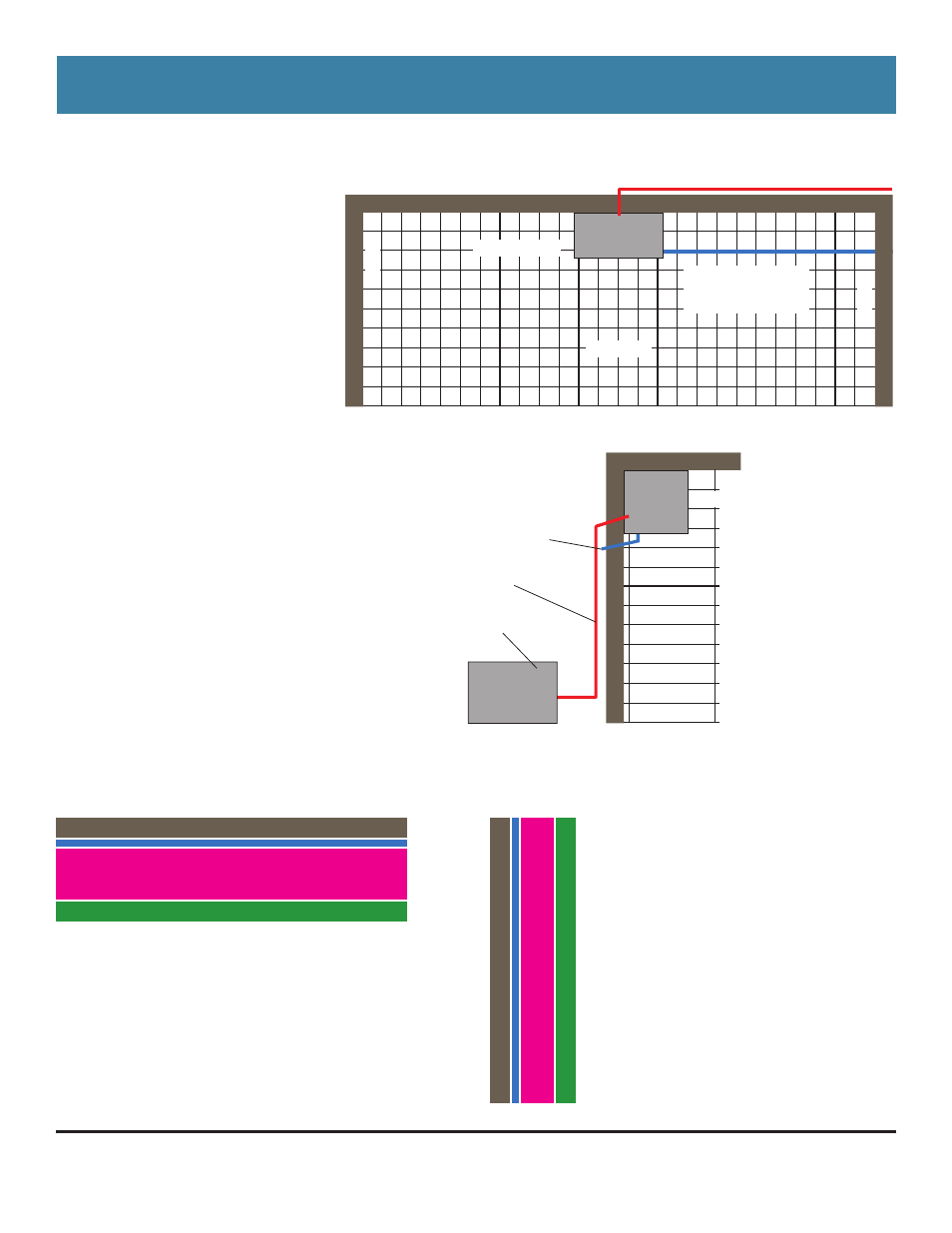

RM Cooling System Typical Installation
• Keep line sets as short as possible.
• Excessive number of turns will
cause refrigerant flow problems.
This could cause early compressor
failure. Suction line accumulators are
recommended. Required if working
lower than the normal 55-65°
operating range from wine cellar
• Drain line must always flow downhill
to drain or pump
• The system is controlled by a pump
down control system. There is no
control wiring between thermostat
and condensing unit
• The line connections at Fan Coil and
Condensing Unit may not be the
same as the required line sizes
• Standard line sets should be 50’
or less. Extended runs may require
larger line sizes and 3oz. oil must be
added for every 10’ over 35’
REFRIGERATION LINES
CEILING
RACKING
RC FAN COIL
DRAIN LINE
LEAVE 2” ON EACH
SIDE AND BELOW
REFRIGERATION
LINES
CEILING
CONDENSING
UNIT
W
ALL
RACKING
DRAIN LINE
RC FAN COIL
W
ALL
W
ALL
(;7(5,25
9$325%$55,(5
,168/$7,21ದ
525%(77(5
,17(5,25
(;7(5,25
9$325%$55,(5
,168/$7,21ದ
525%(77(5
,17(5,25
Wall Construction Ceiling Construction
