Rm series
OPTIONS
• Twin and triple evaporator
systems for larger applications
• Eco-friendly water-cooled
condensing units available
• Stainless steel cabinets for
high-corrosive environments
FEATURES
• High-performance staggered coils with copper tubing mechanically
expanded into aluminum fins
• Insulated rust-proof aluminum housing
• Thermally protected permanently lubricated motor
• Automatic expansion valve (standard) ensures constant coil
temperature to promote “Humidity Balance”
• Pump-down solenoid valve (standard) protects compressor in the event
of leaks
• Pre-installed valves eliminate additional wiring to thermostat
• Pressure tested by the manufacturer to ensure quality
• Factory wired for simple field installation
• ETL certified

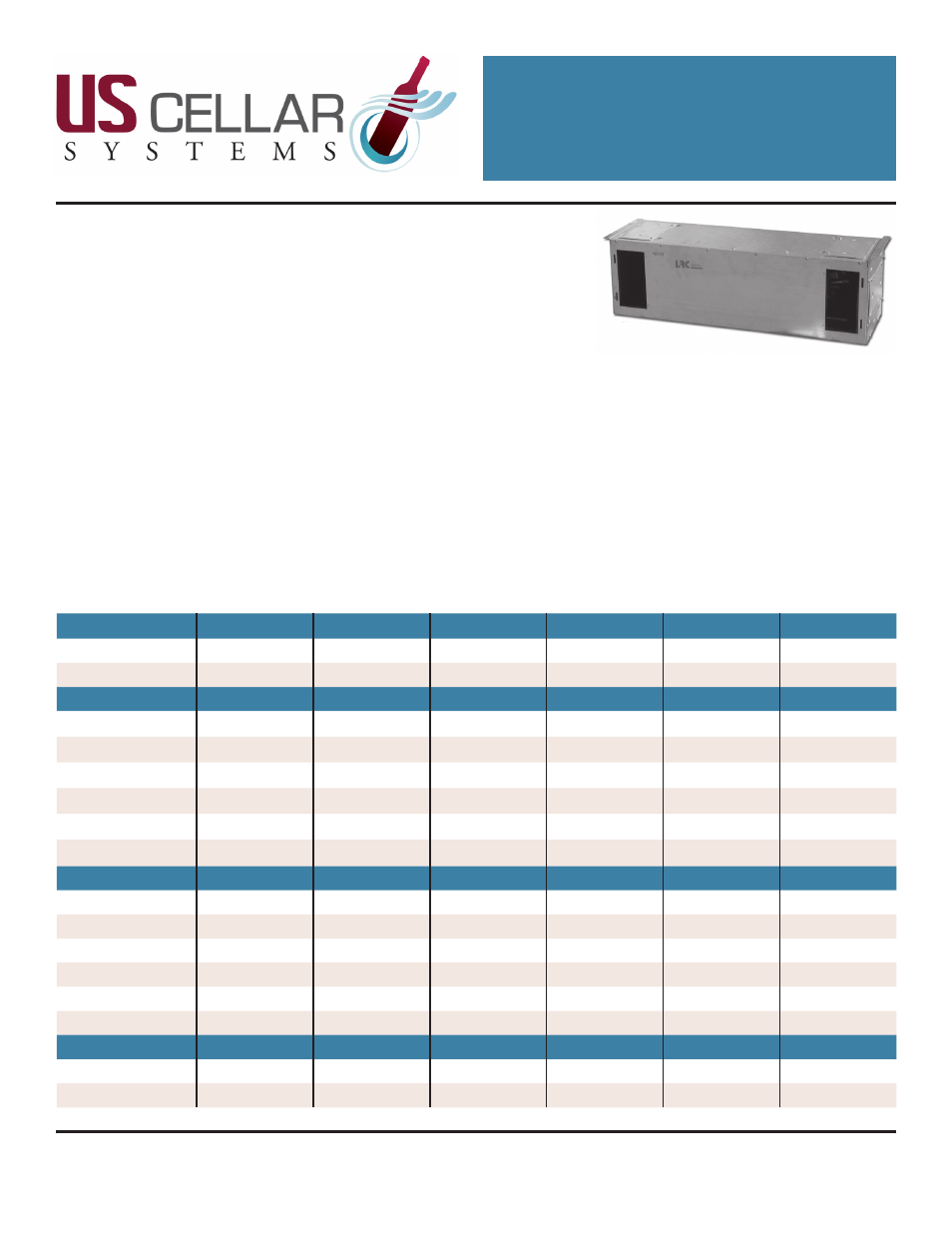

RM SERIES
Rack Mounted / Air or Water Cooled
Single Evaporator Unit with Digital Controller
US Cellar Systems / 3070 Golden Ave, Long Beach, CA 90806 / www.uscellarsystems.com
(562) 513-3017 phone and fax / [email protected]
SYSTEM INFORMATION
The Rack Mounted (RM) Systems are
designed to provide refrigerated
air to medium-high temperature
spaces.
RM evaporators mount horizontally
and have multiple access panels to
direct or re-direct the supply and
return vents. These can be placed
in a soffit, between ceiling joists,
or on a wall. By far this is our most
versatile system and our biggest
seller.
RM evaporators are available in
standard capacities from 2,600 to
6,600 BTU per hour and are used
with R134a refrigerant.
Rack Mounted
RM2600
RM3600
RM4600
RM4600 HV
RM6600
RM6600 HV
Max Cubic Feet
300
650
1,000
1,000
2,000
2,000
BTUH
2600
3600
4600
4600
8600
8600
Fan Coil
RM25
RM35
RM35
RM50
RM50
RM65
Length
30”
36”
36”
36”
36”
42”
Width
11.125”
11.125”
11.125”
11.125”
11.125”
11.125”
Height
11.125”
11.125”
11.125”
14.38”
14.38”
14.38”
Weight
26 lbs
27 lbs
27 lbs
35 lbs
35 lbs
43 lbs
Volts
115 V
115 V
115 V
115 V
115 V
115 V
Amps
0.71 A
0.71 A
0.71 A
0.71 A
0.71 A
0.71 A
Condensing Unit
CU26
CU36
CU46
CU46
CU66
CU66
Length
17”
17”
13.8”
13.8”
20.6”
20.6”
Width
12”
12”
11.8”
11.8”
13.9”
13.9”
Height
9.4”
9.4”
9.7”
9.7”
13.2”
13.2”
Weight
41 lbs
42 lbs
18 lbs
18 lbs
83 lbs
83 lbs
Volts
115 V
115 V
115 V
115 V
115 V
115 V
Amps MFS
15 A
15 A
20 A
20 A
30 A
30 A
System Line Set
Suction
3/8”
3/8”
1/2”
1/2”
1/2”
1/2”
Liquid
1/4”
1/4”
1/4”
1/4”
1/4”
1/4”
BEST SELLERS
Due to continuing engineering improvements, specifications are subject to change without notice.
