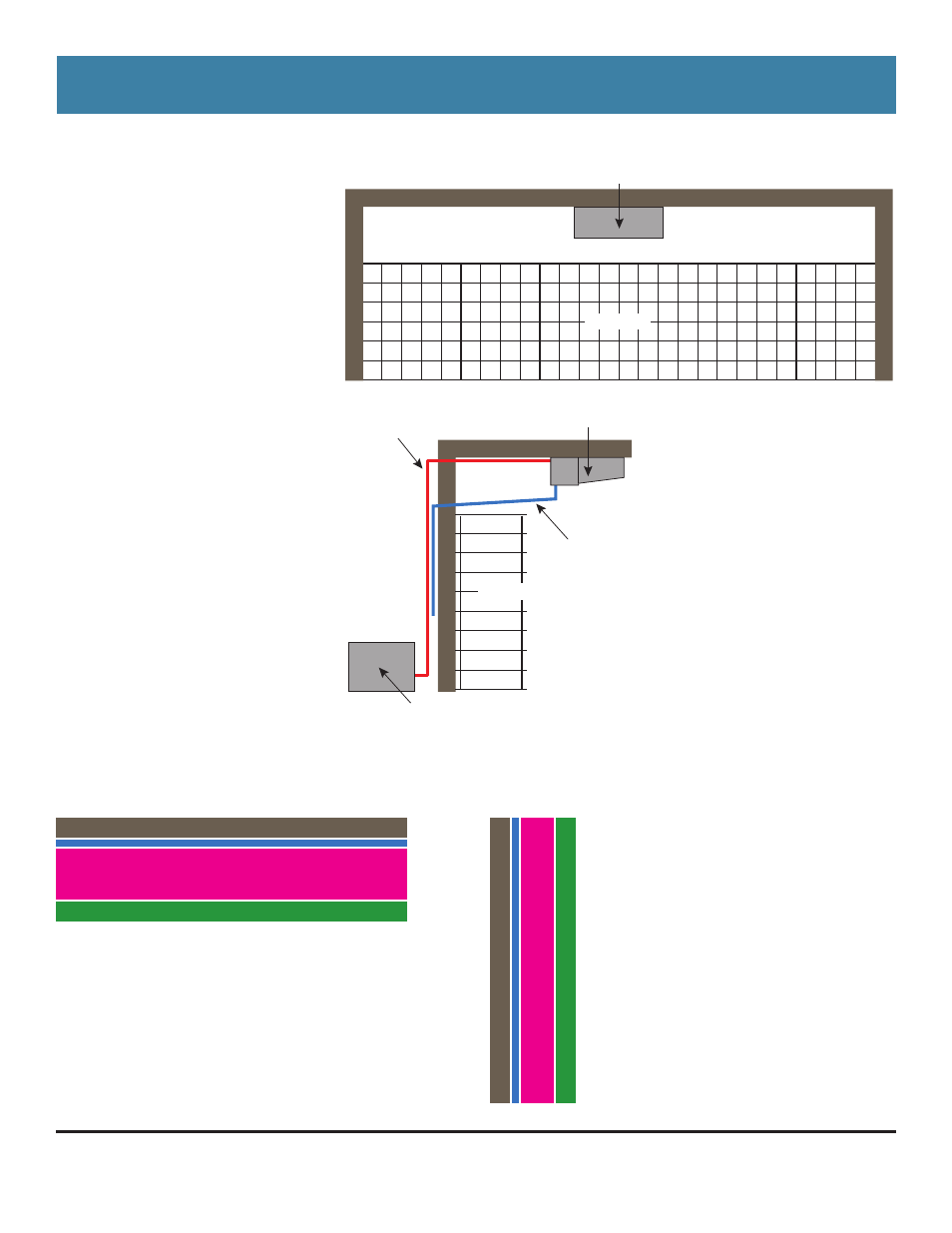

LPQ Cooling System Typical Installation
• Keep line sets as short as possible.
• Excessive number of turns will cause
refrigerant flow problems. This could
cause early compressor failure. Suction
line accumulators are recommended.
Required if working lower than the
normal 55-65° operating range from
wine cellar.
• Drain line must always flow down hill to
drain or pump
• The system is controlled by a pump down
control system. There is no control wiring
between thermostat and condensing unit
• The line connections at Fan Coil and
Condensing Unit may not be the same as
the required line sizes
• Standard line sets should be 50' or less.
Extended runs may require larger line
sizes and 3oz. oil must be added for
every 10' over 35'.
REFRIGERATION
LINES
CEILING
CONDENSING UNIT
WA
LL
LPQ FAN COIL
DRAIN LINE
LPQ FAN COIL
RACKING
RACKING
CEILING
WA
LL
WA
LL
LEAVE 2"ON EACH SIDE
AND 6" BELOW FOR
SERVICE INTERIOR
ACCESS
3" BEHIND FOR AIR
CIRCULATION
(;7(5,25
9$325%$55,(5
,168/$7,21ದ
525%(77(5
,17(5,25
(;7(5,25
9$325%$55,(5
,168/$7,21ದ
525%(77(5
,17(5,25
Wall Construction Ceiling Construction
March 29, 2012 10:39 PM
