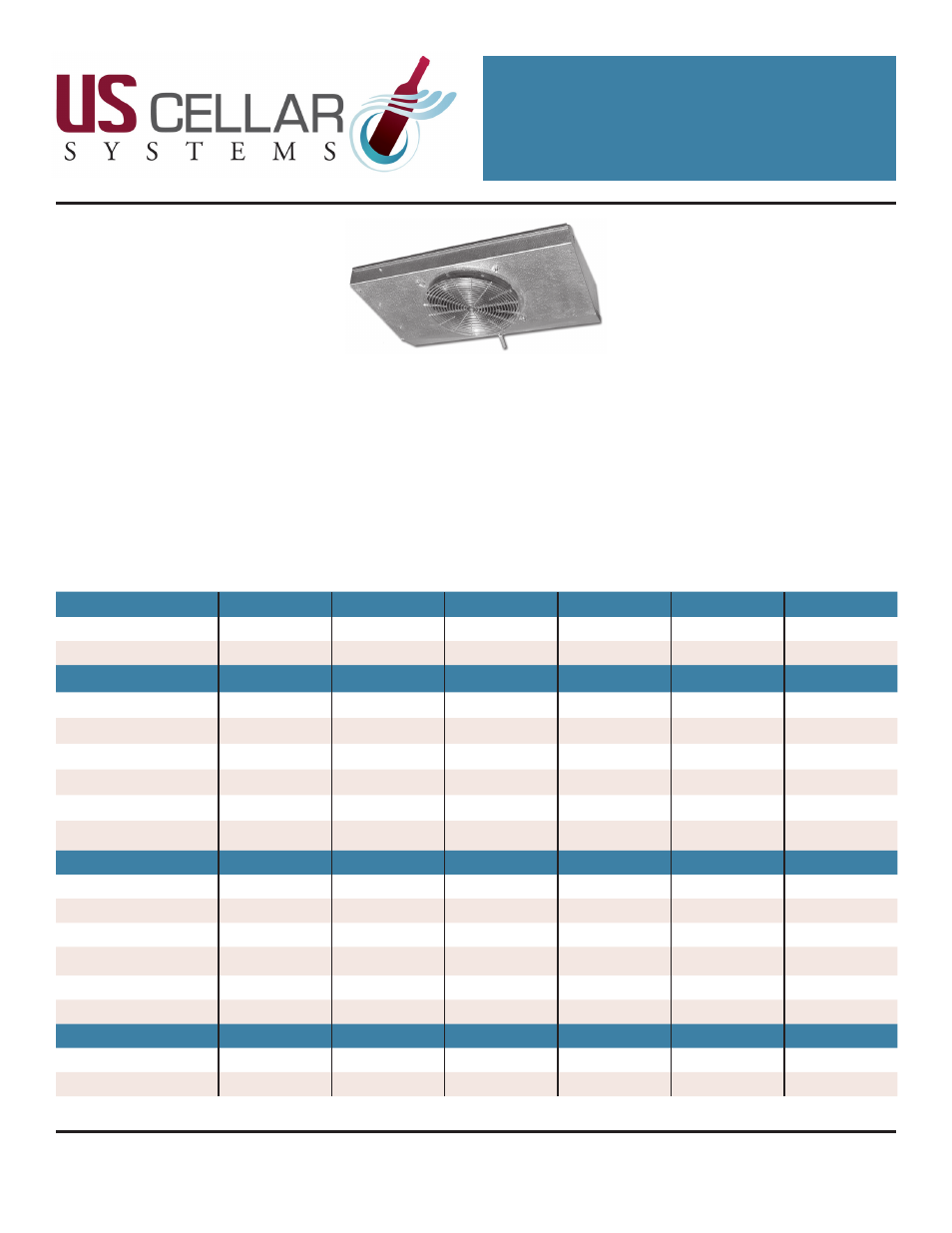

Vintage Cellars LPQ Series Split System User Manual
Lpq series

FEATURES
• Textured heavy-guage
aluminum cabinet
• Easily removable drain pan
• Molded fan guards and blades
• Thermal expansion valve
(standard) installed
• Pump-down solenoid valve
(standard) protects compressor
in the event of leaks
• Pre-installed valves eliminate
additional wiring to thermostat
• ETL certified
LPQ SERIES
Low Profile Quiet / Air or Water Cooled
Single Evaporator Unit with Digital Controller
US Cellar Systems / 3070 Golden Ave, Long Beach, CA 90806 / www.uscellarsystems.com
(562) 513-3017 phone and fax / [email protected]
SYSTEM INFORMATION
The Low Profile Quiet (LPQ) Systems
are designed to provide refrigerated
air quietly an dependably. LPQ Systems
are an excellent choice for quiet, long-
term storage and require very low
maintenance. These ceiling-mounted
units are excellent for vaulted rooms.
The LPQ supplies refrigerated air behind the coil down the wall and brings
return air in the angled front, promoting circulation.
LPQ evaporators are available in standard capacities from 1,800 to 8,600
BTU per hour and are used with R134a refrigerant.
OPTIONS
• Twin evaporator systems available for larger applications
• Eco-friendly water-cooled condensing units available
• Stainless steel cabinets for high-corrosive environments
Low Profile Quiet
LPQ1800
LPQ2600
LPQ3600
LPQ4600
LPQ6600
LPQ8600
Max Cubic Feet
175
300
650
1,000
1,500
2,000
BTUH
1800
2600
3600
4600
6600
8600
Fan Coil
LPQ17-13Q
LPQ27-18Q
LPQ27-23Q
LPQ37-32Q
LPQ47-42Q
LPQ57-55Q
Length
20.75”
24.25”
40.5”
40.25”
53.75”
53.75”
Width
14.5”
14.5”
14.5”
14.5”
14.5”
14.5”
Height
4.75”
4.75”
4.75”
4.75”
4.75”
4.75”
Weight
18 lbs
22 lbs
29 lbs
37 lbs
45 lbs
61 lbs
Volts
115 V
115 V
115 V
115 V
115 V
115 V
Amps
0.4 A
0.4 A
0.4 A
0.8 A
0.8 A
0.8 A
Condensing Unit
CU18
CU26
CU36
CU46
CU66
CU86
Length
17”
17”
17”
13.8”
20.6”
19.5”
Width
12”
12”
12”
11.8”
13.9”
14.3”
Height
9.4”
9.4”
9.4”
9.7”
13.2”
12.0”
Weight
41 lbs
41 lbs
42 lbs
48 lbs
83 lbs
79 lbs
Volts
115 V
115 V
115 V
115 V
115 V
115 V
Amps MFS
15 A
15 A
15 A
20 A
30 A
30 A
System Line Set
Suction
3/8”
3/8”
3/8”
1/2”
1/2”
5/8”
Liquid
1/4”
1/4”
1/4”
1/4”
1/4”
3/8”
BEST SELLERS
Due to continuing engineering improvements, specifications are subject to change without notice.
