Page 10/15
4.2 Operation with other sources of com-
pressed air
Basically, every source of air available can be used for operation of
the Ultra Flat Bags S.Tec as long as the pressure does not exceed
12 bar and that the air is free of oil as far as possible. Amongst

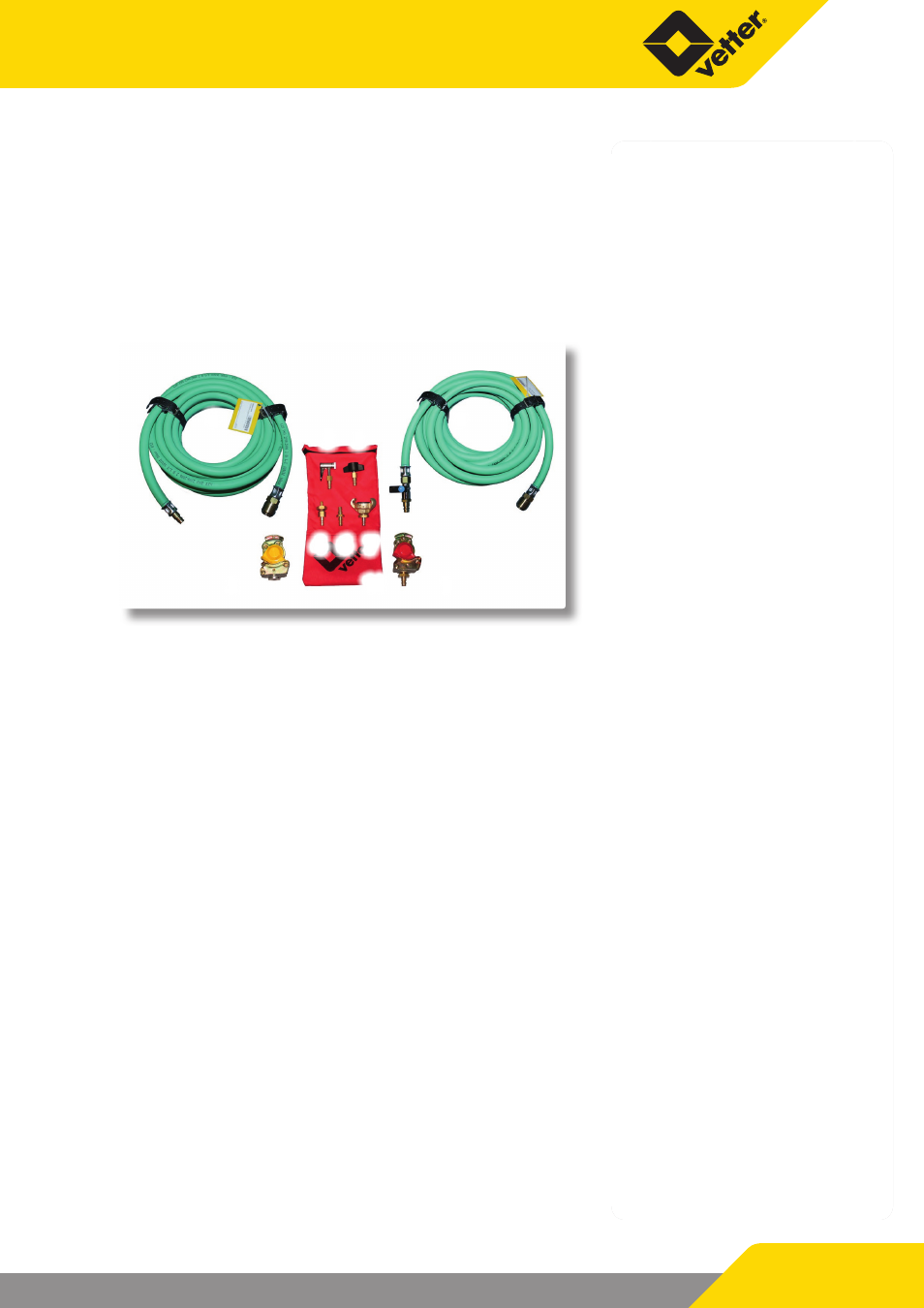

others, the set of transition pieces (Art. No.: 1600 0125 01) with
the following adapters are available for operation with other air
sources:
2 1
3
4
5
6 7
8 9
10
1. Truck compressed air connection, dual brake system.
For tapping air out of the trailer coupling head.
2. Dummy coupling
Seals off the control line of the brake system
Remember! Ensure that the truck does not roll, use brake
blocks!
3. Truck tyre inflation device adapter
For tapping off air from the so-called tyre inflation bottle
near the brake.
Remember! The tyre inflation connection must be ensu-
red by a safety valve as a standard (blow-off pressure ap-
proximately 7.5 bar)!
4. Truck tyre valve
Inflation with a normal hand or foot pump as well as other
air supplies for tyre inflation.
5. Truck tyre valve connection, can be clamped
For extracting air for the spare tyre.
6. Adapter for the local air pressure network.
7. Adapter Construction-site compressor
8. Air supply hose, 10 m, green.
9. Air supply hose, 10 m, green, with blocking valve.
10. Case, red
