- 54 -
2. The scale will display options “Impuls” and” Signal”. To select Pulse Mode press the T key when
“Impuls” is displayed, to select Signal Mode press the T key when “Signal” is displayed.

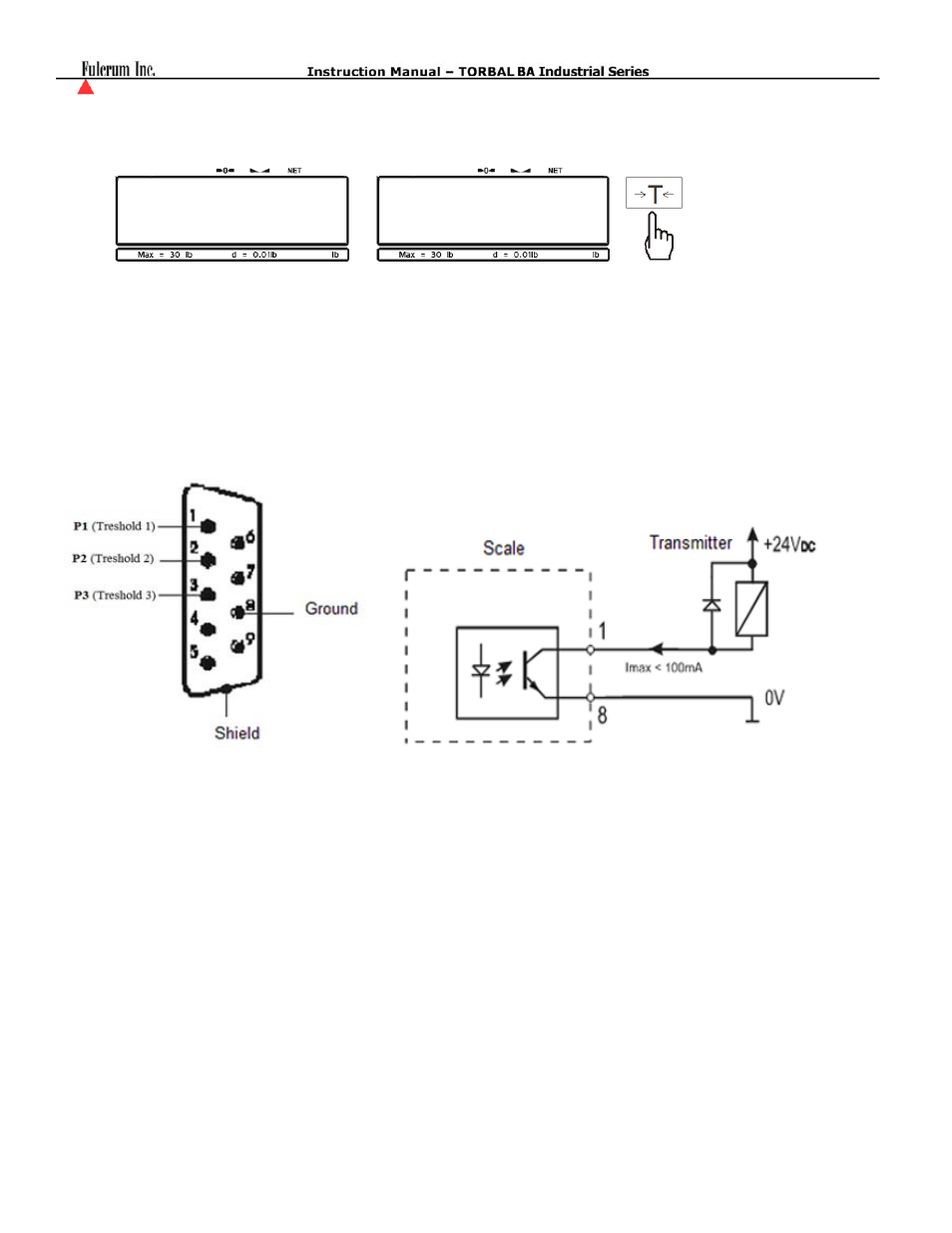

23.3. Opto-isolator Output
The outputs are open collector optically isolated switches. Each output has a current rating of 100.ma and an
open circuit collector voltage rating of 24 VDC. If the outputs are used to drive relays each relay should have
a flyback diode, with at least a 100.ma rating, to protect the drive transistor. If relays are used as buffers to
the sorting equipment be sure the contacts have adequate ratings and are properly protected from inductive
loads.
IMMPUL SIGNAL
