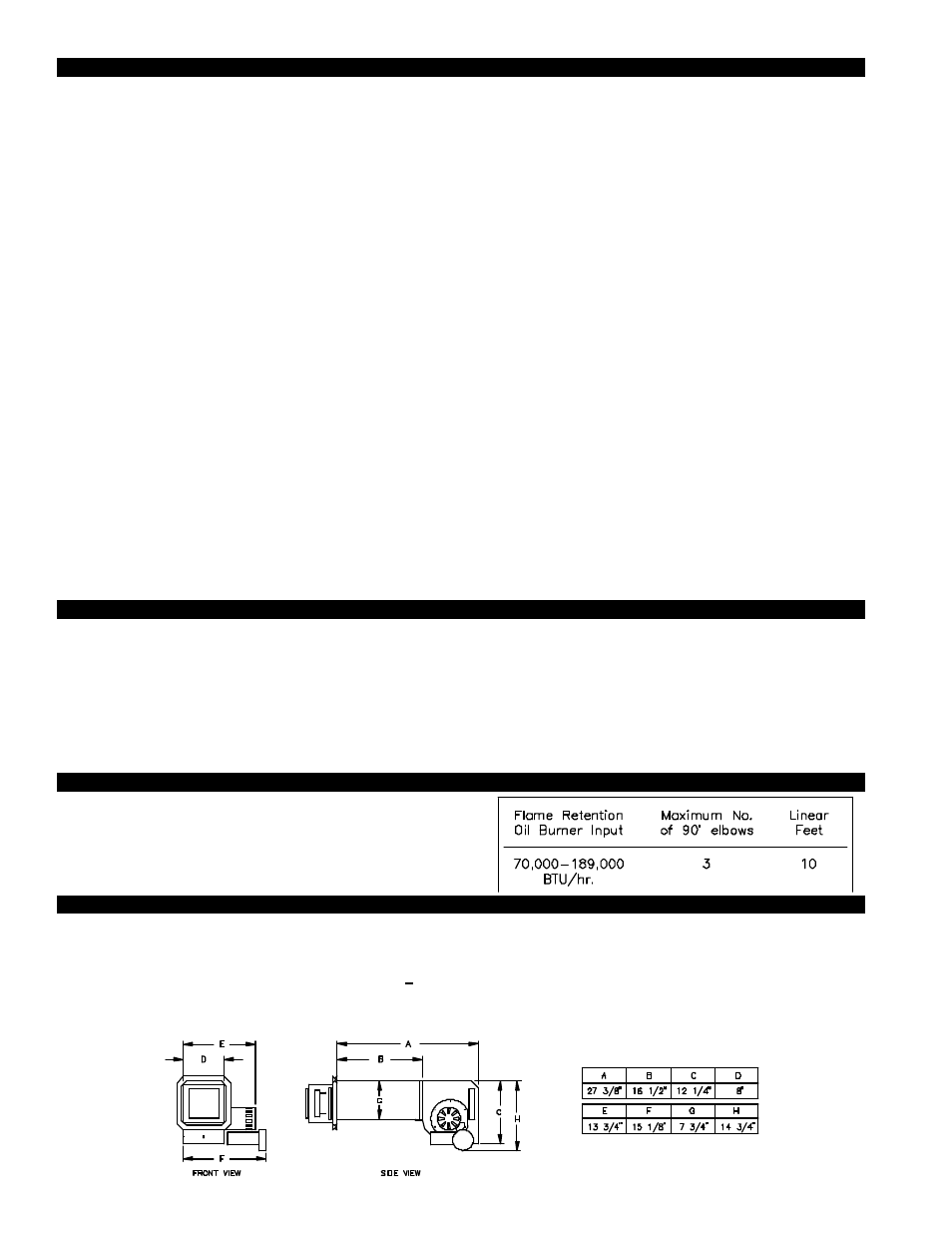

DESCRIPTION
The SS1-R is a mechanical vent system designed and listed for use with specified Rheem, Ruud, Weatherking and Heat
Controller oil fired furnaces. The SS1-R automatically vents the flue gases away from the oil furnace to the outdoors. By combin-
ing outside air with high-tech insulation and maintaining required clearances, surrounding combustible materials remain at safe
temperatures. After each burner cycle, the SS1-R and the burner motor will continue operating for an adjustable post-purge
period. The post-purge provides numerous system benefits, therefore, it is not recommended to reduce the post-purge time from
that which is set at the factory. The SS1-R also features a two way safety system consisting of a fan proving switch and a high
limit control. These devices monitor the SS1-R’s performance and will interrupt furnace operation if a malfunction is detected.
APPLICATION TABLE
Verify that the total BTU/hr. input of the heating appliance(s) fall
within the proper category listed below. All BTU/hr. capacity ranges
are based on a maximum of 10 linear feet of vent pipe with no more
than 3 - 90
0 elbows. (Two 45 0 elbows are equivalent to one 90 0 elbow)
SPECIFICATIONS
Motor: 115/1/60, 3300 RPM, 212 watts, 2.28 FLA
Fan Proving Switch: Non-adjustable set point of -.04" W.C., Contacts rated for an inductive load of 6.2 FLA at 120 VAC.
High Limit: Manual reset N/C contacts, open at 135oF + 10oF, Contacts rated at 10 FLA at 120 VAC.
Post-Purge Timer: Adjustable from 1 to 10 minutes. Dual voltage, non-polarity sensitive input (24-120 VAC).
Relay: (Mounted On junction box extension): SPST, N/O contacts rated at 12 FLA, 60 LRA at 120 VAC
Oil Solenoid Valve: ON - Off control of oil flow to burner; 3-8 second valve opening delay; 120 VAC, .115 Amps, 13.8 VA
