POWER INLET ASSEMBLY
CAT. NOS: PK20, PK30, PK50
INSTALLATION INSTRUCTIONS
IMPORTANT: Installation of this power inlet and related wiring must be done by a qualified electrician
in compliance with all applicable electrical codes.
Specifications:
Reliance
Power Inlet
Power Inlet
Cord Connector
Model
Rating
Configuration
Configuration
PK20
20 A., 125/250 VAC
NEMA L14-20
NEMA L14-20R
PK30
30 A., 125/250 VAC
NEMA L14-30
NEMA L14-30R
PK50
50 A., 125/250 VAC
CS6375
CS6364 or CS6364N
In this package, you will find the following parts:
Installation:
This power inlet assembly is designed to mount in a 2-1/2 inch trade size knockout opening in any Panel/Link
®
Series Reliance Transfer Panel, or comparable enclosure.
1. Locate and remove any convenient 2-1/2 inch trade size (3-inch diameter) knockout opening.
It may be on the side or bottom of the enclosure, but must be located a sufficient distance from
adjacent equipment or obstructions to permit insertion of the power cord connector from the
generator.
2. Raise the hinged cover and temporarily prop it in a 90 degree open position by inserting the 5/8
in. wide shim between the cover and the base, just beneath the hinge. This will permit easy

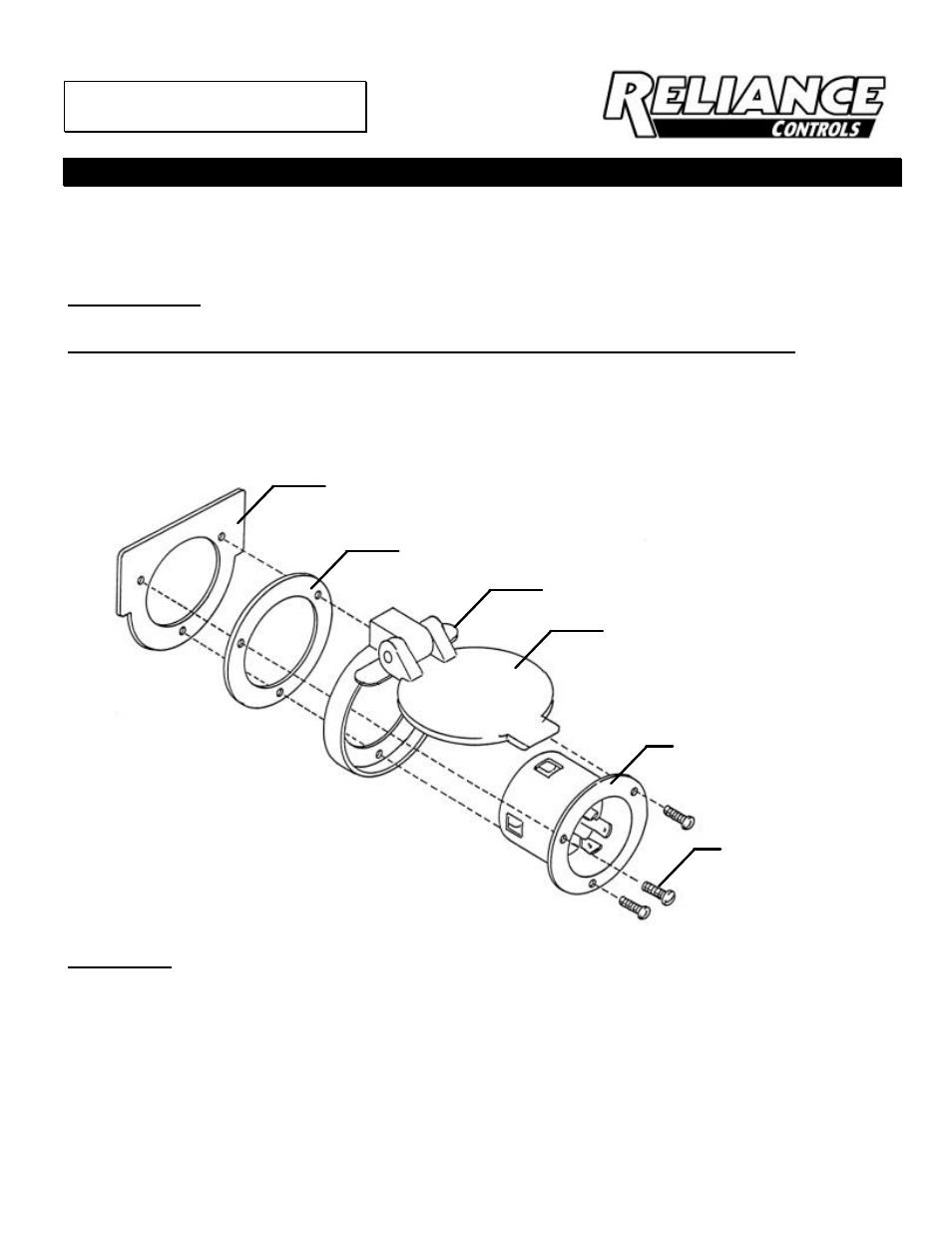

access to the mounting screws. See following diagram.
Mounting Bracket
(this is the only component
installed inside the enclosure)
Gasket
Shim
Hinged Cover
Assembly
Flanged
Power Inlet
Screws (3)
8-32 x 3/4"
