-5-
iCharger Synchronous Balance Charger/Discharger 306B
Unpack inspection
The following items are included in the package. Contact your supplier if any items are missing.
Standard items：
 One copy of the User‘s manual on CD
 One pair of output alligator clip leads（14AWG）
 One pair of input alligator clips and input leads with 4mm bullet connectors
 One temperature sensor lead (0 – 99℃(210 o F))
 Four rubber feet
 One exclusive Mini-USB data line(1.2 meter)
Optional items:
See details in ―Optional parts‖ (P31)

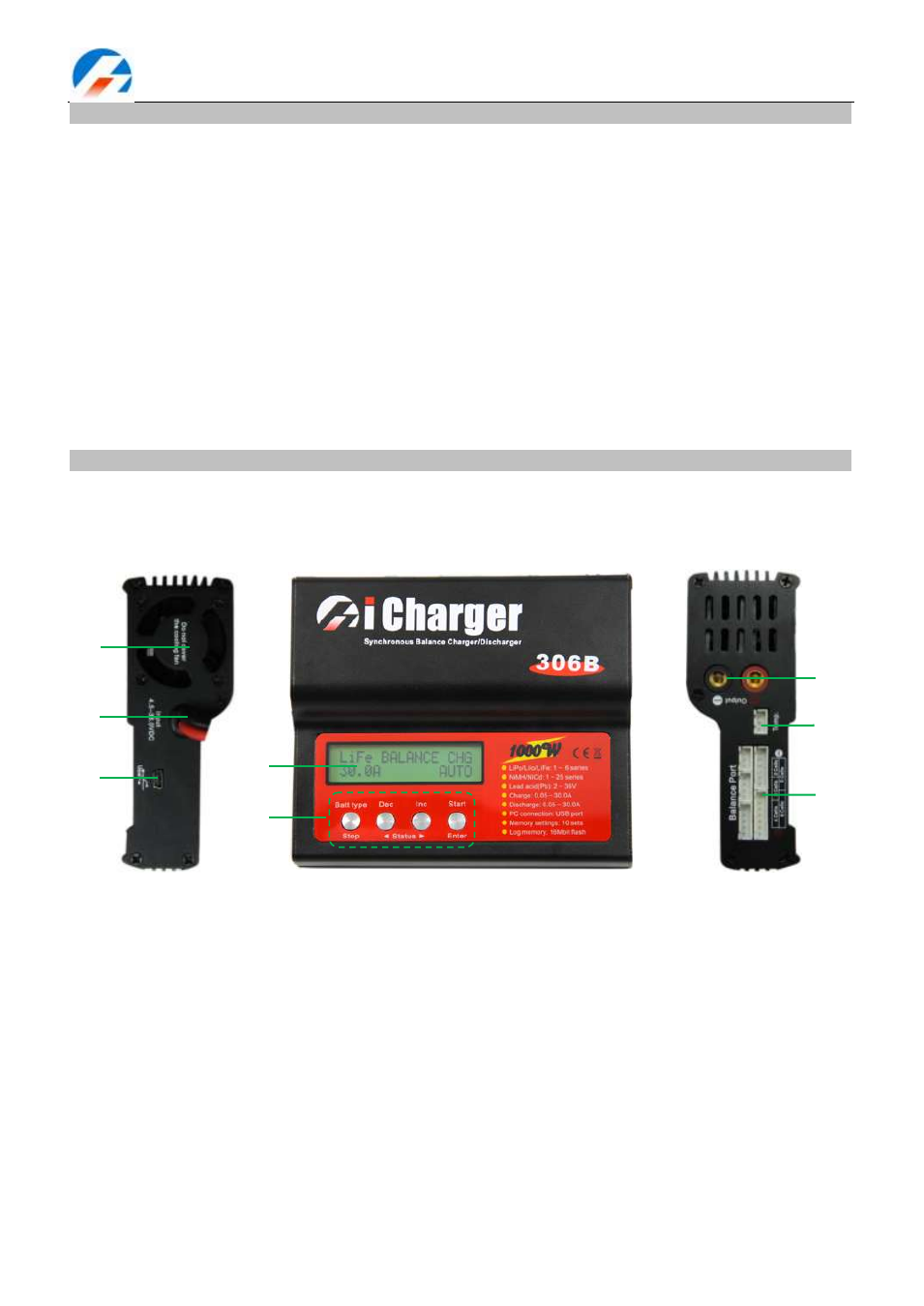

External controls and connections
306B
1. Cooling Fan 2. DC input 3. USB port 4. LCD screen 5. Function button
6. Output port 7. Temperature sensor port 8. Balance socket
①
⑤
④
⑦
⑧
③
②
⑥
