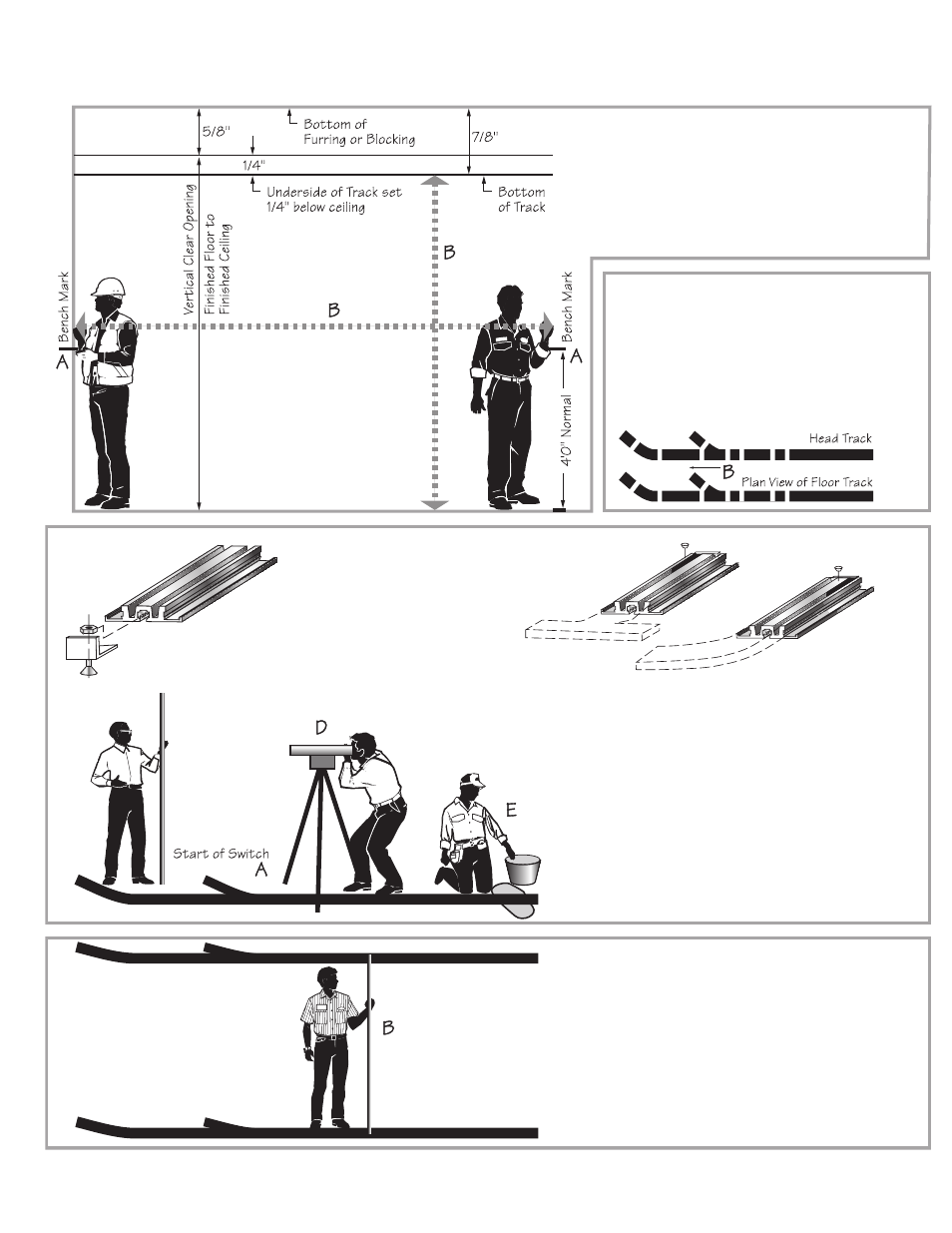

A). OBTAIN BENCH MARKS AT EACH
1.
JAMB (4’0” FROM FINISHED FLOOR)
FROM GENERAL CONTRACTOR.
B). CHECK OPENING FOR WIDTH
AND HEIGHT.
C). CHECK JAMBS FOR PLUMB.
A). LOCATE THE START OF SWITCH ON SHOP
DRAWING OR DATA SHEET. B). ESTABLISH
DIMENSION OF TRACK CENTER LINE TO LOCK
JAMB ON SHOP DRAWINGS OR DATA SHEET.
C). INSTALL FLOOR SWITCH AND TRACKS
STARTING AT THE “START OF SWITCH POINT
AND LOCK JAMB. D). SET TOP OF TRACK WITH
FINISHED FLOOR AND LEVEL WITHIN 1/8” –
USE TRANSIT OR WATER LEVEL AND
LEVELING WEDGES. E).PACK QUICK DRYING
CEMENT AROUND ALL TRACK ANCHOR
STRAPS ANDSWITCHES. F). DO NOT SET
PANELS UNTIL CEMENT IS HARD.
A). INSTALL TOP TRACK LEVEL AND
4.
PLUMB WITH BOTTOM TRACK.
B). USE A STORY POLE TO HOLD
VERTICAL OPENING DIMENSION
TO +1/4” TO –0”.
A). DOUBLE CHECK SHIP-
MENT BYLAYING OUT TRACK
2.
& ACCESSORIES IN ACCOR-
DANCE WITH ASSEMBLY
PRINT AND ACCESSORY LISTS.
B). TAILS OF TOP SWITCH
MUST FACE SAME DIRECTION
AS FLOOR SWITCH.
PRIOR TO INSTALLATION OF TAIL TRACK
3.
ATTACH STOP BY THREADING SCREW
INTO HEX NUT INSERTED INTO TRACK.
ATTACH NEOPRENE BUMPER STOP
IN OUTERMOST TRACK LANE,
SET AGAINST THE ANGLE STOP.
P W - 1 8 0 S L I D I N G M A L L F R O N T
I N S T A L L A T I O N I N S T R U C T I O N S
