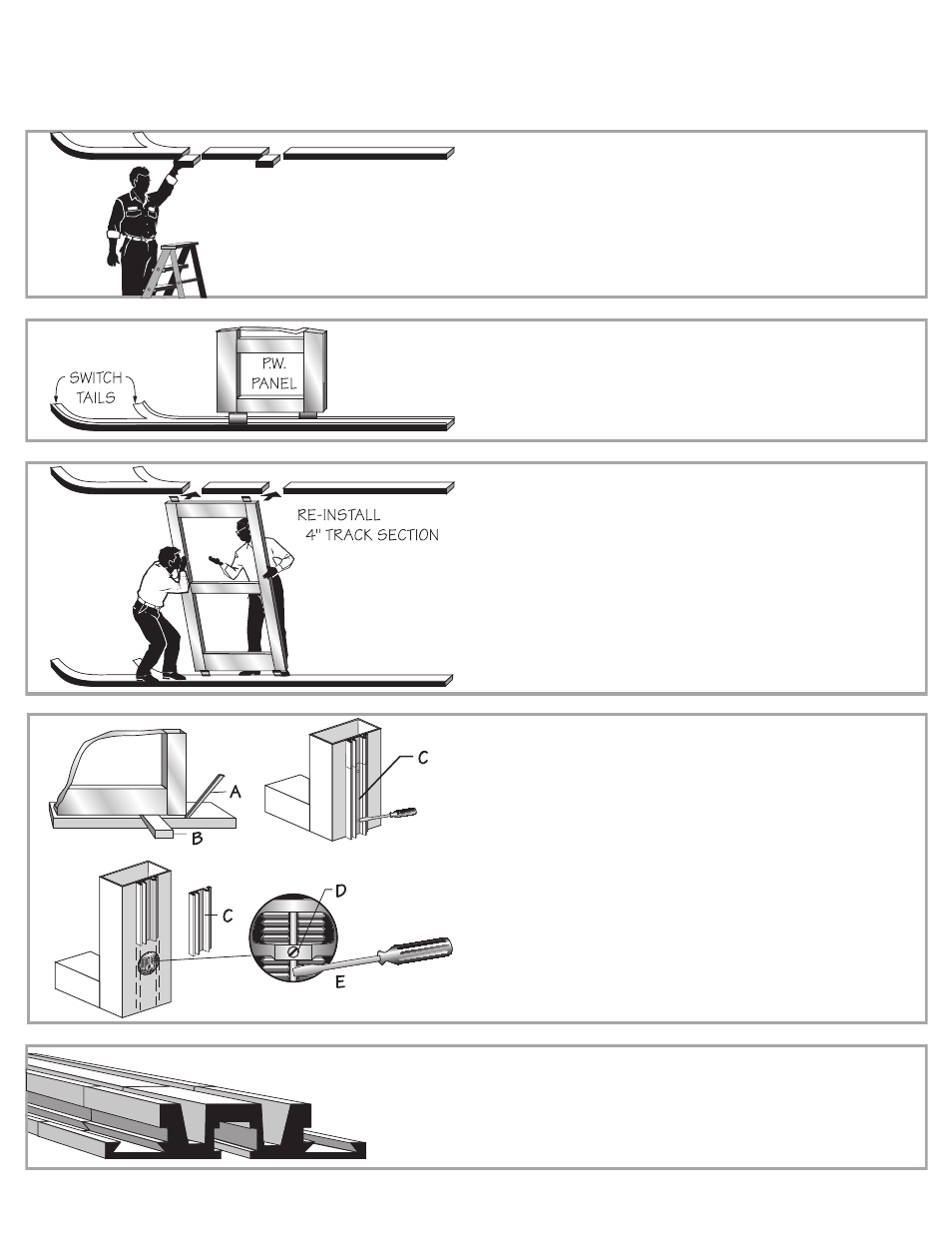

5.
TO INSTALL PANELS, REMOVE THE TWO
4” SECTIONS OF THE TOP TRACK.
INSERT BACK TAB IN GROOVE ON SAME SIDE
6.
AS SWITCH TAILS. INSERT TAB IN LEAD EDGE
OF PANEL IN GROOVE OPPOSITE THE SWITCH
TAILS. MAKE SURE TOP TABS ARE INSTALLED
THE SAME WAY.
INSTALL PANELS AS NUMBERED ON SHOP
7.
DRAWINGS OR DATA SHEET.
INSTALL PANELS WHERE 4” TRACK SECTIONS
WERE REMOVED
WITH THE FIRST PANEL INSTALLED, CHECK
SWITCH LAYOUT (IF APPLICABLE).
– PANEL SHOULD GO IN AND OUT OF
SWITCH FREELY.
– PANEL IN SWITCH SHOULD BE PARALLEL
TO THE STRAIGHT TRACK.
A). USE PRY BAR TO LIFT WEIGHT FROM ROLLER.
8.
B). INSERT WEDGE UNDER PANEL.
C).REMOVE 6” INTERLOCK PIECE
D). BACK OFF SET SCREW.
E). TO MOVE UPWARD, ROTATE BUSHING
CLOCKWISE WITH STANDARD SCREWDRIVER.
RE-TIGHTEN SET SCREW.
REPLACE 6” INTERLOCK PIECE
BOTTOM CLEARANCE IS PRE-SET AT 3/8”
(ADJUSTABLE UP TO 1/2”). TOP CLEARANCE IS
1/4” TO 3/8”.
CHECK ALIGNMENT OF ALL COMPONENTS AND
9.
FILE ALL TRACK JOINTS SMOOTH. LUBRICATE
GROOVES IN ALL TRACK AND SWITCHES WITH
JOHNSON’S #140 WAX STICK PROVIDED IN
ACCESSORY BAG.
RECHECK FREE MOVEMENT OF ALL PANELS.
P W - 9 0 S L I D I N G M A L L F R O N T
I N S T A L L A T I O N I N S T R U C T I O N S
