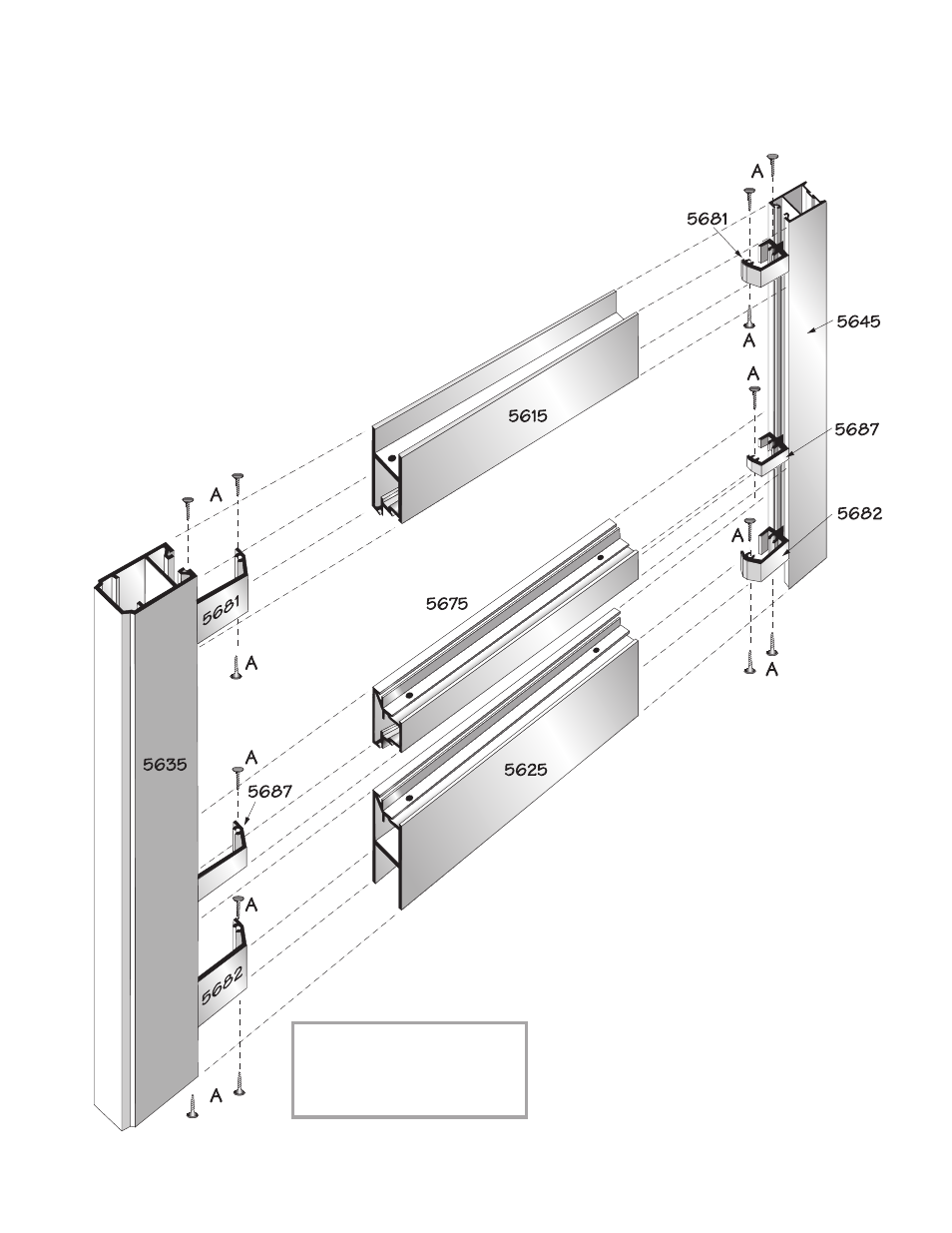

JOINT CLIPS (Factory installed on Stiles)
TOP RAIL EXTRUDED CLIP – #5681
Assembled with 1/4” – 20 x 1-3/4 H.H. Bolt
1/4” – 20 Lock Washer
1-7/16 x 2” Nut Plate
MUNTIN RAIL CLIP – #5687
Assembled with 1/4” – 20 x 1-3/4 H.H. Bolt
1/4” – 20 Lock Washer
1/4 – 20 Rivnut
BOTTOM RAIL CLIP – #5682
Assembled with 1/4” – 20 x 1-3/4 H.H. Bolt
1/4” – 20 Lock Washer
1-7/16 x 2” Nut Plate
SCREWS (Field Installed)
A #10 x 5/8 PPHSMS – Type A
• ASSEMBLY
• INSTALLATION
• GLAZING
NOTE
Removable Glazing Beads
must be on Interior Side
of Panel.
P W - 1 8 0 S L I D I N G M A L L F R O N T
I N S T A L L A T I O N I N S T R U C T I O N S
