B R W - 5 0 0 B L A S T M A X I N S T A L L A T I O N M A N U A L TM

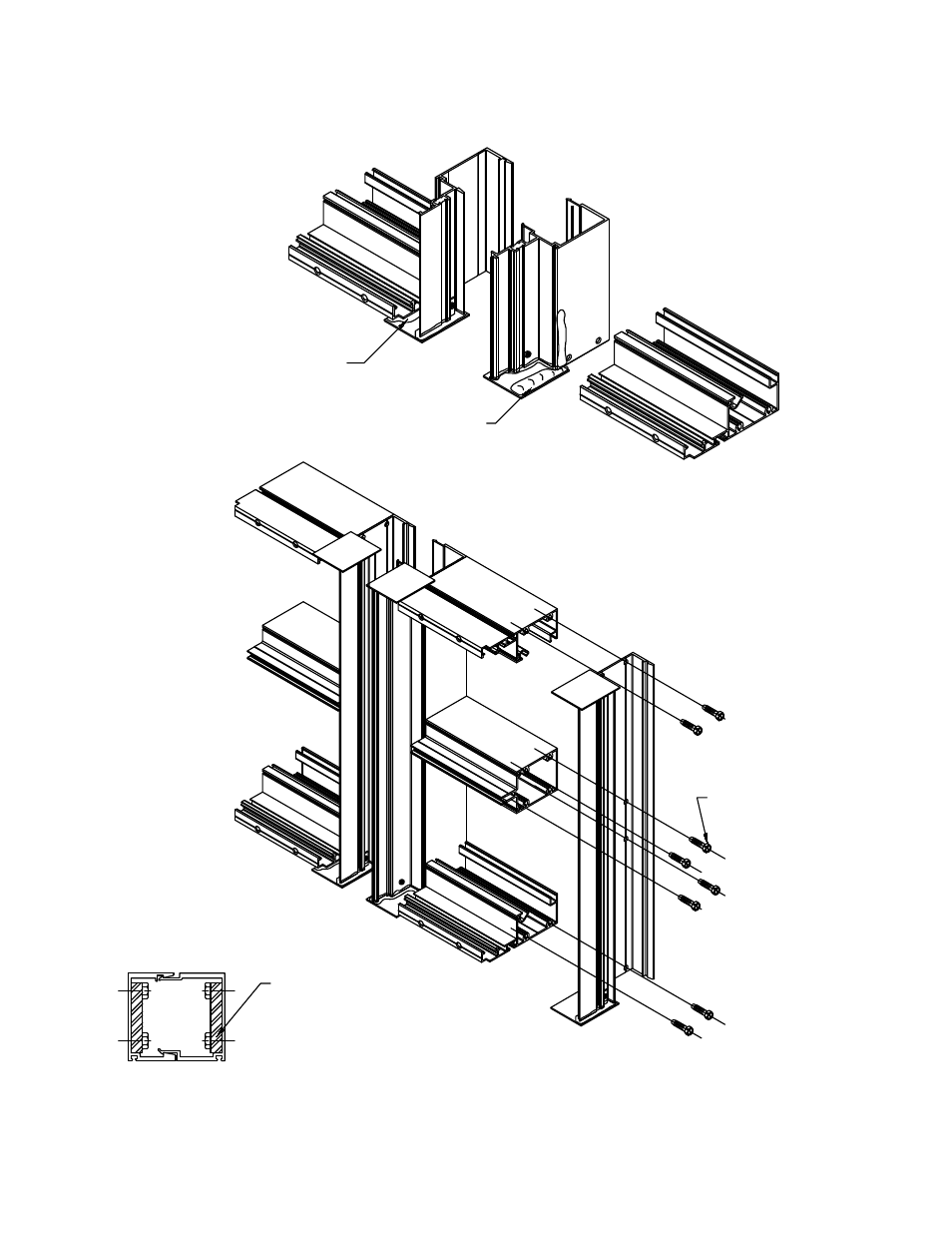

FRAME ASSEMBLY
FS-8
(#14 X 1" HHSTS)
FIGURE 9
USE FS-9 (#14 X 1 1/2" HHSTS)
WHEN ASSEMBLYING WITH
STEEL REINFORCEMENT
APPLY BEAD OF
SEALANT ALONG TOP
OF MULL CAP
SET HEAD OR SILL INTO
BEAD AND TOOL ALONG EDGE.
MARRY INTO SEALANT AT
VERTICAL MULLION.
FIGURE 8
