Page 553: Gl 320 cdi gl 450
552
Technical data

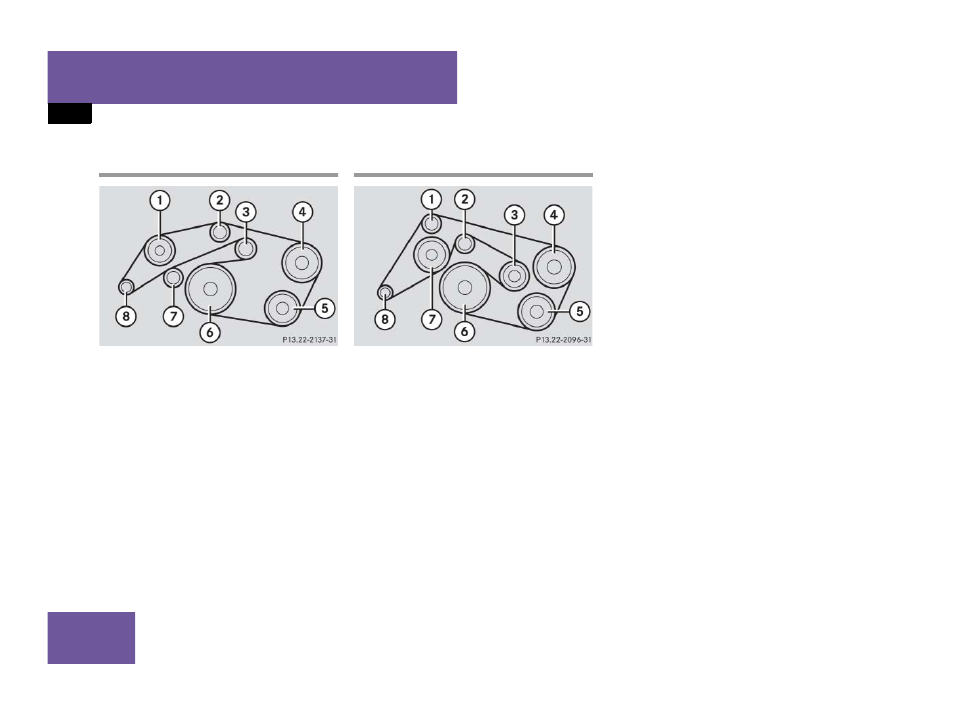

Layout of poly-V-belt drive
GL 320 CDI
1 Coolant pump
2 Idler pulley
3 Automatic belt tensioner
4 Power steering pump
5 Air conditioning compressor
6 Crankshaft
7 Idler pulley
8 Generator (alternator)
GL 450
1 Idler pulley
2 Idler pulley
3 Automatic belt tensioner
4 Power steering pump
5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)
