Page 176
175
Controls in detail
Automatic climate control
USA only (depending on vehicle production
date)
Canada only
Item
1 Left side defroster vent, fixed
2 Left side air vent, adjustable
3 Thumbwheel for air volume control
for left side air vent
4 Thumbwheel for air volume control
for left center air vent
5 Left center air vent, adjustable
6 Right center air vent, adjustable
7 Thumbwheel for air volume control
for right center air vent
8 Thumbwheel for air volume control
for right side air vent
9 Right side air vent, adjustable
a Right side defroster vent, fixed
b Automatic climate control panel
i
For draft-free ventilation, move the sliders
for the center air vents and side air vents to the
middle position.

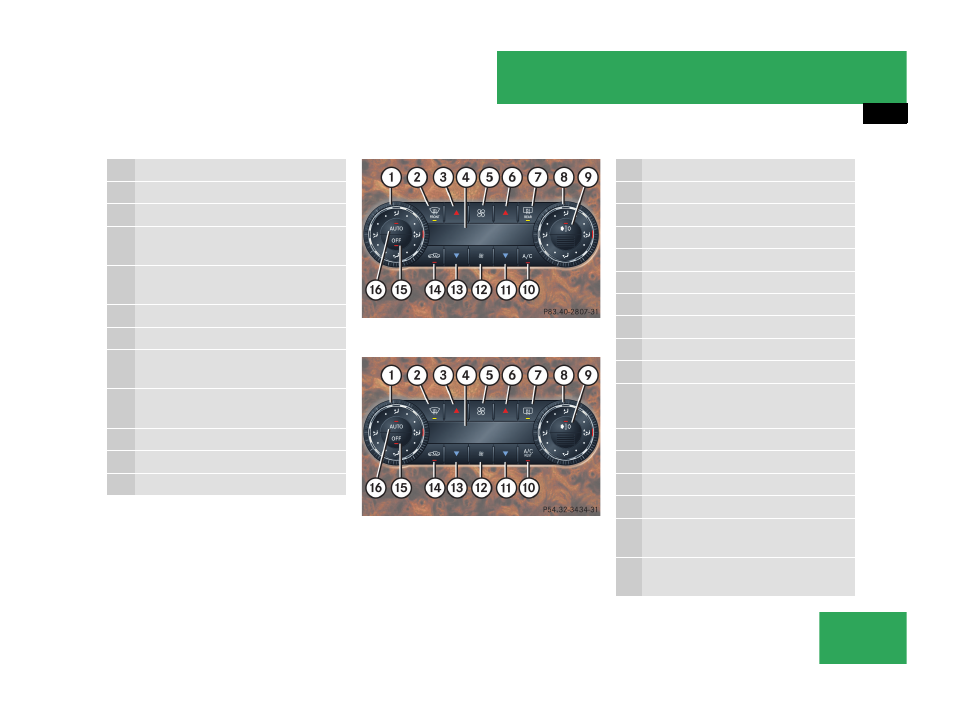

Item
1 Left side air distribution control
2 Front defroster
3 Temperature control, left, raising
4 Display
5 Air volume control, raising
6 Temperature control, right, raising
7 Rear window defroster
8 Right side air distribution control
9 Charcoal filter
a AC cooling on/off
Residual heat/ventilation
b Temperature control, right, lowering
c Air volume control, lowering
d Temperature control, left, lowering
e Air recirculation
f Automatic climate control on/off
(complete system)
g Air distribution and air volume
(automatic mode)
