Engine compartment
425

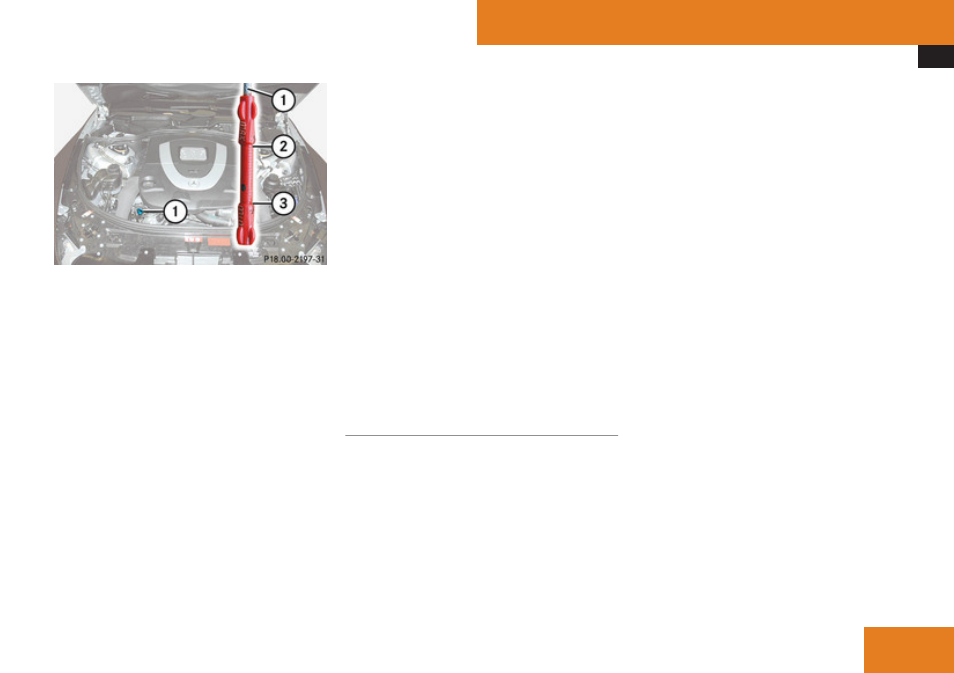

Example illustration CL 550 4MATIC
1
Oil dipstick
2
Upper (max) mark
3
Lower (min) mark
X
Pull out oil dipstick
1
.
X
Wipe oil dipstick
1
clean.
X
Fully insert oil dipstick
1
into the dipstick
guide tube.
X
Pull out oil dipstick
1
again after
approximately 3 seconds to obtain
accurate reading.
The oil level is correct when it is between
lower (min) mark
3
and upper (max) mark
2
of oil dipstick
1
.
i
CL 550 4MATIC only:
The filling quantity between the upper and
lower marks on the oil dipstick is
approximately 2.1 US qt. (2.0 l).
i
AMG vehicles only:
The filling quantity between the upper and
lower marks on the oil dipstick is
approximately 1.6 US qt. (1.5 l).
X
If necessary, add engine oil.
For more information on engine oil, see
“Fuels, coolants, lubricants
etc.” (
For information on messages in the
multifunction display concerning engine oil,
see the “Practical hints” section
(
Checking engine oil level with the
control system
On the CL 600 and CL 65 AMG, you can check
the engine oil level with the control system.
i
The menu overview can be found on
X
Switch on the ignition.
X
Press
(
or
&
to select the Service
menu.
X
Press
$
or
%
to select Engine Oil
Level.
X
Press
#
.
The following message appears in the
multifunction display:
Measuring
Engine Oil Level
Accurate Only
When Vehicle Is Level
One of the following messages will
subsequently appear in the multifunction
display:
R
Engine Oil Level
OK
R
Add 1.0 qts. Engine Oil
At Next Refueling
(Canada: 1.0 l)
R
Add 1.5 qts. Engine Oil
At Next Refueling
(Canada: 1.5 l)
R
Add 2.0 qts. Engine Oil
At Next Refueling
(Canada: 2.0 l)
i
If you want to interrupt the checking
procedure, press button
L
on the
multifunction steering wheel.
