Power Ease TM
Operating Instructions:
Review Important Safety Instructions at the front of this booklet before operating.

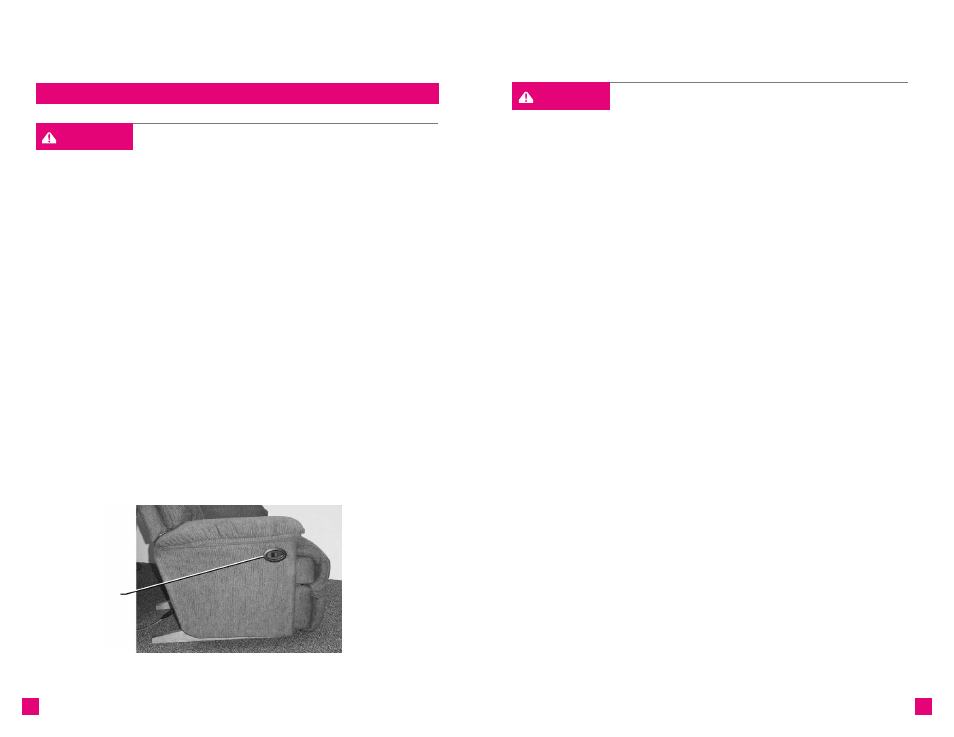

F IGURE 1
Power
Switch
- To reduce the risk of injur y.
• Do not attempt to disassemble or service the pump or motor. No serviceable
parts are inside. Contact your La-Z-Boy
® dealer for service information.
Troubleshooting for Power Recliners and Motion Sofas
There are no user maintenance or repair requirements. If the power unit does
not work:
1. Make sure the Power Transformer(s) are plugged into an electrical outlet.
2. Make sure the electrical outlet is working. For example, make sure there
are no blown fuses or tripped circuit breakers.
3. Make sure all the connectors are secured; refer to the Assembly Instructions.
4. Make sure the electrical cords are not crimped or pinched. Make sure the
electrical cord or plug is not damaged.
If the power unit still does not operate properly, contact your La-Z-Boy ®
dealer for instructions on returning the unit for examination and repair.
Except for replacement of the Power Transformers, never attempt to make
any repairs or adjustments yourself.
Power Transfor mer Replacement
If a Power Transformer must be replaced:
1. Unplug the Power Transformer(s) from the electrical outlet.
2. Locate the Power Transformer connection; refer to the Assembly Instructions.
Gently pull the connectors apart to disengage.
3. Push the replacement Power Transformer connector into the mating connector;
refer to the Assembly Instructions. Make sure the connectors are secured with no
gaps between them.
Power Ease TM
Troubleshooting:
15 14
POWER EASE TM TRANSFORMER SPECIFICATIONS:
Input: AC 115V 60 Hz
Output: DC 24V 3.33A
- To reduce the risk of serious injur y.
• Sit down in the unit slowly. To avoid tip over, do not throw your weight
against the back of the unit. Move the unit into or out of the reclining
position slowly, making sure that no children or pets are in close proximity.
• To safely exit the unit and prevent a tripping hazard bring the back upright
and close the legrest.
• Check condition of the power transformer, electrical cords, plug and
connectors regularly. Keep the power transformer and electrical cords
away from heat sources. Never operate the unit with a damaged power
transformer, electrical cords, plug or connector. Contact your La-Z-Boy
®
dealer for service.
• Keep hands, arms and body parts away from the open area between a
reclined back and an upright back on a motion sofa. This area must remain
clear at all times to provide unobstructed movement and prevent injury that
could occur when a reclined back is returning toward the upright position.
Operating Instructions for Power Ease TM Recliners and Motion Sofas
Plug in the Power Transformer(s). Make sure there is enough slack in the cord
running from the power unit to the outlet to allow for rocking and reclining.
Never stretch or strain a cord.
Power Ease TM Operation
The power legrest is operated by a Power Switch, located on the outside arm
(F
IGURE 1).
• To raise the legrest, push the front of the Power Switch down and hold.
Release the switch when the legrest reaches the desired height.
• To lower the legrest, push the back of the Power Switch down and hold.
Release the switch when the legrest reaches the desired height or is
completely closed.
