Power Ease TM Recliner
Assembly Details:

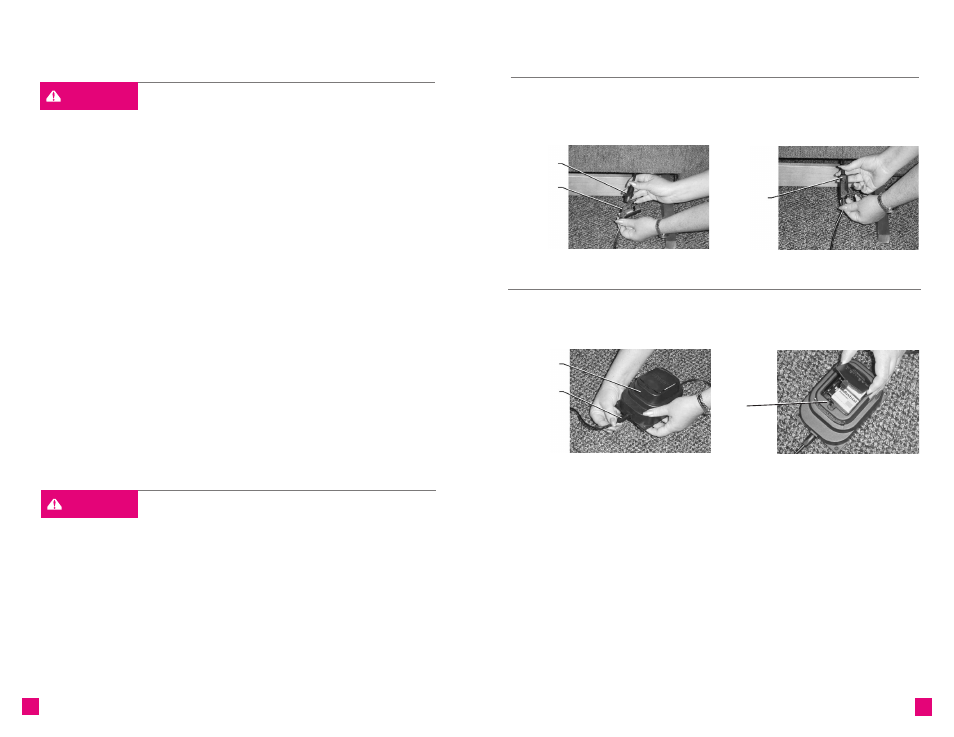

F IGURE 1 F IGURE 2
Transformer
Cord Locking
Cover
Motor
Connector
Transformer
Cord
Connector
F IGURE 3 F IGURE 4
Power
Transformer
with Battery
Backup
Power
Transformer
Transformer
Cord
Connector
7 6
Power Ease TM Recliner
Assembly Instructions:
- To reduce the risk of injur y.
• Do not operate the unit until the back is installed and locked.
CAUTION: Do not plug the transformer in until instructed.
Assembly Instructions for Power Ease TM Recliners
1. Locate the Power Transformer and Transformer Cord.
• The Power Transformer and Transformer Cord are secured to the top
of the rear seat frame. Carefully cut the cable tie(s) and remove the
Power Transformer and Transformer Cord from the seat frame.
Remove the packing and unwind the cords.
2. Install the back.
• If your chair back has upholstery cover attached to all sides of the
back frame, follow the Back Assembly Instructions on pages 10-11.
• If your chair back has a loose upholstery cover with fastening tape,
follow the Back Assembly Instructions on pages 12-13.
3. Connect the Transformer Cord to the motor.
• Locate the motor connector behind the chair, on the lower right
hand (sitting) side (F
IGURE 1).
• Connect the Transformer Cord connector with the motor connector.
Push the connectors together until they are secured, with no gaps
between them (F
IGURE 1).
• Rotate the Transformer Cord Locking Cover over this connection
and snap in place (F IGURE 2).
4. Connect the Power Transformer to the Transformer Cord.
• Connect the Transformer Cord two prong connector with the
Power Transformer receptacle. Make sure the connection is secured,
with no gaps (F
IGURE 3).
5. Choose a location for the chair that is close to an electrical outlet.
Proceed to the Battery Backup Assembly Instructions.
- To reduce the risk of injur y.
• Replace the power transformer batteries every six months and after each
power failure use.
Batter y Backup Assembly Instructions for Power Ease TM Recliners
The Battery Backup is located in the Power Transformer and uses two 9-volt
alkaline batteries (not included).
1. Unplug the Power Transformer from the electrical outlet.
2. Remove the Phillips head screw from the battery cover plate on top of the
Power Transformer. Push the tab in and lift to remove the cover plate.
3. Place the connection caps over the battery terminals on each battery. Place
the batteries in the Power Transformer (F IGURE 4). Snap the battery cover
plate into place and secure with the Phillips head screw removed in Step 2.
4. Proceed to the Power Ease TM Operating Instructions.
WARNING
WARNING
