TMLREK01 Rail Enabling Kit
June 2009 Intel Rail Kit Enabling for Kontron Communications Rackmount Servers
Order Number: K00032‐001 Installation Guide, rev. 1.0
7

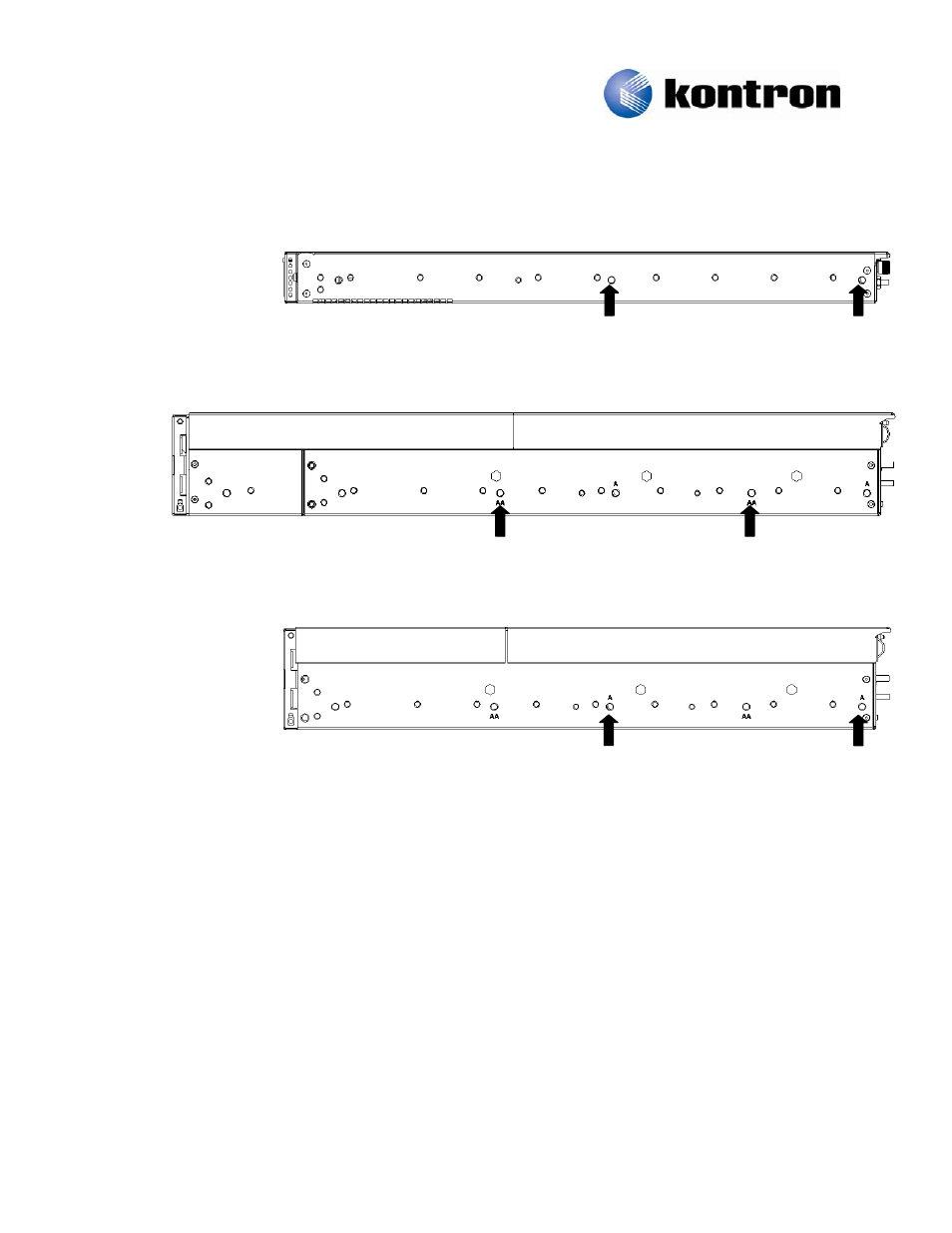

*Note: Some Kontron communications servers share the same sheet metal chassis for multiple
length products. On these products, there are 2 sets of holes for attaching the inner rail.
For 20 inch servers with a single set of rail kit attachment holes, install the shoulder screws into
the holes indicated.
Figure 9. Server with single set of rail attach holes, 20 inch
For 24” servers with multiple sets of rail kit attachment holes, install the shoulder screws into the
holes marked as “AA”.
Figure 10. Server with multiple sets of rail attach holes, 24 inch
For 20” servers with multiple sets of rail kit attachment holes, install the shoulder screws into the
holes marked as “A”.
Figure 11. Server with multiple sets of rail attach holes, 20 inch
