TMLREK01 Rail Enabling Kit
June 2009 Intel Rail Kit Enabling for Kontron Communications Rackmount Servers
Order Number: K00032‐001 Installation Guide, rev. 1.0
3
*Note: Some Kontron communications rackmount servers share the same sheet metal chassis
for multiple length products. On these products, there are 2 sets of holes for attaching the
inner rail.
For 20 inch servers with a single set of rail kit attachment holes, install the shoulder screws
into the holes indicated.

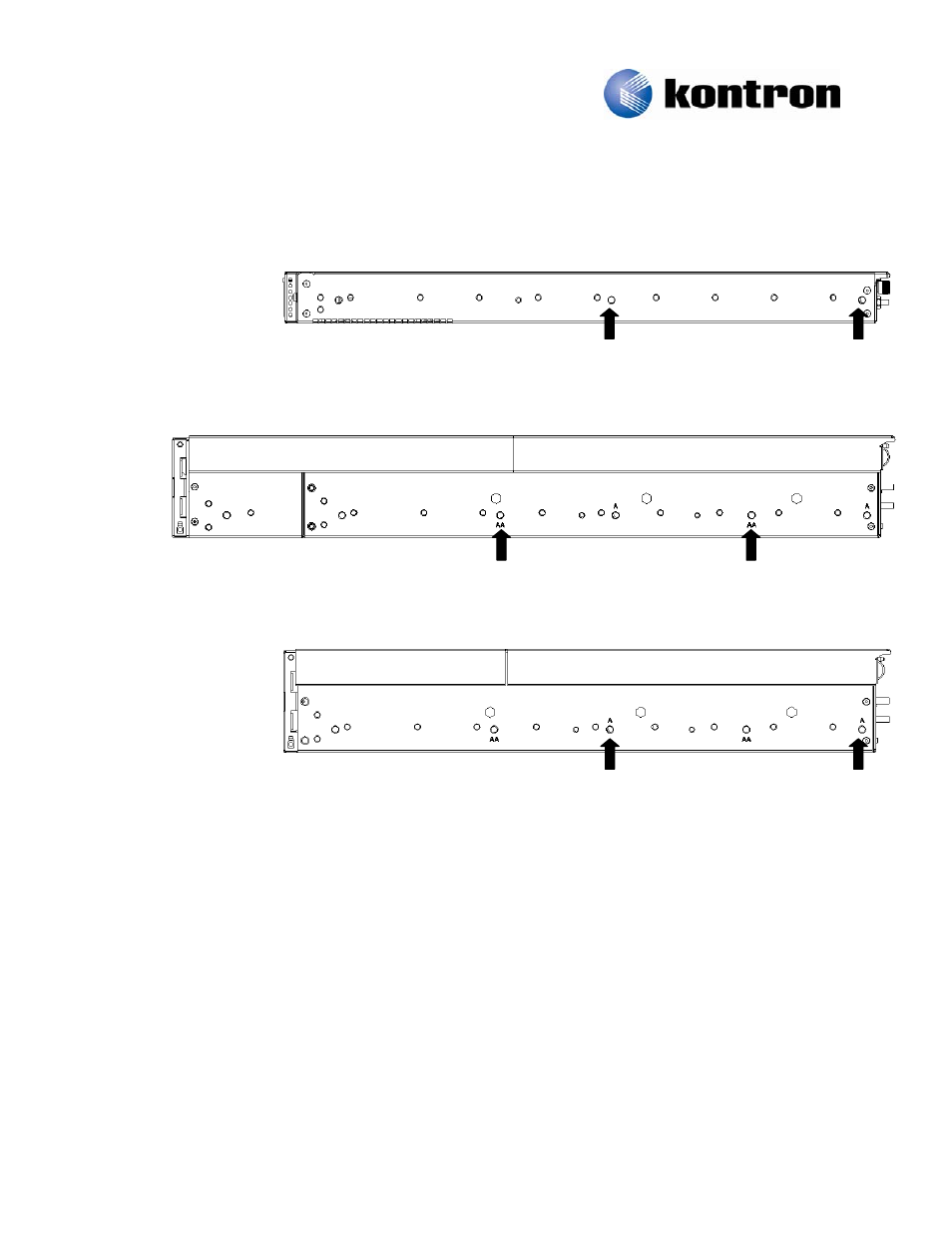

Figure 2. Server with single set of rail attach holes, 20 inch
For 24 inch servers with multiple sets of rail kit attachment holes, install the shoulder screws
into the holes marked as “AA”.
Figure 3. Server with multiple sets of rail attach holes, 24 inch
For 20 inch servers with multiple sets of rail kit attachment holes, install the shoulder screws
into the holes marked as “A”.
Figure 4. Server with multiple sets of rail attach holes, 20 inch
