TMLREK01 Rail Enabling Kit
June 2009 Intel Rail Kit Enabling for Kontron Communications Rackmount Servers
Order Number: K00032‐001 Installation Guide, rev. 1.0
6
Instructions for mounting the server using the Intel rail kit
AXXHERAIL2
1. Install Slide Rails in Rack: Following the instruction sheet included with the Intel rail kit, install
the slide rails in the rack.
2. Install Shoulder Screws: Install two hex head shoulder screws supplied in the Kontron kit on
each side of the server.

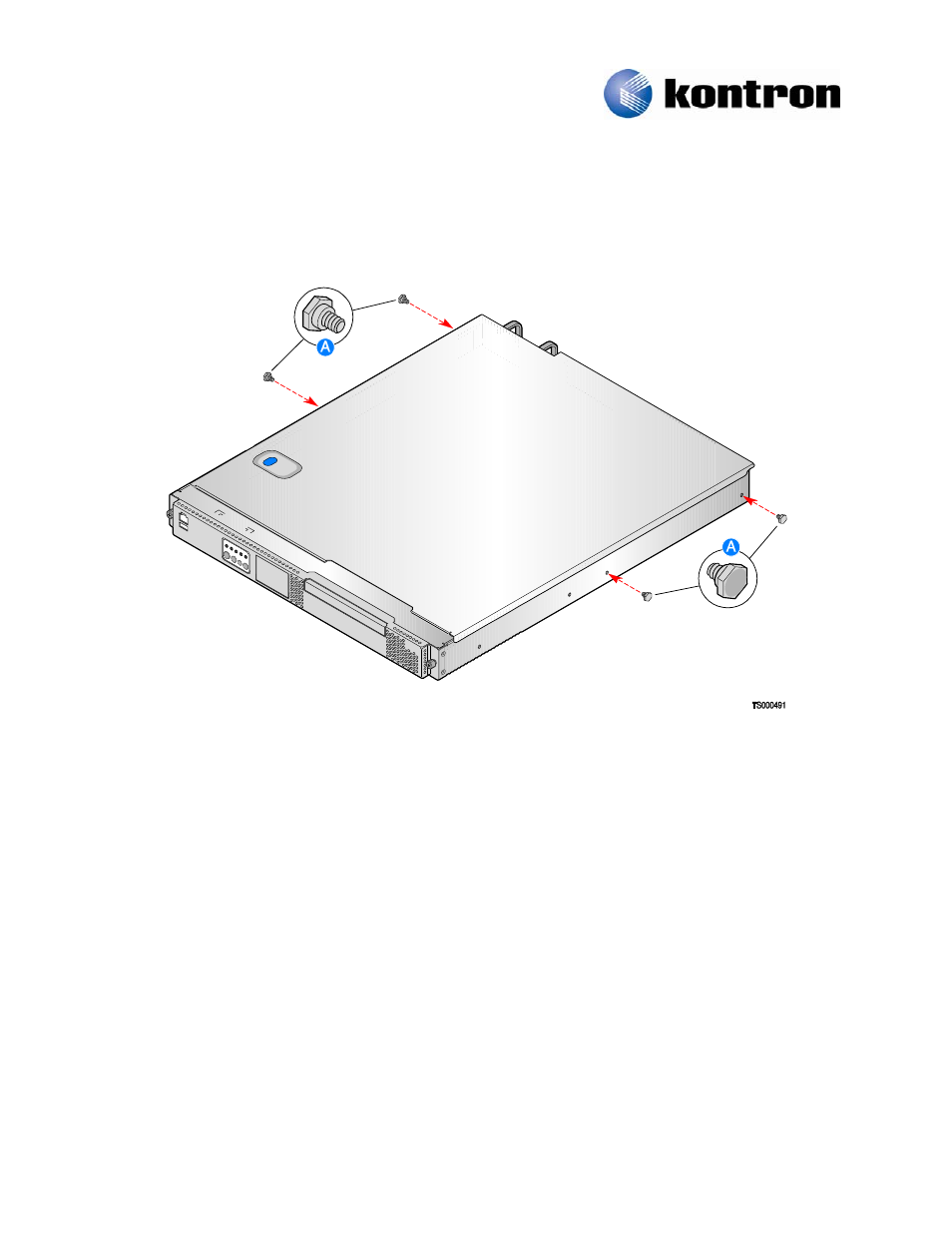

Figure 8. Install shoulder screws
