TMLREK01 Rail Enabling Kit
June 2009
Intel Rail Kit Enabling for Kontron Communications Rackmount Servers
Order Number: K00032‐001
Installation Guide, rev. 1.0
2
Instructions for mounting the server using the Intel basic rail kit
AXXBASRAIL13
1. Remove the Inner Rails and Install Outer Rails to Rack: Following Intel’s Install Guide,
remove the inner rails from the rail assembly and install the outer rail slides to the rack posts.
2. Install Shoulder Screws: Install two hex head shoulder screws supplied in the Kontron kit on
each side of the server.

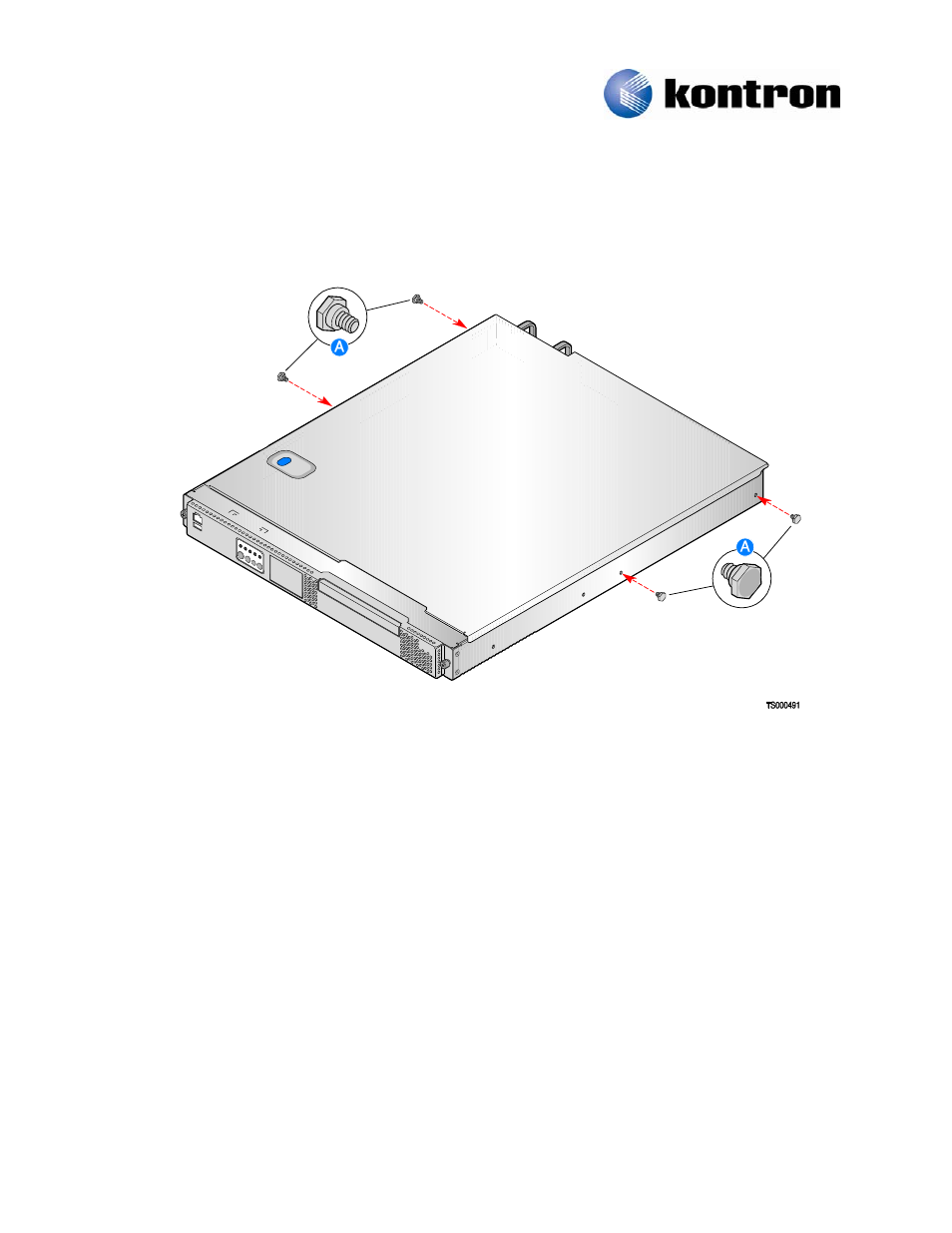

Figure 1. Install shoulder screws
