MSMGE104EX

/ Previous Product Versions

www.kontron.com

19

7

Previous Product Versions

7.1 Connectors Version 1.1 and Below

7.1.1 X4

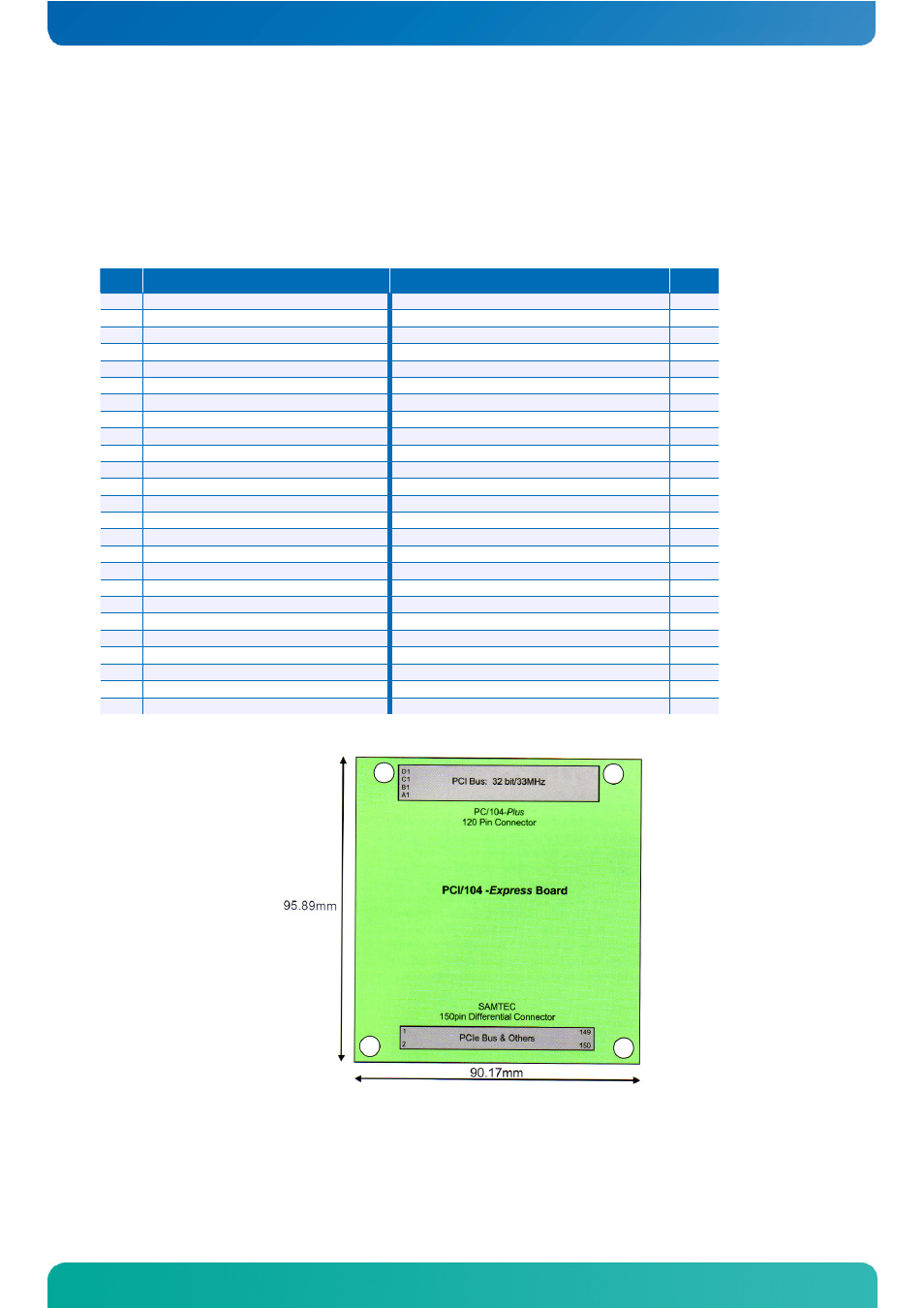

PCI/104-Express Bus (Top View Signal Assignment)

Pin

Signal

Signal

Pin

1

USB_0+

USB_1+

2

3

USB_0-

USB_1-

4

5

PE_RST#

CPU_Direction

6

7

TX_0x1+

TX_1x1+

8

9

TX_0x1-

TX_1x1-

10

11

GND

GND

12

13

TX_3x1+

TX_2x1+

14

15

TX_3x1-

TX_2x1-

16

17

GND

GND

18

19

RX_0x1+

RX_1x1+

20

21

RX_0x1-

RX_1x1-

22

23

GND

GND

24

25

RX_3x1+

RX_2x1+

26

27

RX_3x1-

RX_2x1-

28

29

3.3V_Always

5V_Always

30

31

CK_0x1+

CK_1x1+

32

33

CK_0x1-

CK_1x1-

34

35

3.3V

3.3V

36

37

CK_3x1+

CK_2x1+

38

39

CK_3x1-

CK_2x1-

40

41

3.3V

3.3V

42

43

PEG_CLK+

SMB_DAT

44

45

PEG_CLK-

SMB_CLK

46

47

WAKE#

USB_OC10#

48

49

+12V

+12V

50
