AM5030 Introduction
ID 1036-3302, Rev. 1.0 Page 1 - 7
P R E L I M I N A R Y
1.4.2 Front Panel

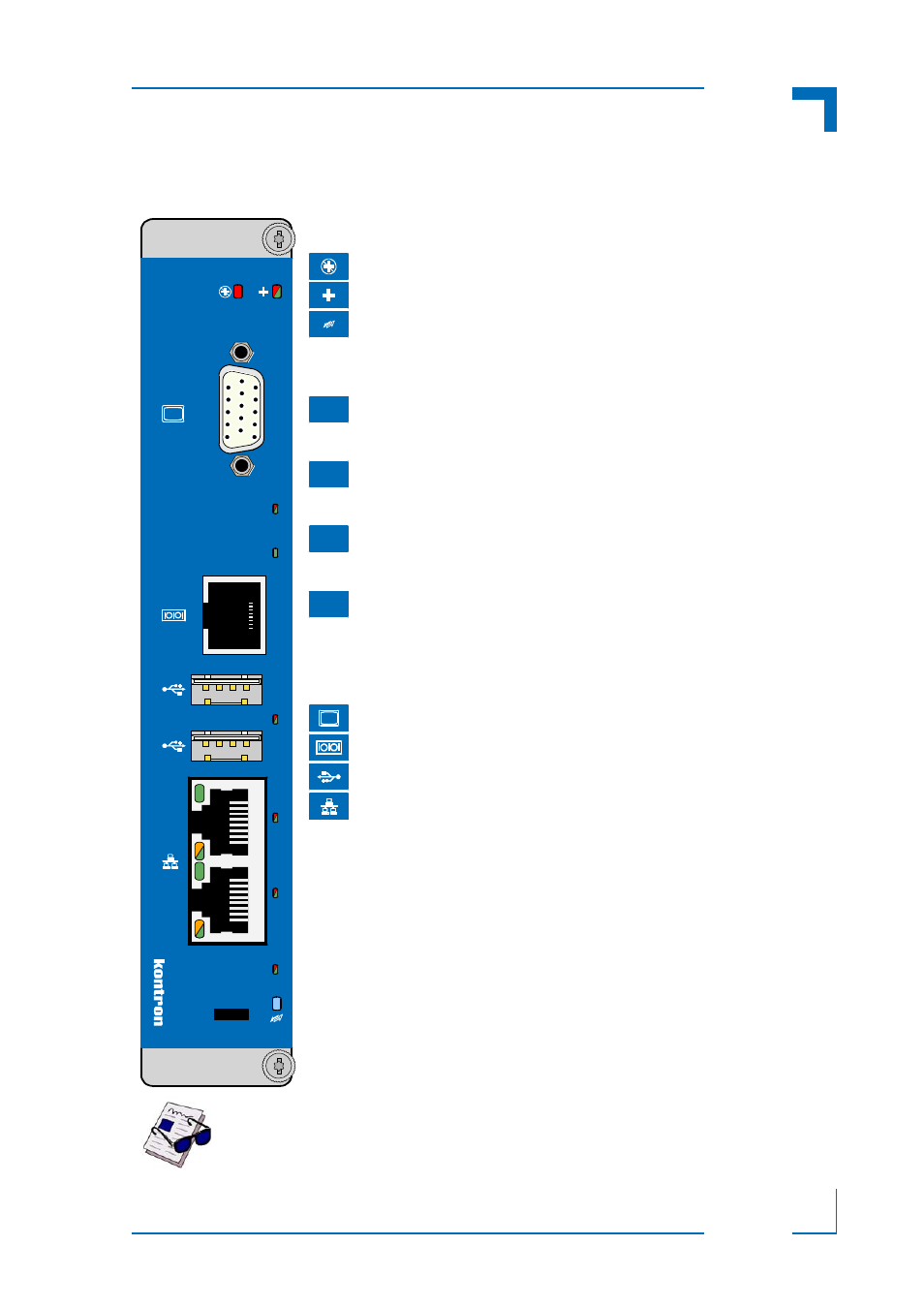

Figure 1-2: AM5030 Front Panel
Note ...
If the ULED 0..3 are lit red during boot-up, a failure is indicated before the uEFI
BIOS has started. For further information, please contact Kontron.
AM5030
0
1
2
3
WD
TH
GbE C
GbE D
• LED1 (red): Out-of-Service LED
• LED2 (red/green): Health LED
• HS LED (blue): Hot Swap LED
Module Management LEDs
• ULED3 (red/green): AMC Ethernet port A link signal status,
AMC port 0 (green), POST (green),
General Purpose (red/green/red+green)
• ULED2 (red/green): AMC Ethernet port B link signal status,
AMC port 1 (green), POST (green),
General Purpose (red/green/red+green)
• ULED1 (red/green): 10 GbE (XAUI) port A link status, AMC
ports 8-11 (green), POST (green),
General Purpose (red/green/red+green)
• ULED0 (red/green): 10 GbE (XAUI) port B link status, AMC
ports 17-20 (green), POST (green),
General Purpose (red/green/red+green)
User-Specific LEDs
3
2
1
0
• VGA Connector
• Serial Connector
• USB Connector
• Ethernet Connector
Connectors
• ACT (green): Ethernet Link/Activity
• SPEED (green/orange): Ethernet Speed
• SPEED ON (orange): 1000 Mbit
• SPEED ON (green): 100 Mbit
• SPEED OFF: 10 Mbit
Ethernet Status LEDs
Watchdog and Thermal Status LEDs
• TH LED (red/green): Thermal status
• WD LED (green): Watchdog status
