6
www.kontron.com
2. Board Features
2.1
Block Diagram

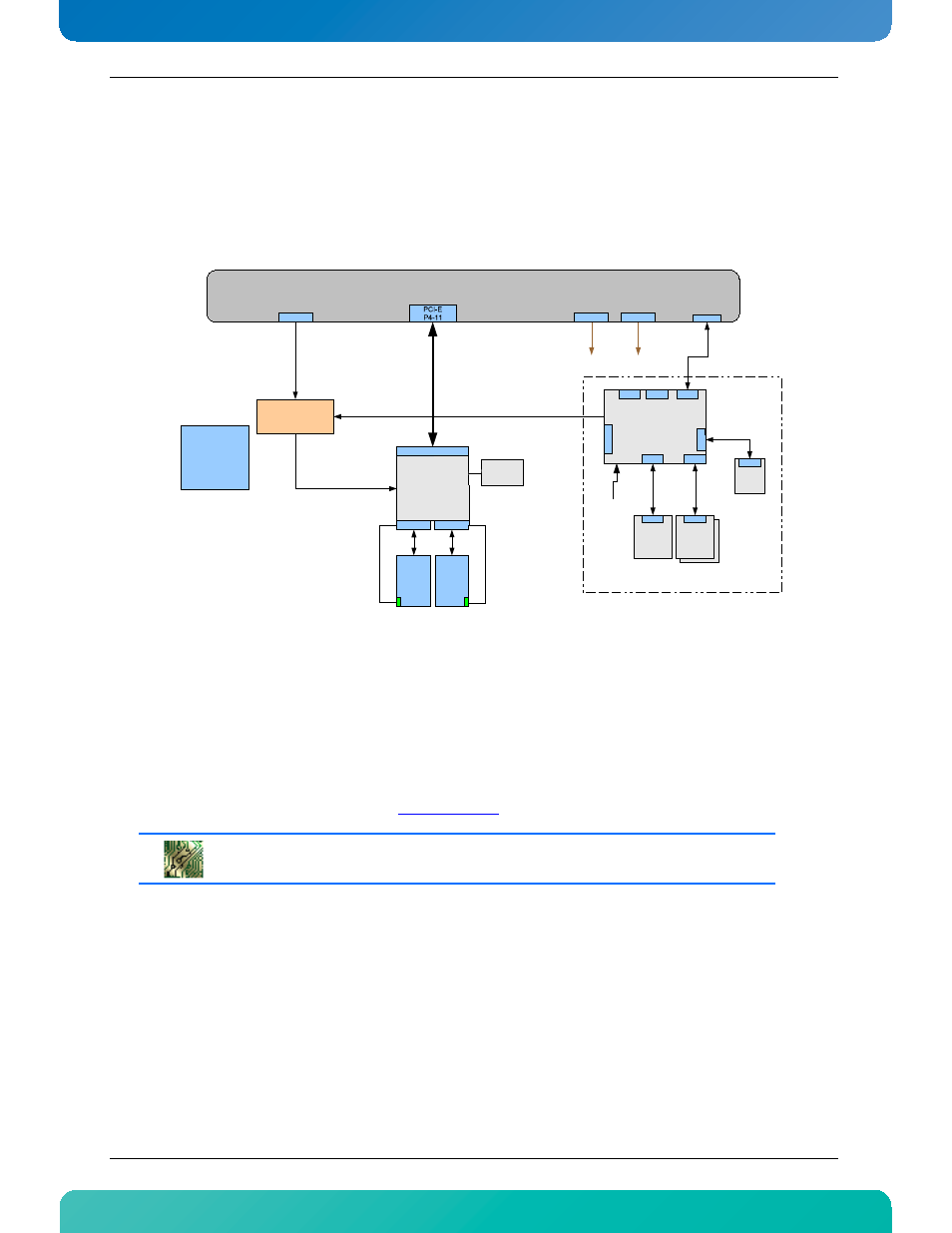

Figure 2-1: AM4320 Block Diagram
2.2
Ethernet Interfaces
2.2.1
Intel 82599ES Ethernet Controller
The AMC interface is implemented with one Intel dual-port 10 Gigabit Ethernet controller. The controller
supporting two 10GbE SFP+ modules. See
for additional details on this controller.
2.3
MMC Boot Block
The MMC runs a firmware from its internal 256KB flash. It is programmed by an additional 8K boot block.I
stores the active and previous MMC firmware in a dedicated flash memory. The boot block activates the MMC
image and can fall back to the secondary image in case of problems.
Signal Path:
The two SFP+ connectors are on the faceplate.
!"
#!$%
!&!&$
'()
) *+,,-
.
.
.
/0
1 20
0,3
%!
.
4#45 1
#
4#45 1
#
6
6+
!!
. 7
.
.
7
8
.:
.:
21
;& 6%
#54#4
#5 #
3&! 2!,
,!<
