KTD-S0018-A Page 7 JILI30 Cable (Examples)
Display Cable Guide
4.1.3 Cable Wiring

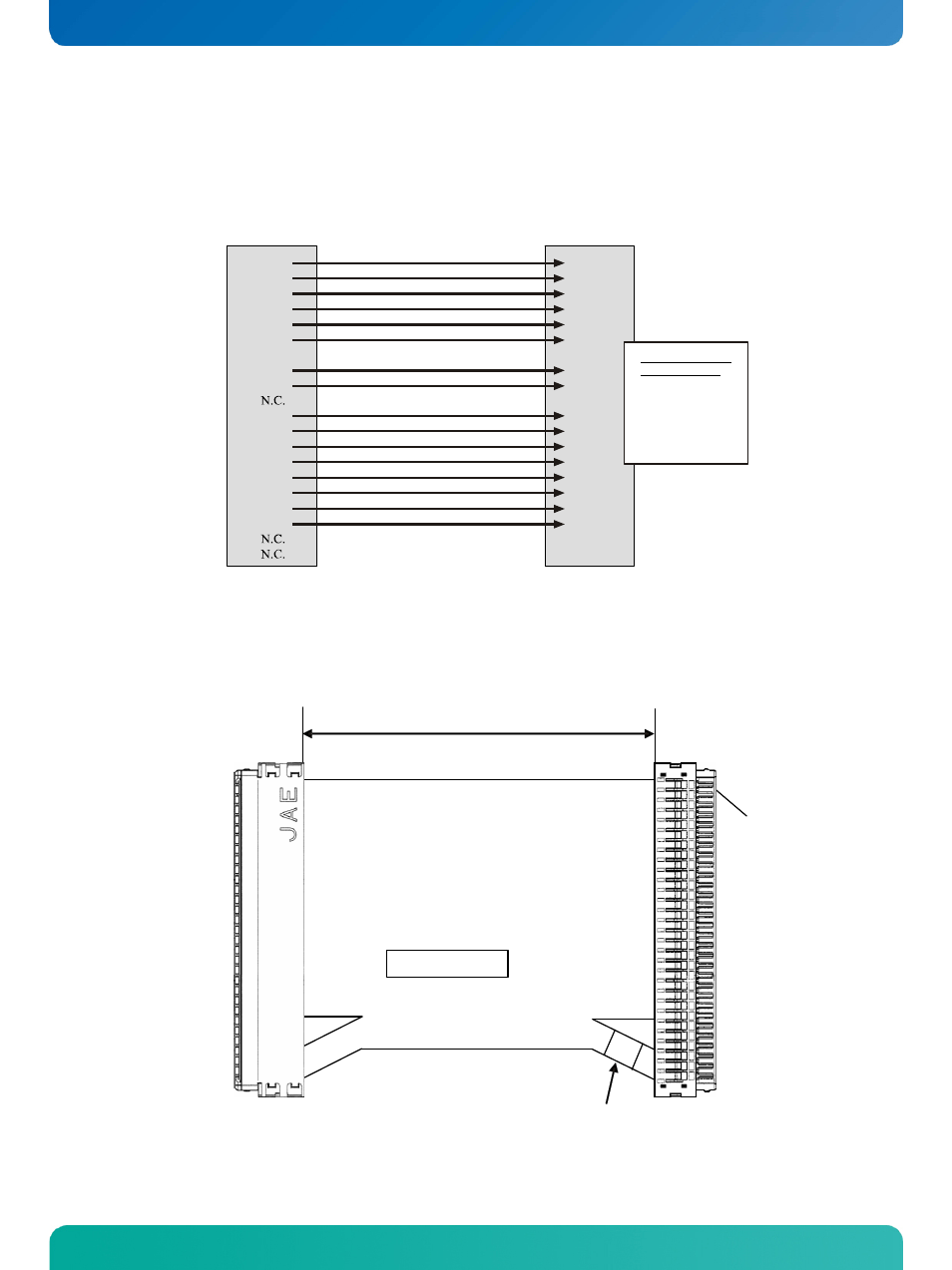

The following drawing shows the detailed wiring.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20 30
29
24
17
01
02
N.C.
03
04
05
06
07
08
09
14
10
11
Twisting-Table for
05 – 06
08 – 09
11 – 12
14 – 15
17 – 18
this connection :
Single Board Computer Display
4.2 KAB-JILI30-TELD02
This cable can be used for dual channel displays with 24 bit color depth (example AU Optronics M170EN07).
Display-Side
300 mm (-0/+5mm)
Single Board Computer
Pin1
UL – proof and RoHS compatible
27 wires
Flat wires (Color-Coded )
Axx62517yww
R1
Cover resistor and
leads with Tubing Heat Shrink.
