KTD-S0018-A Page 6 JILI30 Cable (Examples)
Display Cable Guide

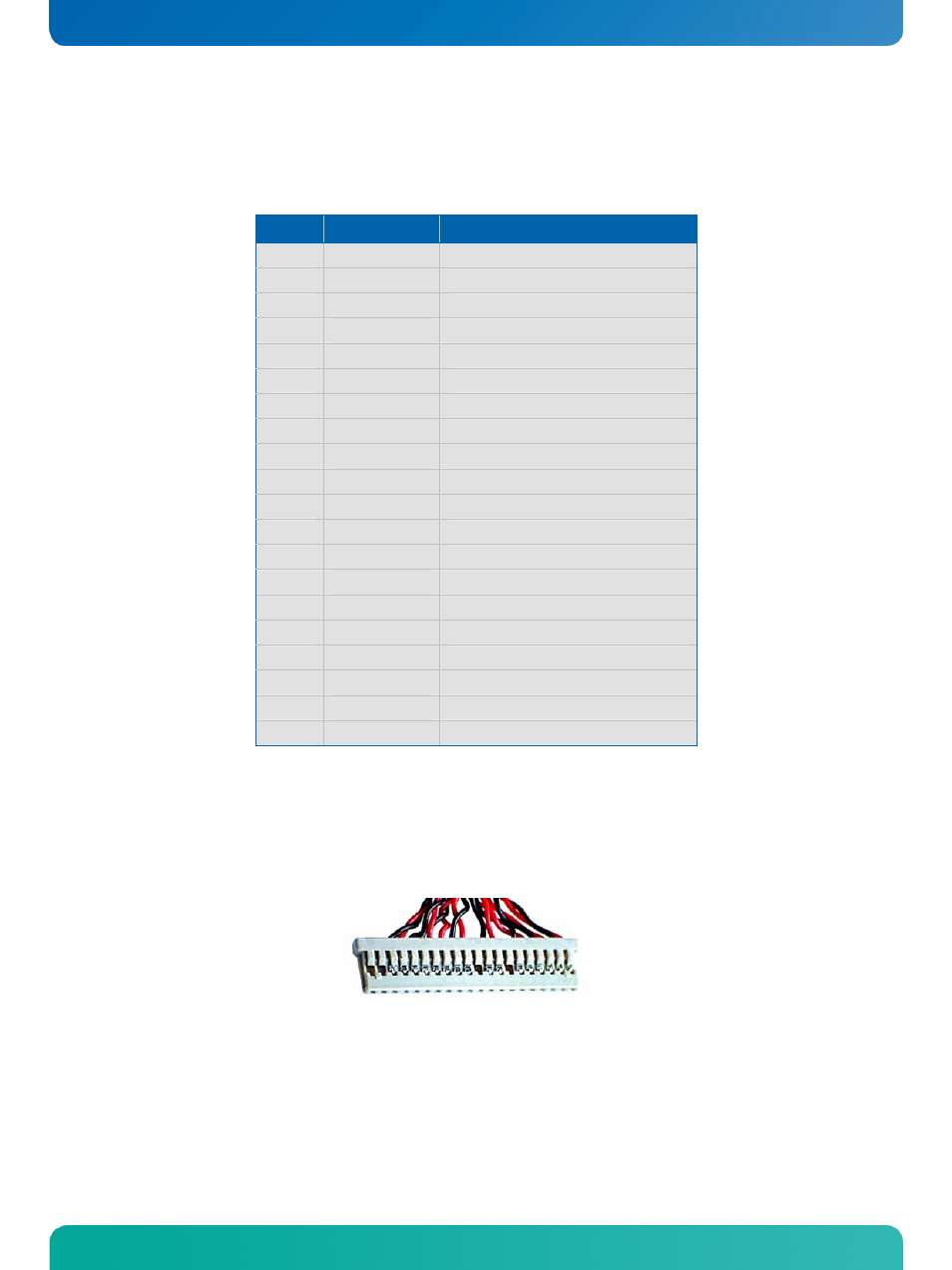

4.1.1 Display Connector Pinout
Pinout table for the display SHARP LQ150X1LW71.
Pin Signal Name Function
1 VCC Power +3.3V
2 VCC Power +3.3V
3 GND Ground
4 GND Ground
5 TX0- Channel data 0 input (negative)
6 TX0+ Channel data 0 input (positive)
7 GND Ground
8 TX1- Channel data 1 input (negative)
9 TX1+ Channel data 1 input (positive)
10 GND Ground
11 TX2- Channel data 2 input (negative)
12 TX2+ Channel data 2 input (positive)
13 GND Ground
14 TXC- Channel clock input (negative)
15 TXC+ Channel clock input (positive)
16 GND Ground
17 TX3- Channel data 3 input (negative)
18 TX3+ Channel data 3 input (positive)
19 GND Ground
20 LVDS_SET Color mapping (FPDI or OpenLDI)
4.1.2 Display Connector
On the display side the connector HIROSE DF14H-20P is used.
