U S E R G U I D E G1000/G1001 Gateway
®
4 21
1

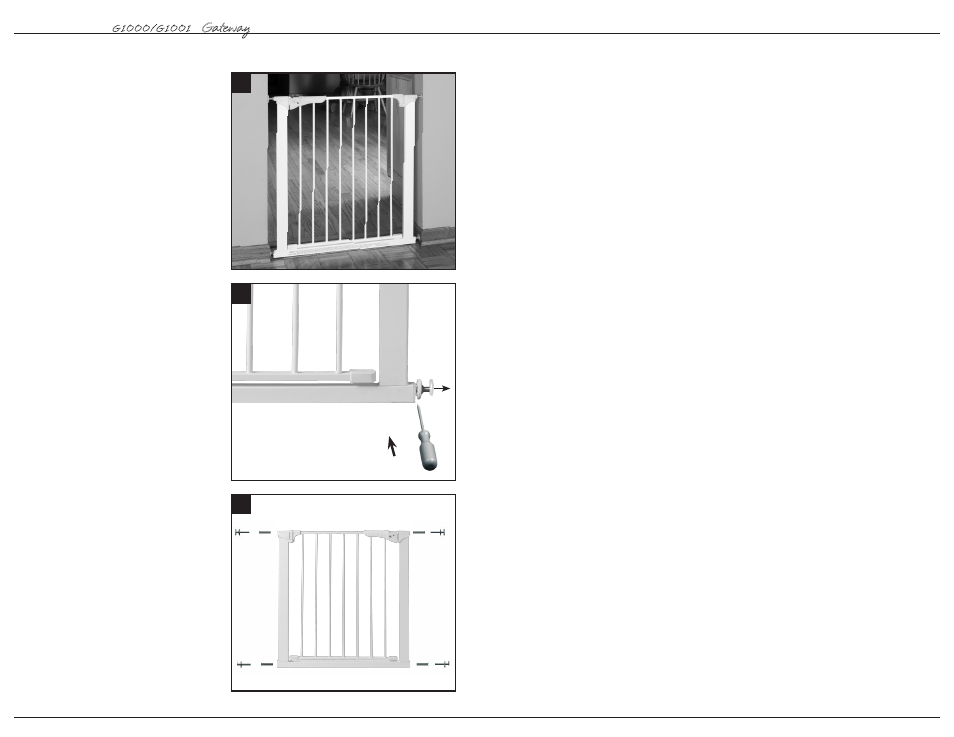

The gate must be installed in a
structurally sound opening. Never install
between two railings or two stair posts.
Ensure mounting surface (wall, doorframe,
etc.) is strong, rigid and is smooth, clean
and grease free. If mounting onto brick,
drywall or other surfaces, an optional gate
installation kit, wooden board mounted to
the surface or additional hardware may be
necessary to provide a solid, smooth
surface. Measure opening to determine if
extensions are needed. Correct width will
be reached by adjusting all 4 corner
spindles. Each spindle adjusts individually
and may be extended to varying lengths
(up to 1 ¾” each) to allow for molding,
uneven walls, etc. This gate can be used
in a closed doorway. Never use gate at top
of stairs.
2 Spindle attachment is different
when using extensions and when not
using extensions. Spindle housings are
not used if square extension tubes are
required. If the housings have been
inserted, remove with a screwdriver.
3
If no extension/s are used, slide top
spindles (a) and bottom spindles (c) into
spindle housing end (b). Push assembly
into gate corners.
Installation
1
(a) (b) (b) (a)
(c) (b) (b) (c)
3
2
