Cavity Fuse/Color Description
16 10 Amp Red SCM, Cluster OBD (B+)
17 15 Amp Blue Flipper Glass (B+)
19 10 Amp Red OCM (R/S)
20 10 Amp Red WCM, Cluster (R/S)
21 15 Amp Blue Autowipe (Accy Delay)
22 15 Amp Blue Rear Wiper (B+)
24 10 Amp Red PDC, FCM, A580 (R/S)
25 10 Amp Red ABS, Trans. Case Switch
(R/S)
CB1 20 Amp Cycle -Wipers (B+)
CB2 20 Amp Non - Cycle Seats (B+)
CB3 20 Amp Non - Cycle Windows (De-
lay)

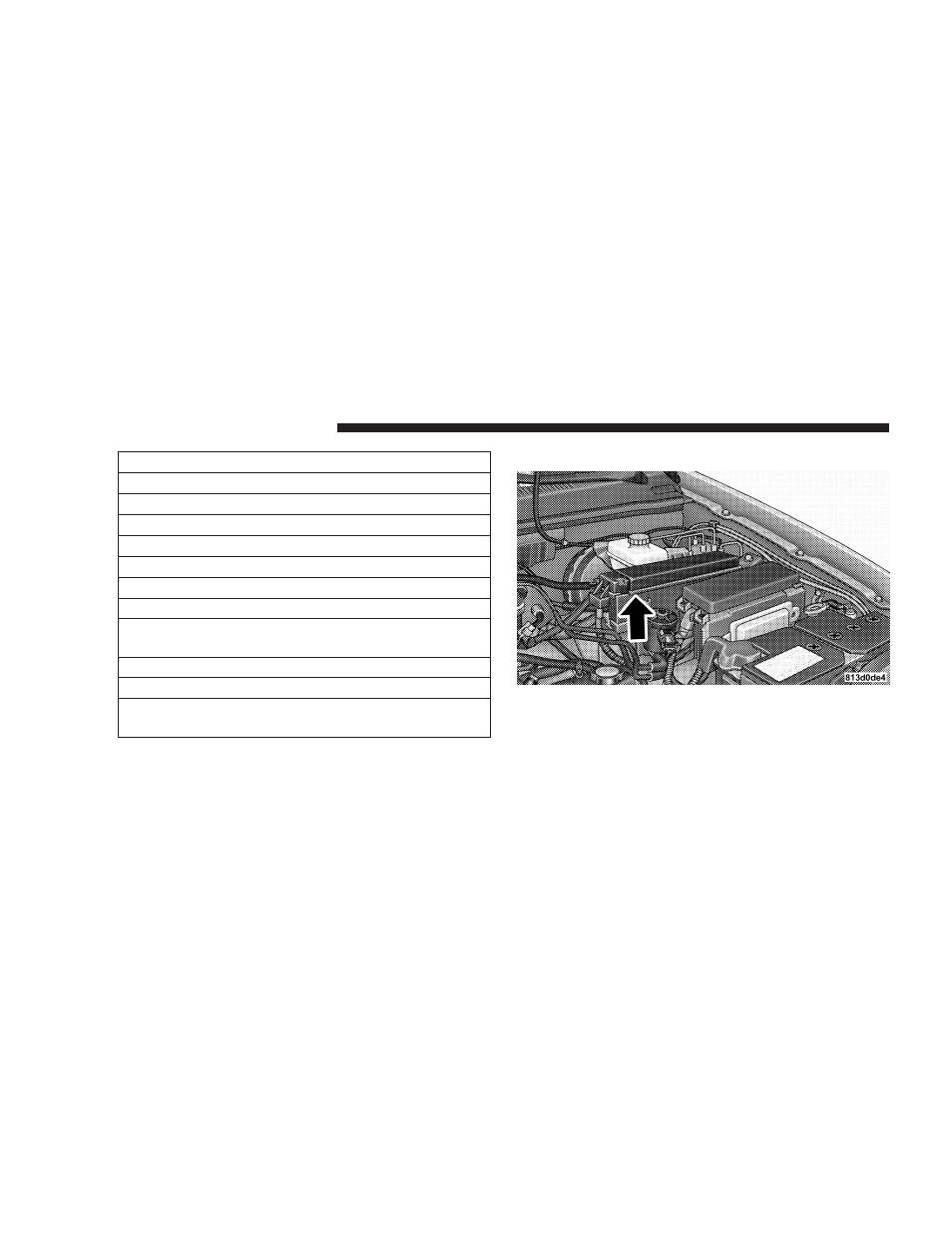

Underhood Fuses (Power Distribution Center)
Power Distribution Center
