Cavity Fuse/Color Description
1 30 Amp
Green Audio Amp (B+)
2 15 Amp Blue Sunroof (B+)
3 10 Amp Red Htd Mirror (EBL)
Cavity Fuse/Color Description
4 20 Amp Yel-
low Rr Pwr Out (B+)
5 10 Amp Red Rr HVAC (R/O)
6 10 Amp Red OCM (B+)
7 20 Amp Yel-
low Door Locks (B+)
8 15 Amp Blue Steer Col Lock (B+)
9 20 Amp Yel-
low Pwr Outlet (B+)
10 10 Amp Red Ign Run Only Out (R/O)
11 Spare
12 10 Amp Red Mem. Sw, Courtesy Lamp
(B+)
13 Spare
14 20 Amp Yel-
low Cigar Ltr (R/A)
15 10 Amp Red Tire Press Mon (R/O)

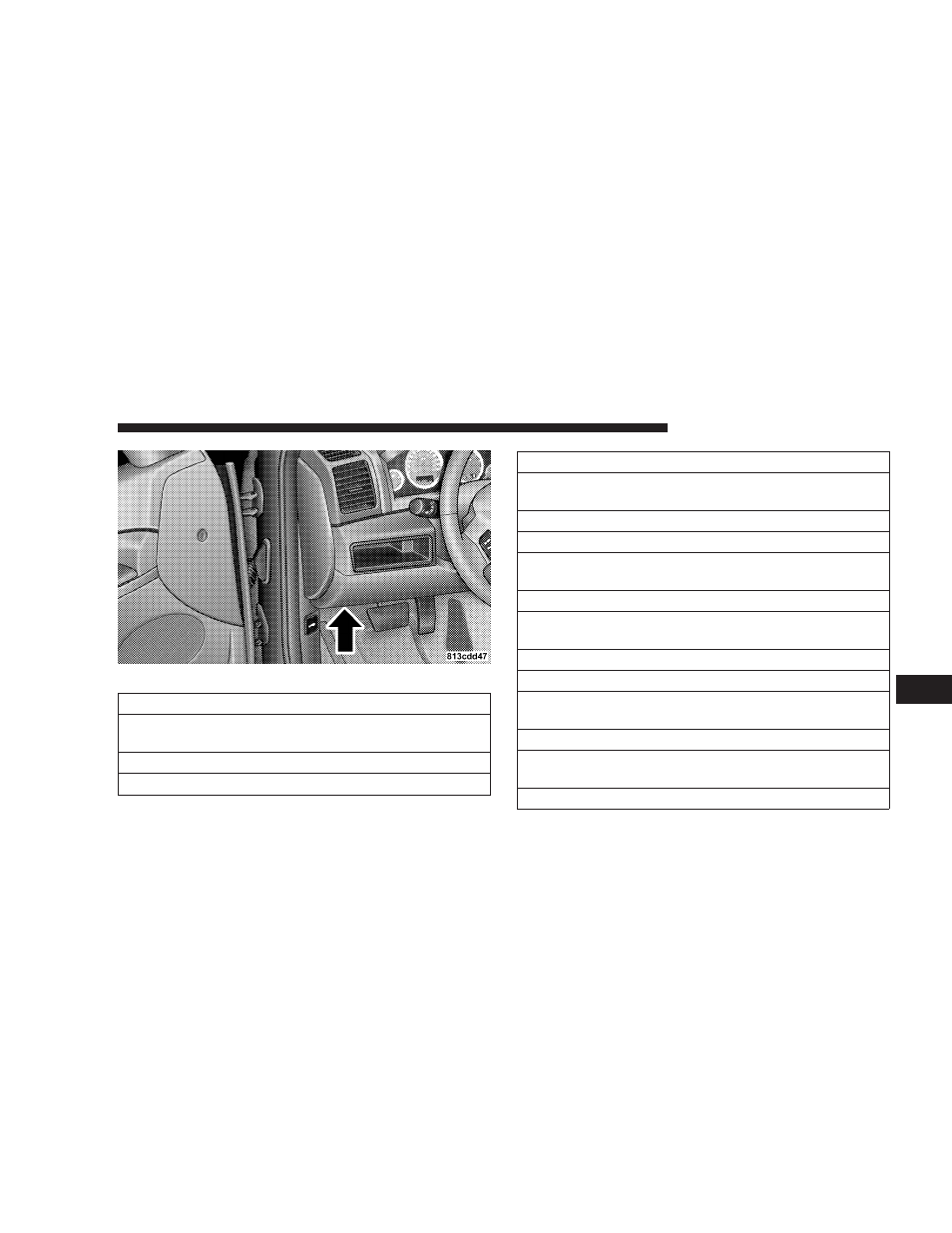

Fuse Panel Location
