ALTERNATE INSTALLATIONS
SuperPro 48" X 96"
Ceiling Mounted Shelf
Item # 00164

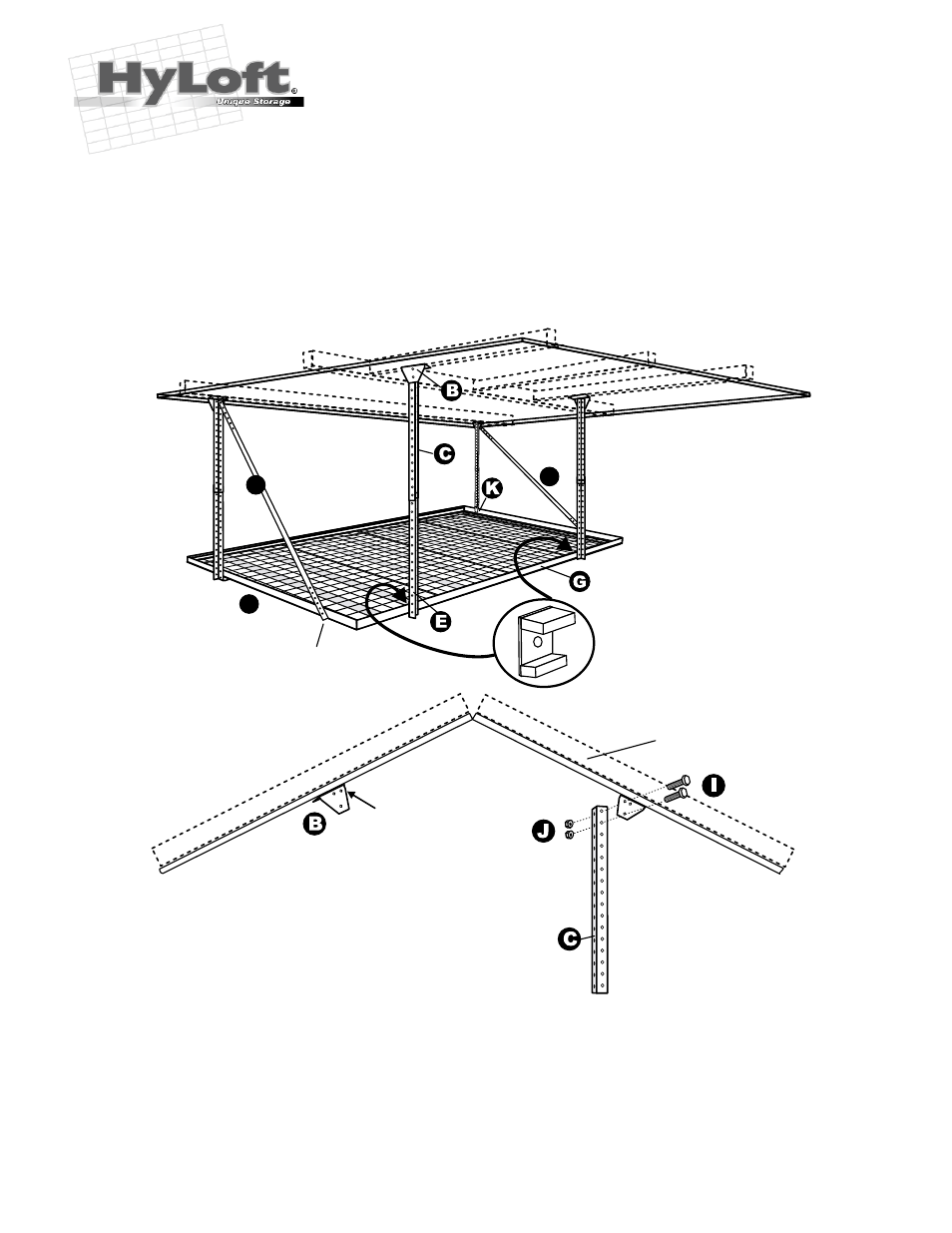

If joists change direction, 2 or all 4 Downrods (C&E) can be installed on the 96" side. Rotate direction of
Angle Brackets (B) and Downrods (C&E) & install as shown in steps 1-3 of original instructions. Clamps(K)
must be used to attach the downrod to the 96” support Frame (G), or if preferred, drill holes in the
96”Support Frame (G) & Downrods (E) to fasten with Bolt (L) and Nut (J).
Multi-Directional Joists:
Peaked or Cathedral Ceilings:
Example Shown of
Multi-Directional Joists
If all Joists run parallel,
2 downrods can also be
installed on the 96" side
by rotating direction of Angle
Brackets(B) as shown on
original instructions, but installing
downrods as shown here.
After installing Angle Brackets(B) to joists(step 1),
attach Downrod(C) to lower hole and use
as plumb line to mark another hole which is above
the lower hole. Depending on ceiling angle, you
may need to clip the corner from Downrod(C) to
allow it to rotate to full vertical position.
Drill new 3/8" holes so that Downrods (C)
will mount true vertical .
Adjust lower downrods at variable heights
if needed so that Support Frames(F&G)
will be level when installed. Continue with Steps 3 & 4.
Attach straight Down Rods(C)
to each Angle Bracket(B)
using 2 Hex Bolts(I) and
Hex Nuts(J). Tighten with ½"
Socket Wrench or Nut Driver.
Angled Joists
Clamp(K)
Drill New Hole
O
O
F
Drill hole into 48" Support Frame(F)
and attach Diagonal Support Brackets(O)
after making sure unit is level and square.
