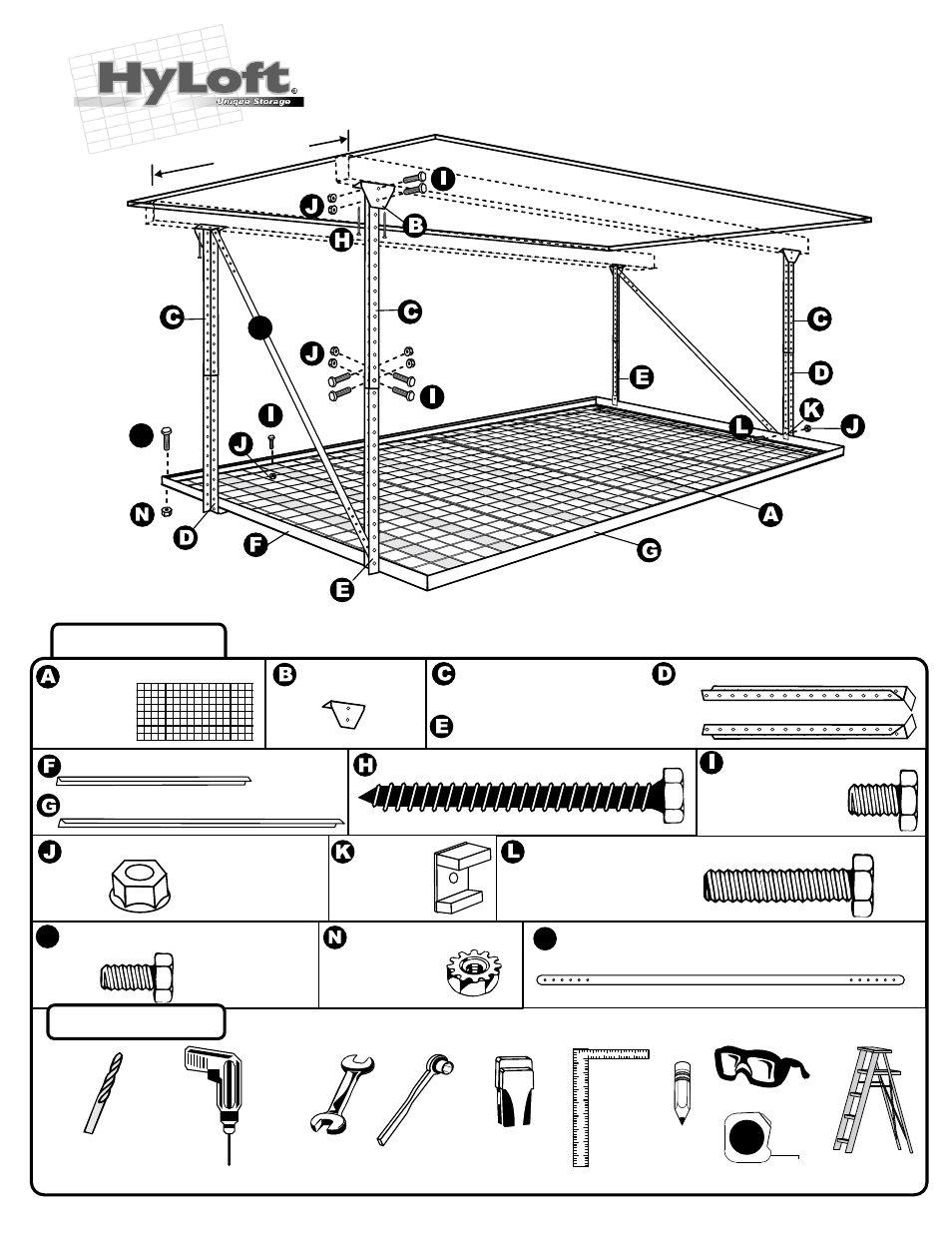

ASSEMBLY INSTRUCTIONS
M
O
SuperPro 48" X 96"
Ceiling Mounted Shelf
Item # 00164
Parts Included:
24" x 48"
4-Wire Grids 4-Downrods-Straight 4-Angle Brackets
Framing
Square
(optional)
Pencil 3/16"
Drill Bit
(4.8mm)
Power
Drill Ladder or
Step Stool Tape Measure
Eye Protection
7/16" Wrench
(11 mm)
Stud/Joist
Finder
(optional)
7/16"(11 mm)
Socket Wrench
or Nut Driver
Tools Required:
IMPORTANT-Read through entire instructions before beginning any installation.
OR
44-Hex Bolts 5/16" X ½"
(8mm x 13mm)
48-Hex Locking Nuts 5/16"(8mm)
M
Identify and organize all parts before beginning installation. If any parts are missing, contact at Diamond Storage Concepts 1-800-990-6003.
2-Left Facing Downrods with Feet
2-Right Facing Downrods with Feet
2-48" Support Frames
2-96" Support Frames
O
8-Lag Screws X 3" (6mm x 76mm) ¼"
4-Clamps 4-Hex Bolts 5/16" x 1.5" (8mm x 19mm)
4-Hex Bolts ¼" x ½" (6mm x 13mm) 4-Hex Nuts Serrated
¼" (6mm )
2-Diagonal Supports
Joists
24" to 42"
apart
