Tilt loose 96" support
frames to allow grids
to lay on directly on ledge.

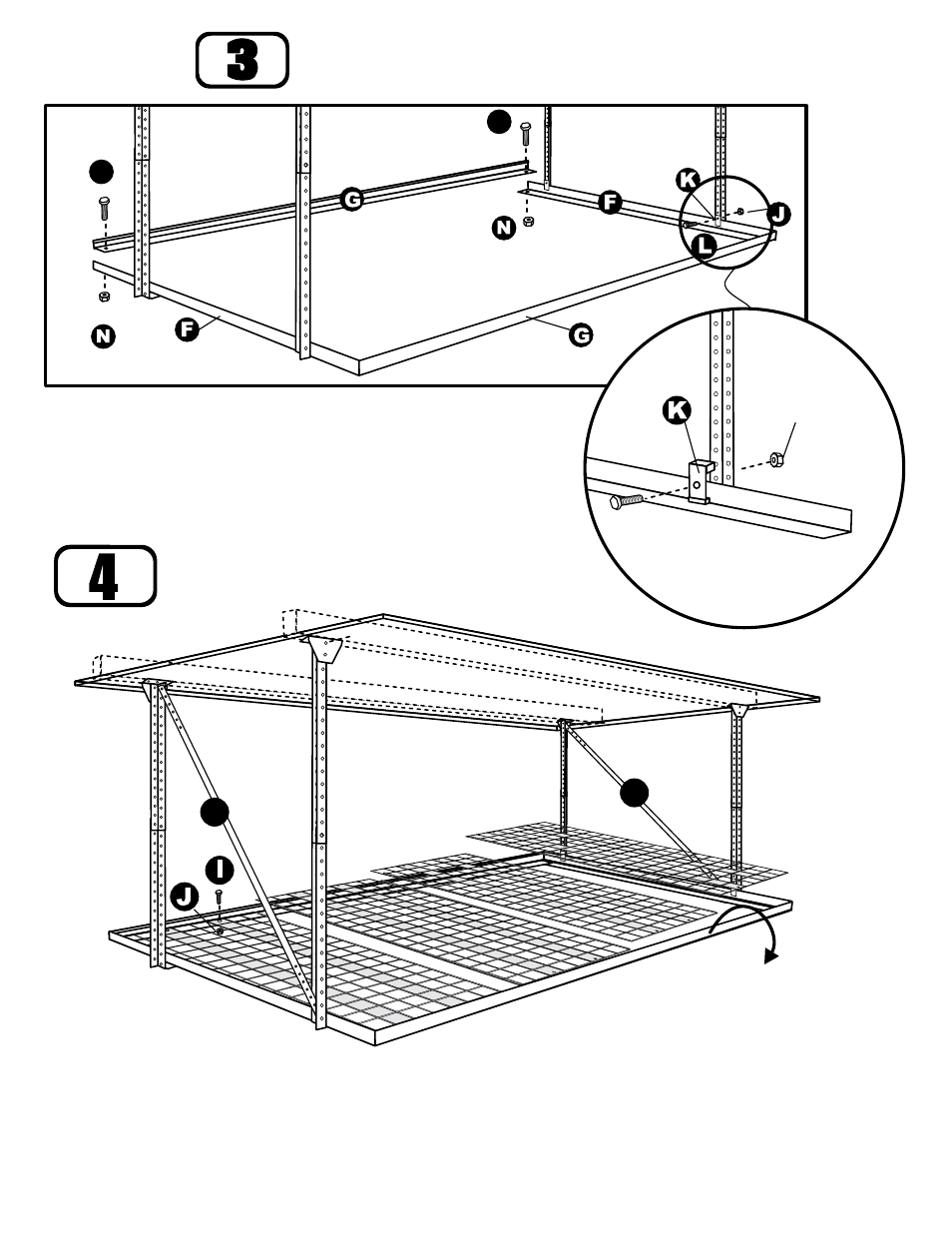

PLACE AND ATTACH GRIDS
ATTACH SUPPORT FRAMES
M
M
Place two 48" Support Frames(F) on top of feet and using Clamps(K)
with thick part up, fasten to downrod using Hex Bolts(L) and Nuts(J).
Make sure ends of Support Frames(F) are even and square. Place 96"
Support Frames(G) on top of 48" Support Frames (F) and loosely bolt
together in each corner using ¼" Hex Bolts(M) and Nuts(N) using a
7/16" wrench or nut driver. Do not tighten until after placing grids.
Lay 4 Wire Grids(A) evenly on 96" Support Frames with grid stiffeners on the underside. Tilt loose 96" Support
Frames if necessary. Tighten bolts in each corner of support frames using ¼" Hex Bolts(M) and Nuts(N) wth a
7/16" wrench or nut driver. Fasten Wire Grids(A) as shown using 4 Hex Bolts(I) and Hex Nuts(J) for each grid.
Attach Diagonal Support Brackets(O) after making sure unit is level and square.
Make sure that all nuts, bolts and screws are tight. Do not load with more than 600 lbs, evenly distributed.
