Hybrid Racing WaveTrac LSD - Manual (Page 7)

7
Install Guide

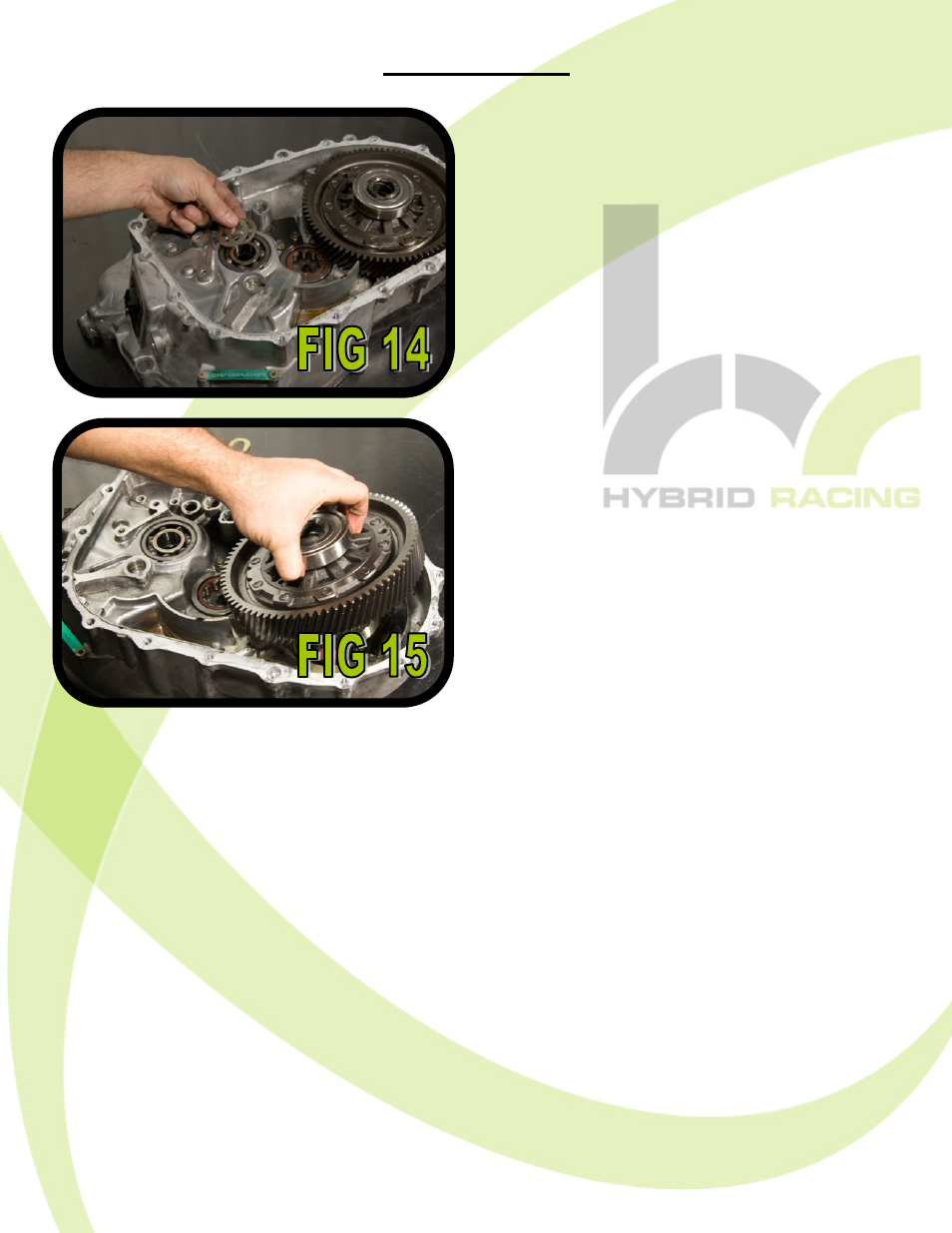

STEP 14:
Remove the 28mm spring washer and
the 28mm washer that were sand-
wiched between the mainshaft and the
mainshaft bearing.
Reassembly Tips:
The cone-shaped spring washer
should be installed first, with the nar-
row end against the transmission.
STEP 15:
Lift the differential assembly out of the
transmission.
Reassembly Tips:Drop it
back in, and make sure it's facing the
right direction.
STEP 16:
Remove the 10 bolts that attach the final drive to the differential. Note that the bolts have a left hand
thread and should also be removed in a criss cross pattern.
Reassembly Tips: First hand tighten all
10 bolts, then torque each bolt to 89 ft-lbs (121 N-m).
STEP 17:
The bearings on the differential can be removed using a standard commercial bearing puller. If you
don't have access to one of these, you can just purchase new carrier bearings (part#
91005-PPS-003 )
from us here at Hybrid Racing. Reassembly Tips: Honda uses a special tool and a hammer for
pressing carrier bearings back onto differentials. However, the tool can be substituted with pipe that
is the right diameter to rest on the bearing's inner race. Do not apply pressure to the outer race, as it
will destroy the bearing by forcing it apart.
Reassembly :
Simply follow the disassembly instructions in reverse. There are a few added steps required dur-
ing reassembly. These steps are listed in red.
