Hybrid Racing WaveTrac LSD - Manual (Page 5)

5
Install Guide

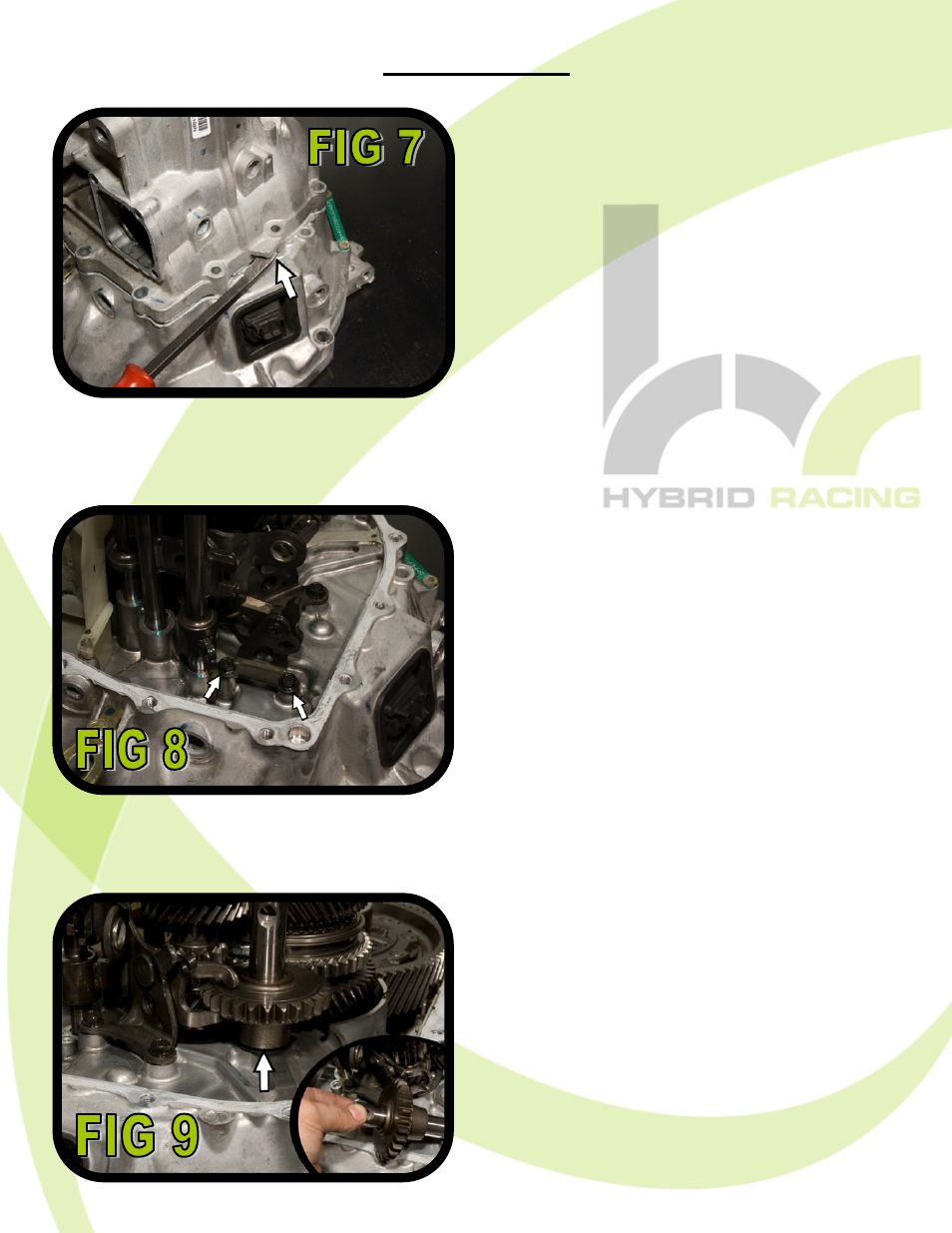

STEP 7:
Using a pry bar, gently pry the two
halves of the transmission case apart.
Lift and remove the upper half of the
case. Before moving on, use a razor to
scrape off the HondaBond that was
sealing the joint where the two halves
of the case met.
Reassembly Tips: Re-
install the 3 14x20mm dowel pins that
align the transmission case. Before
mating the two halves of the transmis-
sion back together, apply Honda Bond
to both mating surfaces. Make sure to
apply the Honda Bond around each
bolt hole, to avoid possible leaks. Also,
make sure to place the 72mm snap
ring back onto the secondary shaft be-
fore putting the case back together.
The two halves will not seal completely
until the 72mm snap ring has been put
back in place.
STEP 8:
Unbolt and remove the reverse lock-
out cam using a 10mm socket. This
only applies to the 5 speed model as is
shown here. 6 speed models do not
have this part.
Reassembly Tips: The-
se should be torqued to 11 lb-ft (15 N-
m).
STEP 9:
Remove the reverse gear idler and re-
verse gear shaft.
