“Single Sided” parking stand assembly

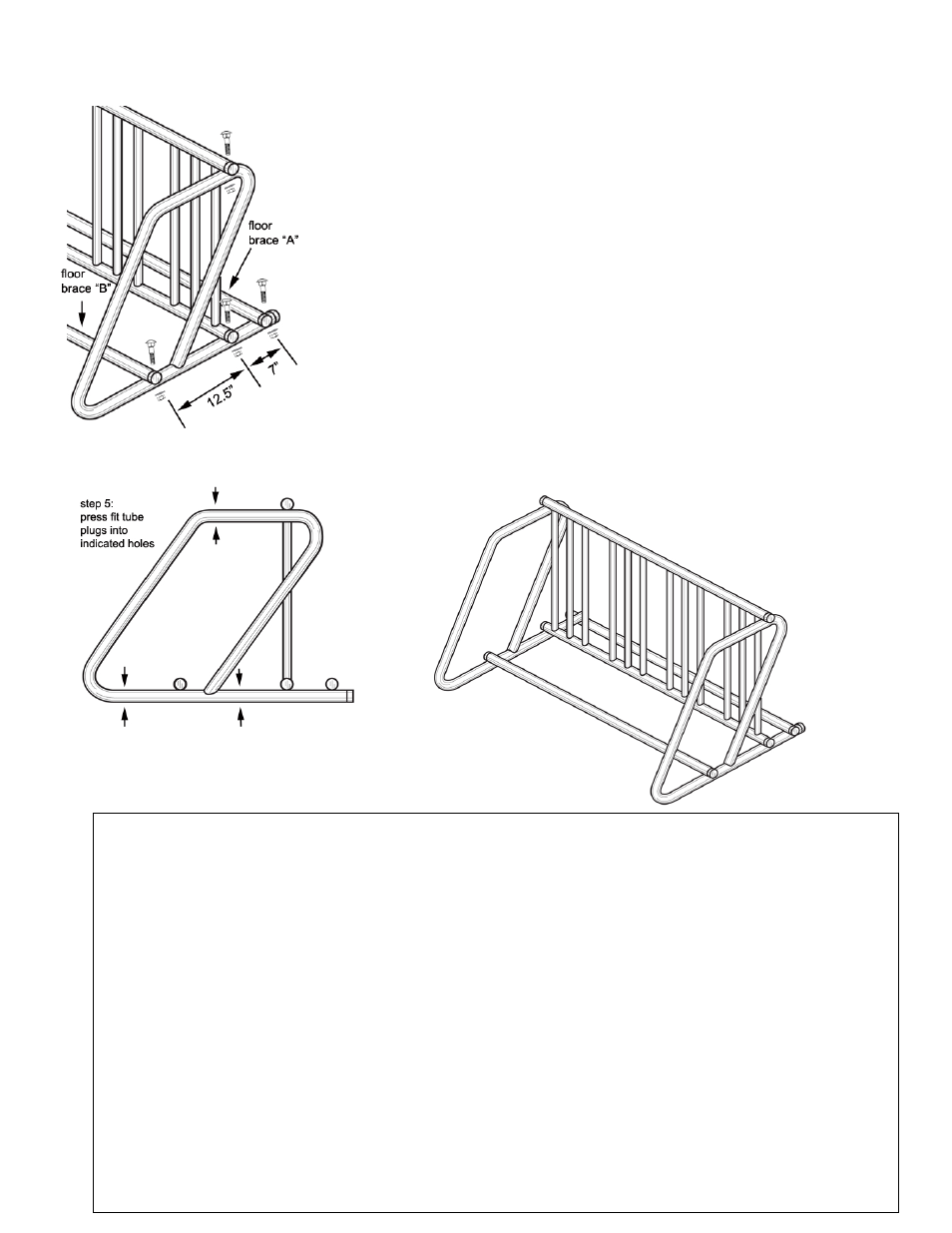

Step 1: Starting with one side, align the bike grid to the side rail as
shown in Fig. 2a. Be sure to use the correct holes. Insert bolts as
shown, then attach washers and nuts to bolt. Finger-tighten nuts.

Step 2: Align floor brace “A” to the rear hole of the side rail as
shown. Insert bolts as shown, then attach washers and nuts to bolt.
Finger-tighten the nuts. Repeat for floor brace “B” using the correct
hole. Note there are 3 unused holes in the side rail.

Step 3: Attach the other side rail to the other end of the floor braces
and bike grid. Insert bolts and attach washers and nuts.
Be sure to use the correct holes!

Step 4.Check that the parking stand is straight, then tighten all nuts
securely using the wrench. Assembled parking stand should look like
Fig. 2c. (note: model PS8 is shown in Fig. 2c).

Step 5: Insert tube plugs into unused holes as indicated in Fig. 2b.
