Hollywood Racks HR135 Tow N Go (3 bike version) User Manual
Page 2

.
/4” shown)

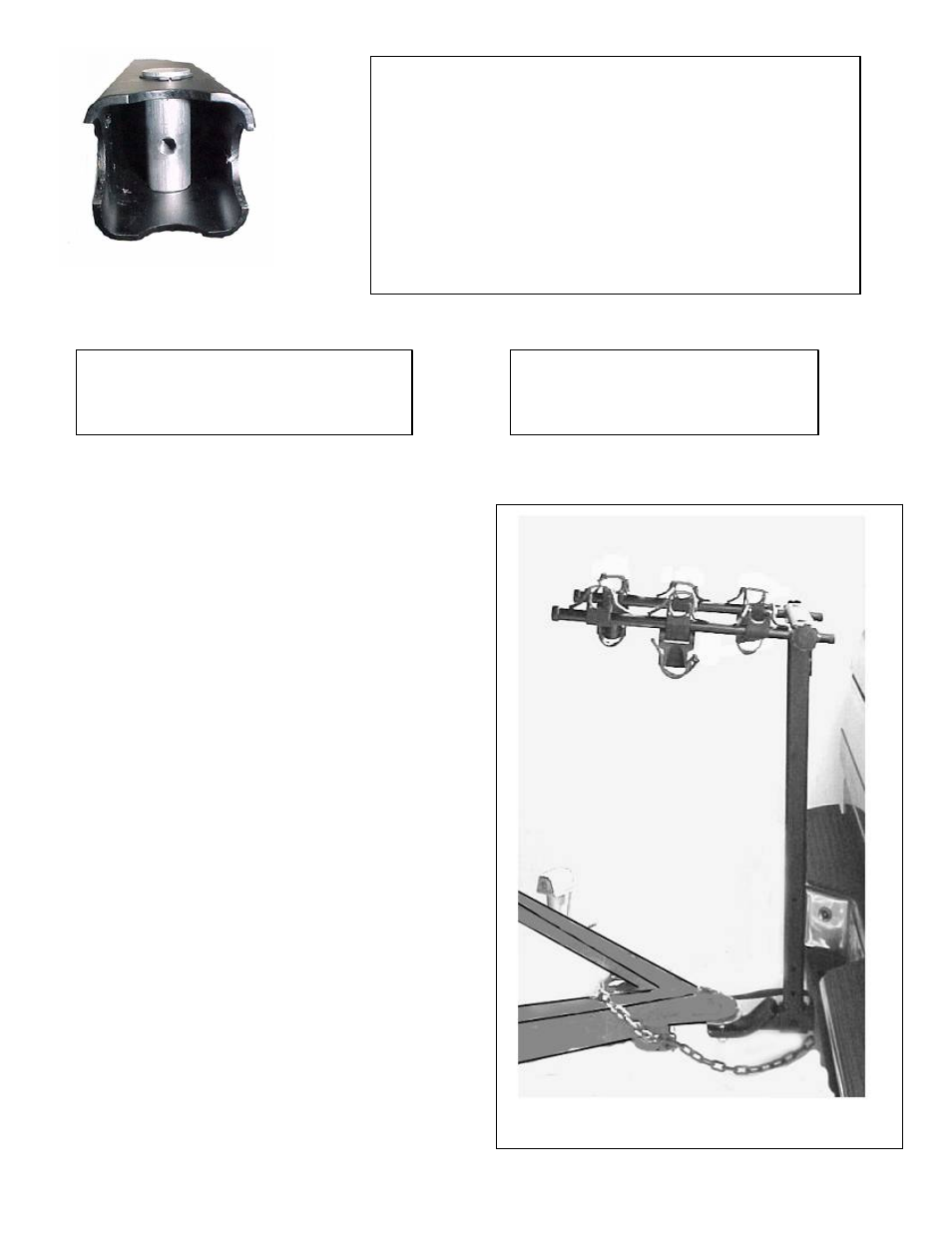

Fig. 2
Vertical Cylinder
FIG. 4 Driver’s Side Support Arm
FIG. 3 Passenger’s Side Support Arm
Installing the support arms:
Insert the knob through the spacer as shown in Fig. 1 (the
knob should be against the flat end of the spacer block).
Align the threaded hole in the vertical cylinder (fig. 2) so that
it faces out. You can rotate the vertical cylinder using a coin
or flat blade screwdriver in the slot at the top of the vertical
cylinder. Insert the knob through the support arm, and thread
the knob into vertical cylinder inside the main top horizontal
tube. Repeat for the Driver’s side arm.
Installation Instructions:
1. Install your trailer hitch receiver tube through
the base of the rack (at the bottom of the main
beam.
2. Locate the base as far forward as possible.
3. Using Allen wrench supplied tighten the set
screws on the base unit until snug.
Installing your bikes on the Traveler rack:
If the support arms are not already in a horizontal
position, back off the knob at the end of the rack’s
support arms, pull out the support arms and
rotate them into the horizontal position. Retighten
the knobs securely.
