mounting the engine

Most model airplane designs make provision for an engine

mount. It is extremely important that the engine mount be

securely attached to the airplane’s firewall and that the engine

is securely attached to the engine mount. Follow the instructions

included with the airplane for mounting the engine. The engine

should be fastened in place to the firewall with 4 screws. Use

¼” or 6mm screws. If you decide to fasten the engine using a

flexible motor mount, always choose parts with enough solidity

and strength. Make sure all screws are tightened and regularly

check that they remain tight and in good condition.

Important:  Air is necessary to cool the engine during operation.

Make sure that sufficient air circulation through the cowling is

provided.

Throttle Linkage 

Carefully attach the throttle linkage to the engine using a ball

link on the carburetor. Make sure that the linkage is free to

operate from low throttle to high throttle and confirm that low

throttle setting on the transmitter closes the carburetor butterfly

to the low idle position. Adjust the length of the pushrod until

full throttle opens the throttle fully, while low-throttle, low trim

completely closes the butterfly.

Attaching the Fuel Lines

Use medium gasoline-compatible fuel line in the fuel tank as

well as the supply line to the engine.

Selecting a Suitable Propeller

The Evolution

®

116GX2 has been designed to generate maximum

power at 5800–6300 rpm, according to the type of exhaust used.

If you wish to utilize the maximum power output, choose a

propeller, which will allow the engine to reach these revolutions,

or slightly lower revolutions. (The engine will unload in the air

depending on the aircraft speed and propeller selected.)

Suggested Propeller Dimensions

Two-blade propellers:

28x10-14, 30x10-12, 32x10

We do not recommend using propellers that allow the engine to

reach more than 7500 rpm on the ground.

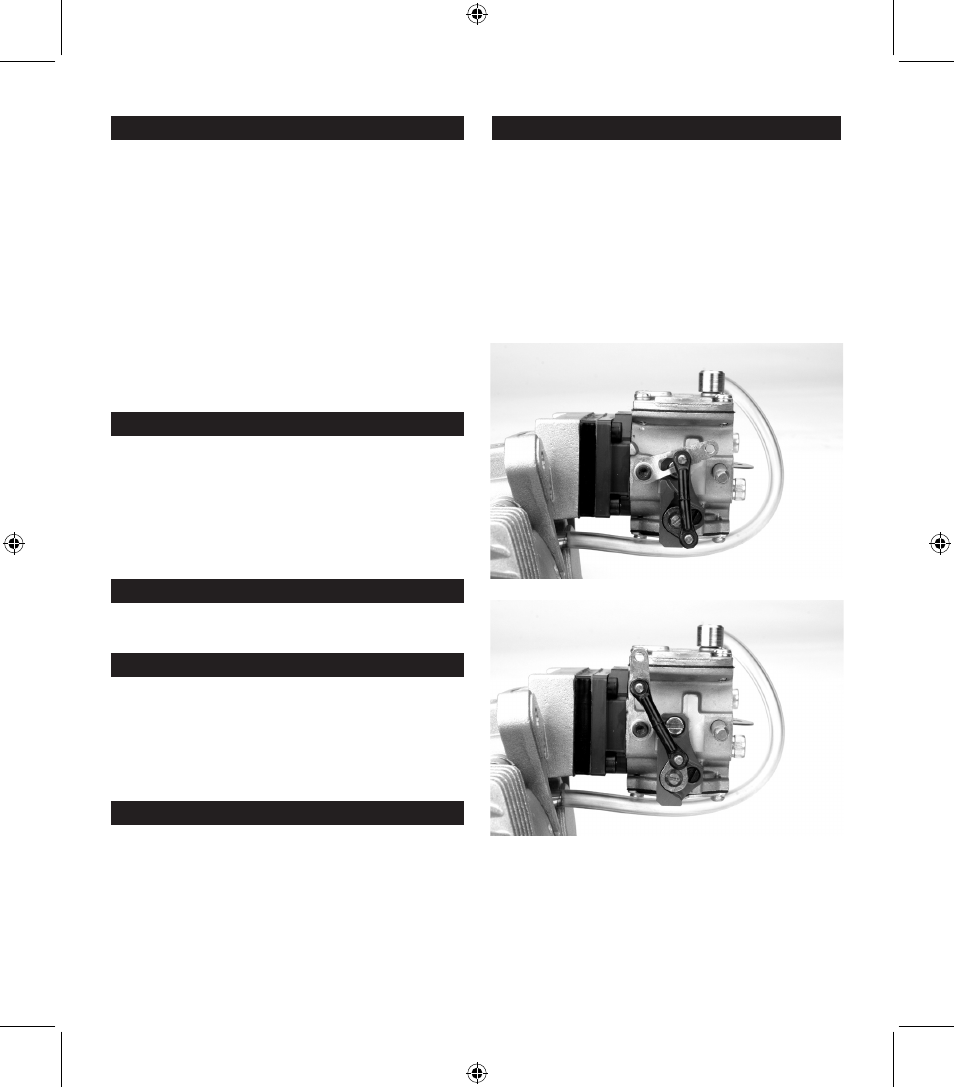

control Jet System

Your engine is equipped with a unique system enabling improved

acceleration from idle to high speed. This system allows the

mixture to be controlled while the throttle valve is opening. It

will lean the mixture at low rpm and at idle. Conversely the

mixture will become richer as the throttle is opening. This system

provides better acceleration to high speed and maintains a

stable idle.
This system was developed for the Evolution 116cc engine. It

is recommended that you do not change the mixture control

leverage.

Idle

High Throttle
