Evolution Engines EVOE116GX2 - Manual (Page 10)

Programming Auto-choke Ignition System and Pre-Ignition curve
9
Warnings
Always do a range check with the engine running before the first flight. Use the ignition only in dry conditions. Use recommended number and type of cells for each ignition
type. This product is specified for RC engines only. Do not remove the resister cover if the ignition is on.
WARnIng: ReveRSAL oF PoLeS on WIRe To BATTeRy WILL DeSTRoy THe IgnITIon.
WARnIng: DAngeR oF eLecTRIc SHock (voLTAge oveR 20,000v).
WARnIng: The manufacturer is not responsible for damages caused by not following the manual and/or use with anything other than RC engines.
WARnIng: Because of possible interference, ignition and accumulators should be placed at least 25 cm from the receiver.
cAuTIon: Use a standard servo with a current draw of less than 1.5A to operate the choke. Servos with a current draw greater than 1.5A, such as micro servos, digital servos
and high-torque servos, consume more current than the ignition system's circuitry is designed to provide. If the servo you've connected quivers or won't work at all, its current
draw is probably too high.

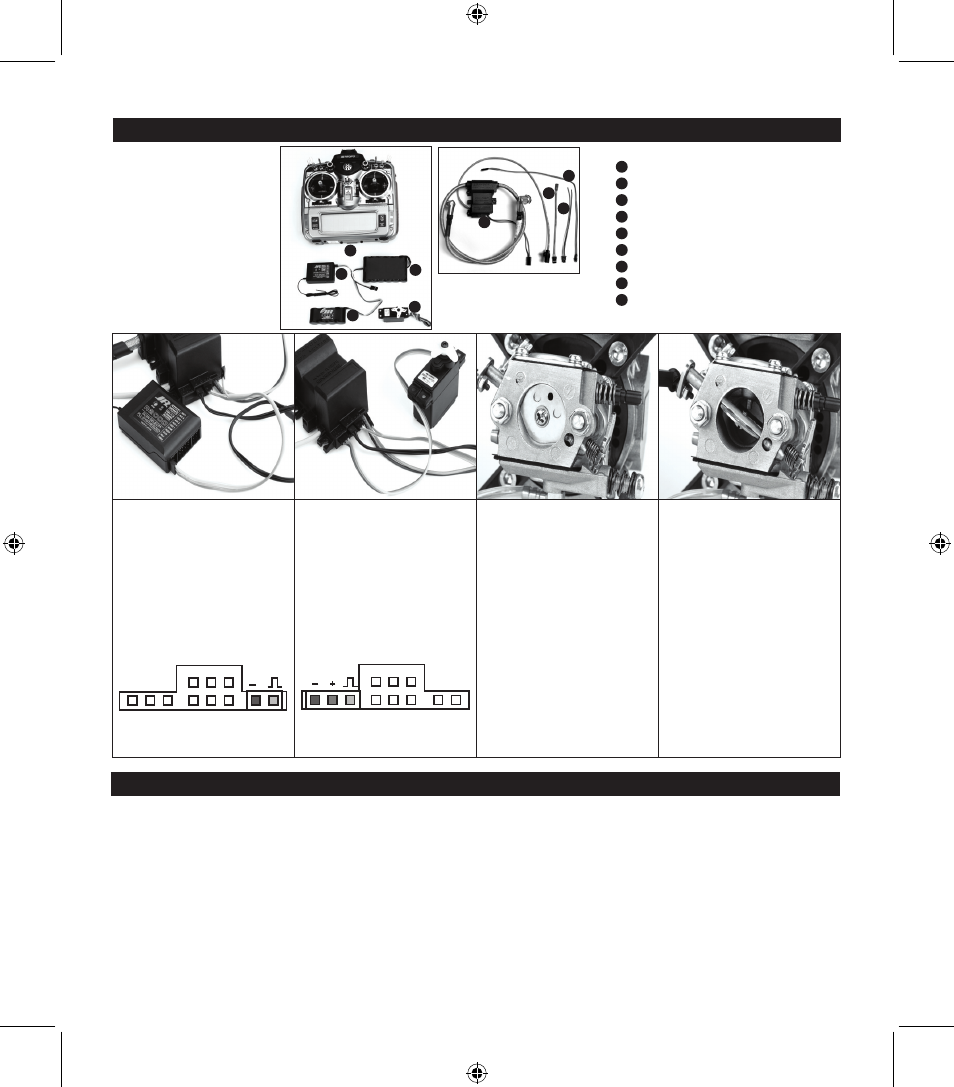

1 Ignition
2 LED
3 Programming cable
4 Ignition battery
5 Transmitter
6 Receiver
7 Receiver battery
8 Servo
9 Power cable
7
2
3
6
8
Short Silencer choke Settings
(e.g., Pitts Style)
1) Using the throttle stick, close the choke
until it closes completely. Wait until the LED
blinks once, indicating the ignition has
memorized the “closed choke” position.
2) Using the throttle stick, open the choke
valve until it is all the way open.
Wait until the LED blinks once, indicat-
ing the ignition unit has memorized
the “choke open” position.
3) Move the choke to the closed position and
hold there for an additional 5 seconds; the
LED will blink slowly, indicating that the Short
Silencer Pre-ignition program has been set.
4) Disconnect the receiver.
C onnect the auto-choke servo to
the ignition box (black or brown to
“–” pin).
S witch on your transmitter.
C onnect receiver battery with the
receiver.
C onnect ignition battery to the ignition.
D isconnect the ignition system’s
battery.
C onnect the LED indicator.
C onnect the throttle potentiometer
outlet to the throttle channel on your
receiver.
9
PRog SeRvo
1
5
4
Long Silencer choke Settings
(e.g., canister or Tuned Pipe)
1) Using the throttle stick, close the choke
until it closes completely. Wait until the
LED blinks once, indicating the ignition has
memorized the “closed choke” position.
2) Using the throttle stick, open the choke
valve until it is all the way open.
Wait until the LED blinks once, indicat-
ing the ignition unit has memorized
the “choke open” position.
3) Leave the choke open for an additional 5
seconds, and the LED will blink rapidly,
indicating that the Long Silencer
Pre-ignition program has been set.
4) Disconnect the receiver.
