Evolution Engines EVOE20GX - Manual (Page 7)

EN
7
Adjusting the Throttle Opening
1. Lower the throttle and center the throttle
trim.
2. Adjust the length of the throttle linkage
until the throttle is open 1mm.
3. Move the throttle stick up to confirm the
throttle opens. If the throttle does not
open, reverse the throttle channel in your
transmitter.
4. Move the throttle stick and throttle trim
down to confirm the throttle closes.
5. If you reversed the throttle channel in your
transmitter and you are using a 2.4GHz
radio system, you must re-bind your radio
system to set the correct failsafe position.

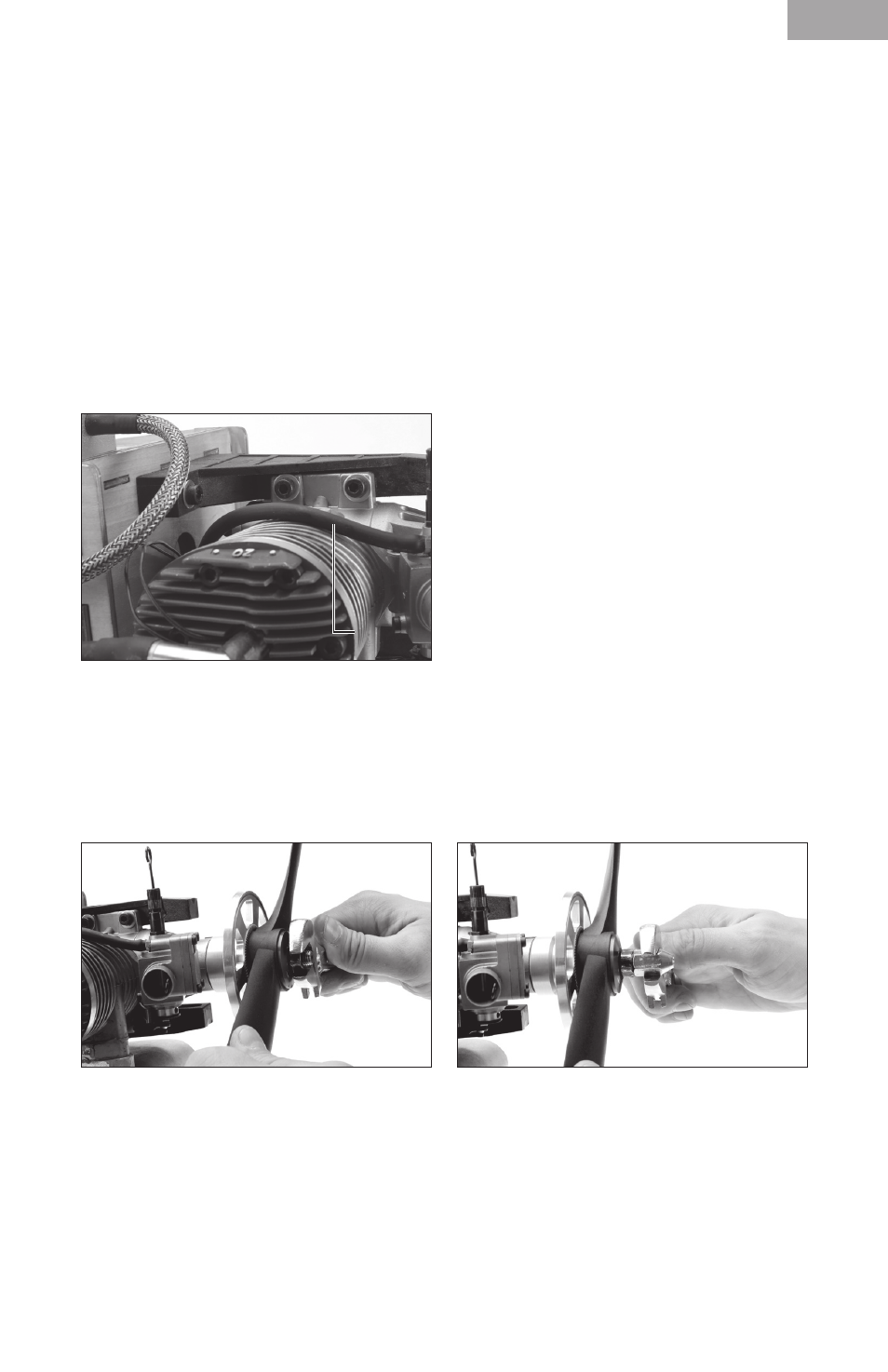

Fuel Line
1. Connect medium diameter fluoroelastomer
tubing fuel line to the carburetor and the
fuel tank supply line.
2. Connect medium diameter FKM fuel line
to the muffler pressure nipple and the fuel
tank vent line.
RECOMMENDED PROPELLERS
15 x 6–17 x 8 (16 x 6 has tested to be the
best performer with this engine, although
the performance is very good throughout the
recommended range)
1. Remove the prop nut and prop washer from
the crankshaft.
2. Install the spinner backplate, followed by
the propeller, prop washer and prop nut.
3. Cover the propeller with a cloth and use an
adjustable wrench to tighten the prop nut.
4. Install the spinner cone. Make sure the
spinner cone is not touching the propeller.
Trim the propeller opening if necessary.
5. Tighten the spinner screw(s) to secure the
spinner cone.
Attaching the Propeller and Spinner
Attaching the Fuel Lines
