Evolution Engines EVOE20GX - Manual (Page 6)

EN
6

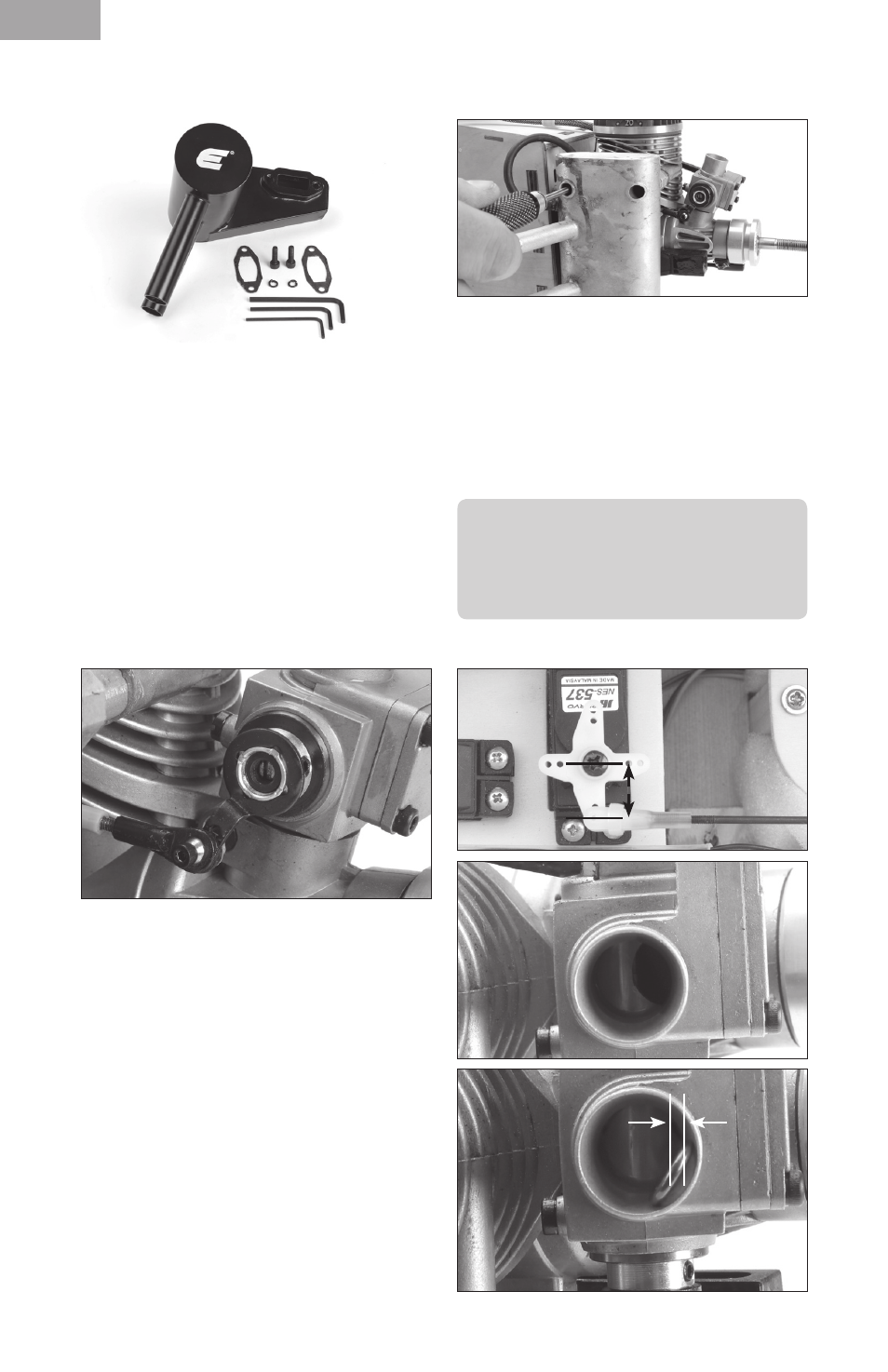

1. Use a secure method to attach the
throttle linkage to the throttle arm on the
carburetor.
2. Power on the transmitter and receiver.
3. Move the throttle stick to the middle stick
position.
4. Adjust the throttle arm so the arm is 90
degrees to the throttle pushrod.
5. Center the throttle servo. Install a servo arm
with a hole 11mm (7/16 in) from the center
of the arm.
6. Use a clevis to attach the throttle linkage to
the servo arm.
11mm
1.5mm
The muffler mounting accessory package
includes mounting screws (2), lock washers
(2), muffler gaskets (2) and L- wrenches (3).
Aftermarket muffler (BIS05610) shown.
Not included.
1. Put a lock washer on each of the muffler
screws. Push the muffler screws through
the muffler.
2. Align the muffler gasket with the exhaust
opening and the muffler mounting screws.
3. Tighten the muffler screws.
IMpORTANT: Tighten the muffler screws after
five tanks of fuel. The muffler screws may
loosen from heat and vibration.
After the third tightening, no further muffler
loosening should occur.
Connecting the Throttle Linkage
Installing the Muffler
