ETS-Lindgren HI-3603 VLF Survey Meter User Manual
Page 42
HI-3603 VDT/VLF Survey Meter
© ETS-Lindgren, August, 2005
Revision E, Part # H-600042
42
Determining the RMS time derivative of the magnetic field
strength is accomplished by simply dividing the indicated RMS
magnetic field strength by the shortest transition time obtained
from the oscilloscope measurement procedure.
The waveform of the electric field obtained from the same VDT is
shown for comparison in Figure 14.

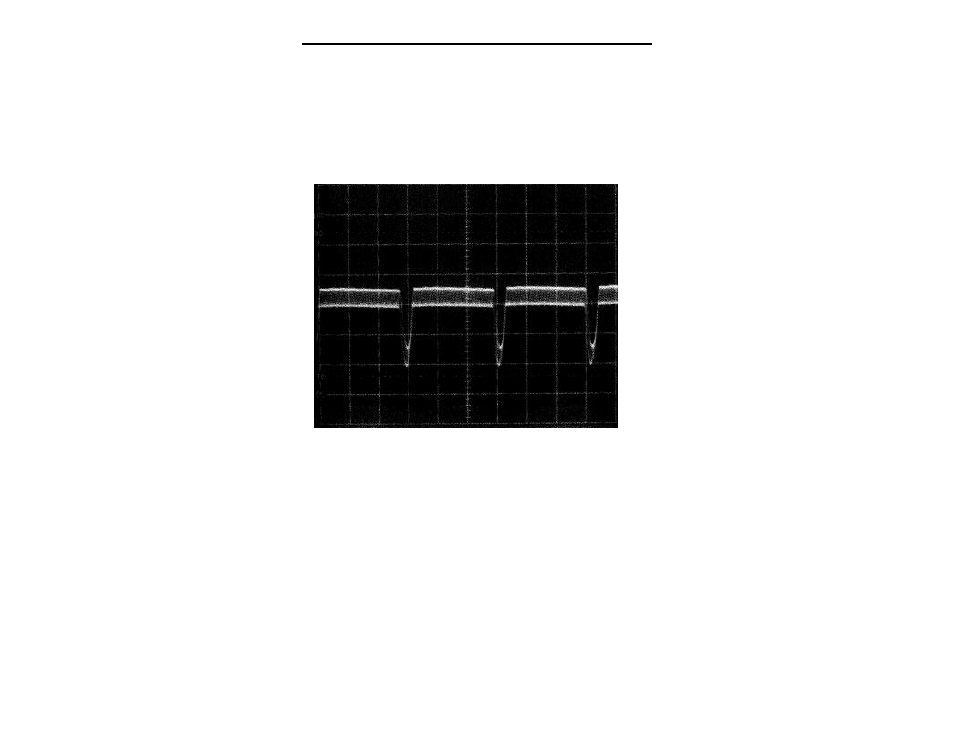

Figure 14: Monitored electric field waveform of same VDT
as used in Figure 13 observed with an oscilloscope
connected to the preamplifier output jack.
